Specifications
Agricultural Tires 18.4-30 18.4-34 18.4-38 20.8-38 Tractor Tires* Bias Agricultural Tires
* High quality, competitive pricing

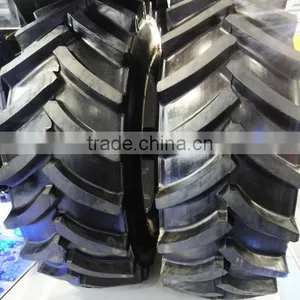

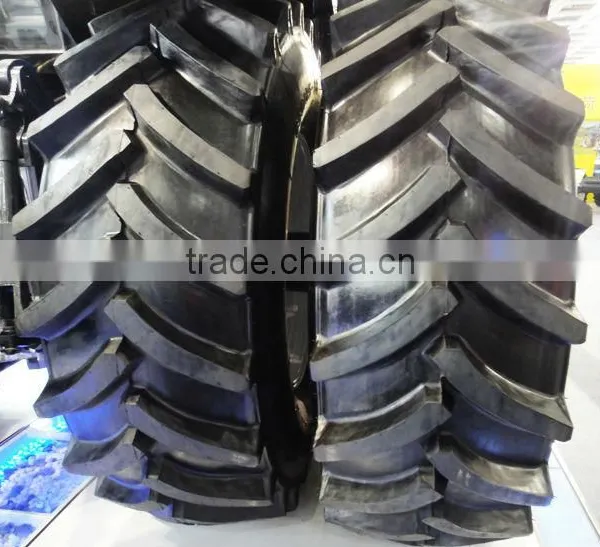

Agricultural Tires 18.4-30 18.4-34 18.4-38 20.8-38 Tractor Tires
* Bias Agricultural Tires
* High quality, competitive pricing
* 50% and above natural rubber, best imported natural rubber
* Best tire design engineer
* Good traction, good gribbing on all weather
* Good self cleaning performance
| SIZES | PATTERN | STANDARD RIM | SECTION WIDTH (mm) | OVERALL DIAMETER (mm) | RELATIVE PRESSURE (Kpa) | MAX LOAD (kg) | QUANTITY/40'HQ |
| 4.00-7-4 | R1 | 3.00D | 110.00 | 390.00 | 250.00 | 250.00 | 4800 |
| 4.00-8-4 | R1 | 3.00D | 110.00 | 420.00 | 250.00 | 280.00 | 4500 |
| 4.00-10-6 | R1 | 3.00D | 110.00 | 475.00 | 250.00 | 210.00 | 4300 |
| 4.00-12-6 | R1 | 3.00D | 110.00 | 570.00 | 400.00 | 395.00 | 4000 |
| 4.00-14-6 | R1 | 3.00D | 110.00 | 640.00 | 360.00 | 270.00 | 3800 |
| 4.00-16-6 | R1 | 3.00D | 110.00 | 640.00 | 460.00 | 300.00 | 3500 |
| 4.50-10-6 | R1 | 3.00D | 120.00 | 510.00 | 250.00 | 440.00 | 3000 |
| 4.50-19-6 | R1 | 3.00D | 115.00 | 710.00 | 340.00 | 445.00 | 2500 |
| 5.00-10-6 | R1 | 3.00D | 140.00 | 507.00 | 250.00 | 330.00 | 2500 |
| 5.00-12-6 | R1 | 4.00E | 145.00 | 600.00 | 300.00 | 370.00 | 2500 |
| 5.00-14-6 | R1 | 4.00E | 145.00 | 670.00 | 250.00 | 440.00 | 2500 |
| 5.00-15-6 | R1 | 4J | 140.00 | 665.00 | 420.00 | 465.00 | 1550 |
| 6.00-16-6 | R1 | 4.00E | 160.00 | 740.00 | 340.00 | 560.00 | 1100 |
| 6.00-16-6 | R1 | 4.50E | 165.00 | 745.00 | 250.00 | 495.00 | 750 |
| 6.50-16-6 | R1 | 5.00F | 165.00 | 830.00 | 250.00 | 565.00 | 600 |
| 6.50-20-8 | R1 | 5.00F | 165.00 | 830.00 | 250.00 | 500.00 | 650 |
| 7.50-16-8 | R1 | 5.50F | 205.00 | 810.00 | 370.00 | 870.00 | 720 |
| 10.00-16-8 | R1 | W8L | 275.00 | 910.00 | 280.00 | 1190.00 | 320 |
| 11.00-16-8 | R1 | W10L | 315.00 | 970.00 | 250.00 | 1320.00 | 260 |
| 7.50-16-8 | R1 | 5.50F | 205.00 | 810.00 | 210.00 | 650.00 | 520 |
| 7.50-16-8 | R1 | 5.50F | 195.00 | 890.00 | 300.00 | 750.00 | 620 |
| 8.3-20-8 | R1 | W7 | 210.00 | 950.00 | 270.00 | 970.00 | 350 |
| 8.3-24-8 | R1 | W7 | 210.00 | 1050.00 | 270.00 | 1135.00 | 295 |
| 9.5-24-8 | R1 | W8 | 240.00 | 1150.00 | 240.00 | 1315.00 | 212 |
| 11.2-24-8 | R1 | W10 | 285.00 | 1205.00 | 210.00 | 1465.00 | 192 |
| 11.2-28-8 | R1 | W10 | 285.00 | 1205.00 | 240.00 | 1305.00 | 160 |
| 11-32-8 | R1 | W10 | 305.00 | 1360.00 | 140.00 | 100.00 | 104 |
| 11-32-10 | R1 | W10 | 305.00 | 1460.00 | 160.00 | 1080.00 | 104 |
| 12.4-24-8 | R1 | W11 | 315.00 | 1160.00 | 230.00 | 1415.00 | 200 |
| 12.4-28-8 | R1 | W11 | 315.00 | 1315.00 | 200.00 | 1785.00 | 135 |
| 12-38-10 | R1 | DW11 | 330.00 | 1575.00 | 140.00 | 1570.00 | 95 |
| 13.6-24-8 | R1 | W11 DW12 | 345.00 | 1210.00 | 250.00 | 1790.00 | 150 |
| 13.6-28-8 | R1 | W12 | 345.00 | 1310.00 | 250.00 | 1910.00 | 143 |
| 13.6-38-10 | R1 | W12 | 345.00 | 1710.00 | 230.00 | 2675.00 | 66 |
| 14.9-24-6 | R1 | W13 | 378.00 | 1265.00 | 146.00 | 1518.00 | 165 |
| 14.9-24-12 | R1 | W13 | 378.00 | 1265.00 | 230.00 | 1990.00 | 160 |
| 14.9-24-10 | R1 | W13 | 378.00 | 1360.00 | 180.00 | 1760.00 | 160 |
| 14.9-28-12 | R1 | W13 | 378.00 | 1365.00 | 230.00 | 2120.00 | 95 |
| 14.9-30-10 | R1 | W13 | 378.00 | 1500.00 | 230.00 | 2190.00 | 112 |
| 15.5-38-10 | R1 | W14L | 395.00 | 1570.00 | 230.00 | 2320.00 | 90 |
| 16.9-24-10 | R1 | W15L | 430.00 | 1335.00 | 200.00 | 2230.00 | 88 |
| 16.9-28-10 | R1 | W15L | 430.00 | 1435.00 | 200.00 | 2380.00 | 88 |
| 16.9-30-10 | R1 | W15L | 430.00 | 1590.00 | 200.00 | 2455.00 | 90 |
| 16.9-34-10 | R1 | W15L | 430.00 | 1585.00 | 200.00 | 2605.00 | 77 |
| 16.9-34-10 | R1 | W15L | 430.00 | 1670.00 | 200.00 | 2605.00 | 56 |
| 18.4-30-10 | R1 | W16L | 476.00 | 1550.00 | 180.00 | 2815.00 | 80 |
| 18.4-30-12 | R1 | W16L | 476.00 | 1550.00 | 230.00 | 3180.00 | 80 |
| 18.4-30-10 | R1 | W16L | 476.00 | 1550.00 | 280.00 | 3380.00 | 80 |
| 18.4-34-10 | R1 | W16L | 476.00 | 1655.00 | 180.00 | 2990.00 | 64 |
| 18.4-34-12 | R1 | W16L | 476.00 | 1655.00 | 230.00 | 3375.00 | 64 |
| 18.4-38-10 | R1 | W16L | 476.00 | 1755.00 | 230.00 | 3575.00 | 60 |
| 18.4-38-14 | R1 | W16L | 476.00 | 1755.00 | 260.00 | 3650.00 | 60 |
| 18.4-38-10 | R1 | W15L | 476.00 | 1810.00 | 180.00 | 3165.00 | 60 |
| 20.8-38-10 | R1 | W18L | 528.00 | 1835.00 | 160.00 | 3475.00 | 46 |
Agricultural Tires on international Tyre exhibition:
Welcome to visit our factor.
