TS5823L 5.8GHz 40CH 200mW 5G8 Mini FPV Transmitter

TS5823L 5.8GHz 40CH 200mW 5G8 Mini FPV Transmitter thumbnail-1
TS5823L 5.8GHz 40CH 200mW 5G8 Mini FPV Transmitter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use:
Other, Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China
Brand Name:
Correa
Contact Supplier Request Quote Chat Now
Shenzhen Correa Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use Other, Vehicles & Remote Control Toys
Place of Origin Guangdong, China
Brand Name Correa
Model Number TS5823L

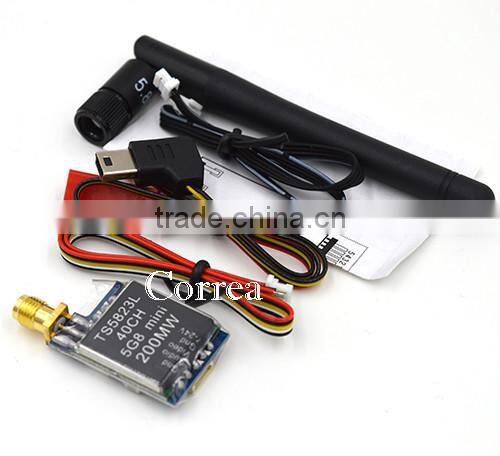

TS5823L 5.8GHz 40CH 200mW 5G8 Mini FPV Transmitter



With super tiny size and ultra lightweight, this TS5823 FPV audio video transmitter is suitable for small multirotors and super light air vehicles. It is also very suitable for DJI Phantom series.  As smaller than the thumb, the weight is 7.3 gram ONLY.



Specifications:

Modulate: Wideband FM Modulate
Video Format : NTSC/PAL
Output Impedance:50 Ohm
Output Power : 23-24dBm
Channel:40CH
Operating Voltage: 7V-24V
Supply Current : 190mA
Operating Temperature: -10~85°C
Video Band Width : 0~8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance : 75 Ohm
Audio Input Level : 0.5~2.0 Vp-p
Audio Input Impedance : 10K Ohm
Connector: SMA Female(outer hole),RP-SMA Female(outer needle)
Antenna Connector: SMA Male(Inner needle),RP-SMA Male(Inner hole)
Dimension: 40mm x 23mm x 8mm
Weight: 7.3g

TS5823L 5.8GHz 40CH 200mW 5G8 Mini FPV Transmitter

TS5823L 5.8GHz 40CH 200mW 5G8 Mini FPV Transmitter
