Specifications
1.widely useating is welcomed
3.customized size
4.good quality with reasonable price.

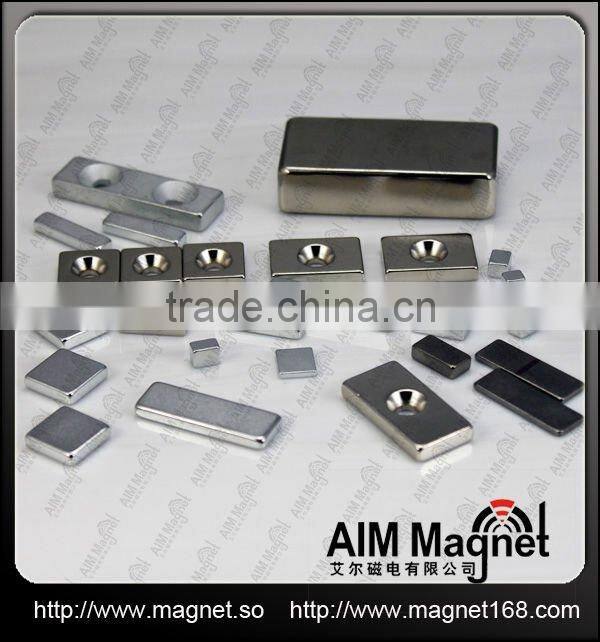

Manufactory Permanent Magnet Trade
1) Material: Sintered Neodymium-Iron-Boron;
2) Temperature: the max operation temp is up to 200 degree centigrade or 380 curie temperature;
3) Grade:N33-N52,33M-48M,33H-48H,30SH-45SH,30UH-38UH and 30EH-35EH;
4) Shape: according to customers's request ;
5) Size: according to customers' request;
6) Coating: Nikel
7) Application: sensors, motors, rotors, wind turbines,wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on;
Strong Sintered Neodymium Magnet
Disc:Max:diameter 202mm*45mm thickness---Min:diameter 1.5mm*0.5mm thickness
Ring:Max:Od202mm*Id182mm*thickness 45mm---Min:Od 3mm*Id1mm*3mm thickness
Block:Max:L200mm*W200mm*T45mm---Min:L0.5mm*W0.5mm*T0.5mm

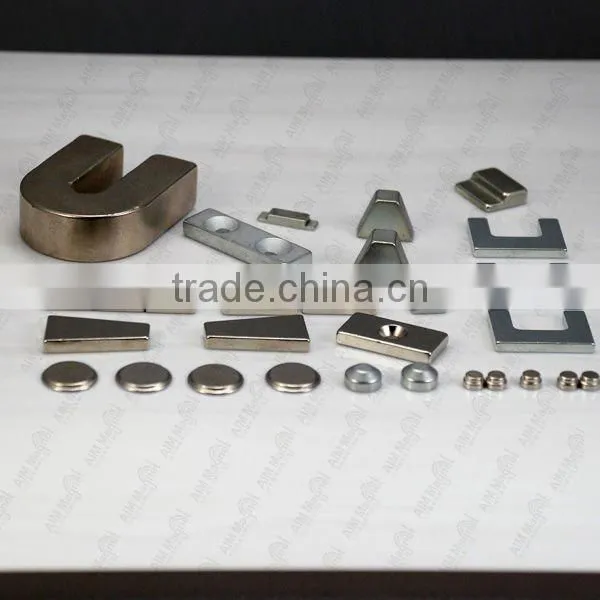

segment and other irregular shapes can be manufacture according to customer's sample or drawing.
Strong Sintered Neodymium Magnet
mainly comprised of neodymium ,iron and boron,is the third generation of the rare-earth permanent magnets,Sintered Ndfeb is the strongest permanent magnets in the world up to date,It has excellent properties of high remanence,coercivity,and Max.energy product.
Strong Sintered Neodymium Magnet grade
N35, N38, N40, N42, N45, N48, N50, N52(Max. Operational temperature: 80c)
N35M, N38M, N40M, N42M, N45M, N48M(Max. Operational temperature: 100c)
N35H, N38H, N40H, N42H, N45H, N48H, (Max. Operational temperature: 120C)
N33SH, N35SH, N38SH, N40SH, N42SH(Max. Operational temperature: 150c)
N28UH, N30UH, N33UH, N35UH, N38UH(Max. Operational temperature: Up to 180c)
N28EH, N30EH, N33EH, N35EH(Max. Operational temperature: Up to 200c)
N30AH, N33AH, N35AH(Max. Operational temperature: Up to 230c)
Strong Sintered Neodymium Magnet Outsanding product:
1)high performance:N52,N48M,48SH,42UH,38EH,33AH
2)high working temperature:the AH series with 40 k Oe super-high coervice force can replace SmCo magnets successfully.
3)high consistency:the cpk of Br and Hcj are much higher than 1.67 the consisitency of surface magnetic field and magnetic flux can be controlled with +/-1%
4)High Anti-corrosion:the sale spray test and humid heat test of the high anti-corrosion coating could be more than 1000 hours
5) low weight loss
PCT:130c ,humidity 100%,vapor pressure 2.7 bar.20 days,average low weight loss less than 2 mg/cm2
Pros: Very strong hold when contacting another magnet or plain iron, very difficult to pull away (easy to slide however).
Pretty strong hold between two of these even with a couple of mm in between.
Cons: Would like thicker (and more powerful) versions. Sure u can stack these together but sometimes it's not the same thing.
Other Thoughts: Good for attaching thick stacks of paper to refrigerators etc or pinching together papers or textiles.
Bottomline: This is the one if you need strong cost-effective magnets.
About us:
AIM Magnet Shenzhen Co.Lt have advanced automatic production equipments and testing instruments. We are gathering a group of experienced professional and technical personnel engaged in manufacturing magnetic materials and magnetic products. We have the relevant certification with ISO9001, which is international quality operation of management system certification. We also have environment certification (Reach, RoHS, etc.) with a variety of product. These are all in order to achieve excellent quality.
Company specialized in developing and producting all kinds of permanent magnetic materials and magnetic products, main products include :Neodymium, NdFeB magnet, heterosexual Ferrite magnet, Rubber magnet, Samarium Cobalt magnets ect. And many kinds of magnetic products such as hold magneticsuction cups, magnetic cups, magnetic filter, magnetic frame, magnetic bars, magnetic fridge magnet, magnetic bookmark.
Pictures of our factory:
