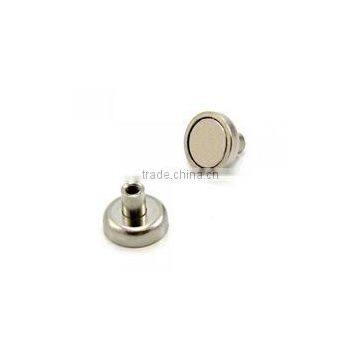

Super Strong Customiozed size Magnetic pot/Magnetic assembly

FOB Price

USD $0.018 - $20 / Piece

100 Pieces(Min.Order)

Supply Ability 1000 Ton / Tons per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	AIM
Model Number	N35/N38/N40/N42/N45/N48/N50/N52	Type	Permanent
Composite	NdFeB Magnet	Shape	Other, Block,Disc,Cylinder,Bar ect
Application	Industrial Magnet

Product Description

Super Strong Customiozed size Magnetic pot/Magnetic assembly

1. Professional Neodymium magnet manufacturer since 2006.

2. Factory direct price.

3. Samll quantity and samples are available.

Neodymium( NdFeB )magnets are the strongest type of rare earth magnet commercially available and are

manufactured in a wide range of shapes, sizes and grades. Shenzhen AIM Magnet Co.,Ltd was found in 2006

which is the role-model enterprise among magnets manufacturing industries in China. We own one stop complete industrial chain from raw material blank, cutting, electroplating and standard packing.

Material	Sintered Neodymium-Iron-Boron (NdFeB)
Size	Various kinds or according to customers' request
Shape	Disc/ Customzsed (block,disc,Cylinder, Bar, Ring, Countersunk, Segment, hook,cup, Trapezoid, Irregular shapes ,etc)
Performance	N35 /Customised (N33 N35 N38 N40 N42 N45 N48 N50 N52 …...)
Coating	Ni-Cu-Ni, Nickel / Customised (Zn,Ni-Cu-Ni,Ni,Gold, Silver, Copper, Epoxy, Chrome ,etc)
Size tolerance	±0.05mm for diamater/thickness, ±0.1mm for width/length
Magnetization	Thickness Magnetized, Axially Magnetized, Diametrally Magnetized, Multipoles magnetized, Radial Magnetized. (Customzied specific requirements magnetized)
Max. Working Temperature	Grade	Max. Operating Temperatures
	N35-N52	80°C (176°F)
	33M- 48M	100°C (212°F)
	33H-48H	120°C (248°F)
	30SH-45SH	150°C (302°F)
	30UH-40UH	180°C (356°F)
	28EH-38EH	200°C (392°F)
	28AH-35AH	220°C (428°F)
Applications	Neodymium(NdFeB) Magnet are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, printer, switchboard,packing box , loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, ect.

Super Strong Customiozed size Magnetic pot/Magnetic assembly

In order to quote you the best price,please provide us the following informations

Shape	Block/Rectangle/ Square	Disc/Round/ Cylinder	Ring/Countersunk
Dimension	L (?) x W(? ) xT(?)	D(?) x T(?)	OD(?) x ID(?) x T(?)
	For other shapes,please tell more in details or drawing would be much appreciated.
Coating	Zn,Nickel,Ni-Cu-Ni,Epoxy,Au,Silver or other ?
Working Temperature	Normal or High temperature ?

Surface	Coating	Thickness (Microns)	Color	Resistance
Passivation		0-1	Silver Grey	Temporary Protection
Nickel	Ni+Ni	10-20	Bright Silver	Excellent against Humidity
Nickel	Ni+Cu+Ni	10-20	Bright Silver	Excellent against Humidity
Zinc	Zn	8-20	Bright Blue	Good Against Salt Spray
Zinc	C-Zn	8-20	Shinny Color	Excellent Against Salt Spray
Tin	Ni+Cu+Sn	15-20	Silver	Superior Against Humidity
Gold	Ni+Cu+Au	10-20	Gold	Superior Against Humidity
Copper	Ni+Cu	10-20	Gold	Temporary Protection
Epoxy	Epoxy	15-25	Black, Red, Grey	Excellent Against Humidity & Salt Spray
	Ni+Cu+Epoxy
	Zn+Epoxy
Chemical	Ni	10-20	Silver Grey	Excellent Against Humidity
Parylene	Parylene	5-20	Grey	Excellent Against Humidity, Salt Spray. Superior Against Solvents, Gases, Fungi and Bacteria.

1.We are a professional magnet manufacturer since 2006.Our plating factory is the benchmark in the Shenzhen NdFeB industry.

2. No returned goods for five years in Europe market.

3. We provide magnets for a dozen of Fortune Global 500 enterprises such as Apple, Samsung, Lenovo etc.

4. In Europe market, 80% permanent magnets used for range hood are from AIM Magnet Co.,Ltd.

5.Our company is the main supplier of American top wine box.

6.With rich exporting experiences with neodymium magnets,we build supply chain to offer neodymium magnets with professional service.

We make customize size/any coating neodymium magnet. Any needs of neodymium magnets, please feel free to contact us AIM Magnet Co.,Ltd.

Your email or fax will be reply within 12 hours. Please fell free to call us at any time if there is any questions.
