Hard Ferrite Magnet

Hard Ferrite Magnet thumbnail-1

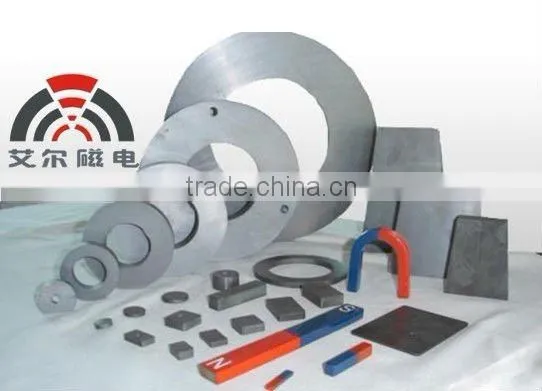

Hard Ferrite Magnet photo-1
US$ 0.01 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AIM Magnetic
Type:
Permanent
Contact Supplier Request Quote Chat Now
AIM Magnet Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name AIM Magnetic
Type Permanent
Composite Ferrite Magnet
Application Industrial Magnet

Specifications

1) Low cost
2) High working temperature
3) Good corrosion resistance

Hard ferrite magnets,  made by molding powder mixture of about 80% Fe2O3 and about 20% either BaCo3 or SrO3, is also called ceramic magnet. Along with deepening of research, some additives such as cobalt (Co) and lanthanum (La) are mixed together to improve the magnetic performance. The molded powder metallic green is sintered inside a temperature controlled furnace what is heated with electricity or coal. Though hard ferrite magnet is with low magnetic property, it is still a preferable choice to engineer in their design due to several factors: abundantly available raw material,the cheapest cost among permanent magnet family, low density, excellent stability of chemistry, high maximum working temperature and Curie temperature.



Character

Br

Remanence

Hcb

Coercive Force

Hci

Intrinsic Coercive force

 (BH) max

Max Energy Product

Grade

kGs

mT

kOe

kA/m

kOe

kA/m

MGOe

kJ/m3

Y10T

2.00-2.35

200-235

1.57-2.01

125-160

2.64-3.52

210-280

0.8-1.2

6.5-9.5

Y20

3.20-3.80

320-380

1.70-2.38

135-190

1.76-2.45

140-195

2.3-2.8

18.0-22.0

Y22H

3.10-3.60

310-360

2.77-3.14

220-250

3.52-4.02

280-320

2.5-3.0

20.0-24.0

Y23

3.20-3.70

320-370

2.14-2.38

170-190

2.39-2.89

190-230

2.5-3.2

20.0-25.5

Y25

3.60-4.00

360-400

1.70-2.14

135-170

1.76-2.51

140-200

2.8-3.5

22.5-28.0

Y26H

3.60-3.90

360-390

2.77-3.14

220-250

2.83-3.21

225-255

2.9-3.5

23.0-28.0

Y27H

3.70-4.00

370-400

2.58-3.14

205-250

2.64-3.21

210-255

3.1-3.7

25.0-29.0

Y30

3.70-4.00

370-400

2.20-2.64

175-210

2.26-2.77

150-220

3.3-3.8

26.0-30.0

Y30BH

3.80-3.90

380-390

2.80-2.95

223-235

2.90-3.08

231-245

3.4-3.7

27.0-30.0

Y30-1

3.80-4.00

380-400

2.89-3.46

230-275

2.95-3.65

235-290

3.4-4.0

27.0-32.0

Y20-2

3.95-4.15

395-415

3.46-3.77

275-300

3.90-4.21

310-335

3.5-4.0

28.5-32.5

Y32

4.00-4.20

40.0-420

2.01-2.38

160-190

2.07-2.45

165-195

3.8-4.2

20.0-33.5

Y33

4.10-4.30

410-430

2.77-3.14

220-250

2.83-3.21

225-255

4.0-4.4

31.5-35.0

Y35

4.00-4.10

400-410

2.20-2.45

175-195

2.26-2.51

180-200

3.8-4.0

30.0-32.0

Applications of Hard Ferrite Magnet.

  • DC brushless motors
  • Magnetic Resonance Imaging (MRI)
  • Magnetos used on lawnmowers and outboard motors
  • DC permanent magnet motors (used in cars)
  • Separators (separate ferrous material from non-ferrous)
  • Used in magnetic assemblies designed for lifting, holding, retrieving and separating
