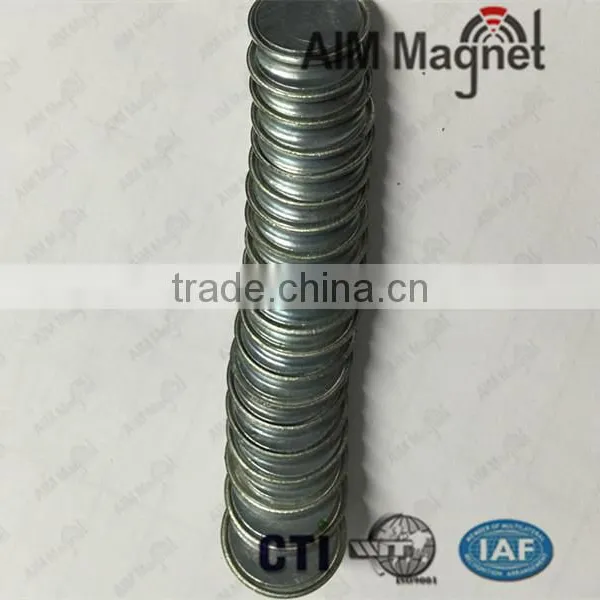

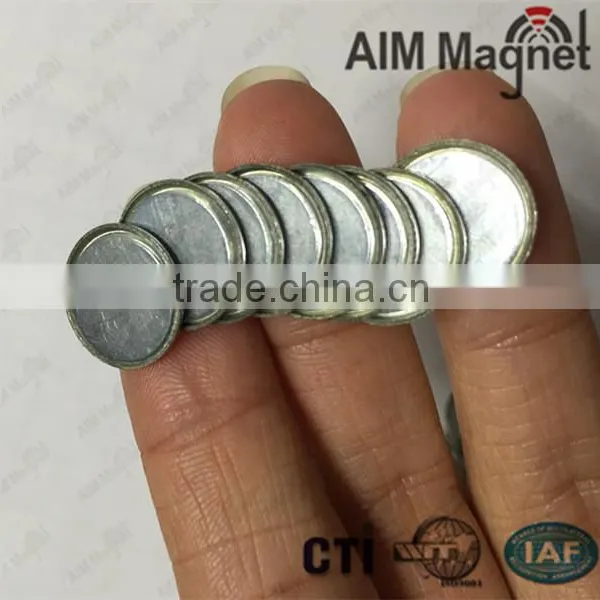

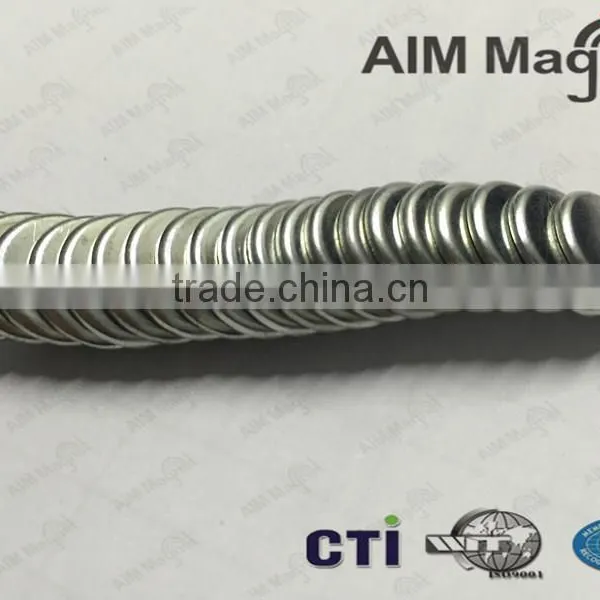

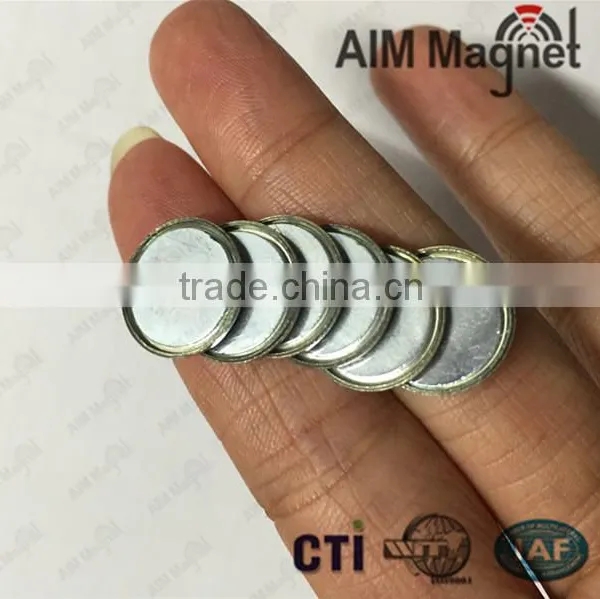

High Quality Sintered N50 Neodymium Magnets
1. Factory Price
2. Fast delivery (5~7 days)
3. Most strongest Customized Magnet
4. OEM Accept
5. AIM Magnet Company Found in 2006
High Quality Sintered N50 Neodymium Magnets
Material |
Sintered Neodymium-Iron-Boron ( NdFeB ) |
|
Size |
Custom |
|
Shape |
Round/ Customized (block,disc,cylinder, bar, ring,countersunk, Segment,hook,cup, trapezoid, irregular shapes ,etc) |
|
Performance |
Customized (N33 N35 N38 N40 N42 N45 N48 N50 N52 …...) |
|
Coating |
Nickel/ Customised (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc) |
|
Size tolerance |
±0.05mm for diamater /thickness, ±0.1mm for width/ length |
|
Magnetization |
Thickness Magnetized, Axially Magnetized, Diametrally Magnetized, Multi-poles magnetized, Radial Magnetized. (Customzied specific requirements magnetized) |
|
|
Max. Working Temperature |
Grade |
Max. Operating Temperatures |
N35-N52 |
80°C (176°F) |
|
33M- 48M |
100°C (212°F) |
|
33H-48H |
120°C (248°F) |
|
30SH-45SH |
150°C (302°F) |
|
30UH-40UH |
180°C (356°F) |
|
28EH-38EH |
200°C (392°F) |
|
28AH-35AH |
220°C (428°F) |
|
Applications |
Neodymium(NdFeB) Magnet are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, printer, switchboard, packing box , loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, ect. |
|
Surface |
Coating |
Thickness (Microns) |
Color |
Resistance |
Passivation |
|
0-1 |
Silver Grey |
Temporary Protection |
Nickel |
Ni+Ni |
10-20 |
Bright Silver |
Excellent against Humidity |
Ni+Cu+Ni | ||||
Zinc |
Zn |
8-20 |
Bright Blue |
Good Against Salt Spray |
C-Zn |
Shinny Color |
Excellent Against Salt Spray |
||
Tin |
Ni+Cu+Sn |
15-20 |
Silver |
Superior Against Humidity |
Gold |
Ni+Cu+Au |
10-20 |
Gold |
Superior Against Humidity |
Copper |
Ni+Cu |
10-20 |
Gold |
Temporary Protection |
Epoxy |
Epoxy |
15-25 |
Black, Red, Grey |
Excellent Against Humidity & Salt Spray |
Ni+Cu+Epoxy | ||||
Zn+Epoxy |
1.Why are chosen us?
- We are a professional magnet manufacturer since 2006. Our plating factory is the benchmark in the Shenzhen
NdFeB industry.
- No returned goods for five years in Europe market.
- We provide magnets for a dozen of Fortune Global 500 enterprises such as Apple, Samsung, Lenovo etc.
- In Europe market, 80% permanent magnets used for range hood are from AIM Magnet Co., Ltd.
- Our company is the main supplier of American top wine box.
- With rich exporting experiences with neodymium magnets, we build supply chain to offer neodymium magnets
with professional service.
2. How to control the magnetic property?
- Hight stander raw material
3. How to control the tolerance?
- 1. before ginding and cuting, we inspection the black product tolerance.
- 2. before and after coating, we will inspection the tolerance by AQL standard
- 3. before delivery, will inspection the tolerance by AQL standard
4. How to guarantee the consistancy?
- 1. the sintering control will make sure the perfect consistancy.
- 2. we cut magnet by multi-wire sawing machine to guarantee the dimension consistancy.
5. How to control coating ?
- 1. we have a coatIng factory
- 2. after coating, first inspection by visual, and second is salt spray test, nickel 48-72 hours, zinc 24-48 hours
6. How to control the packing?
- 1. standard packing,
- 2. the cartons must can be bear a man's weight.
- 3. the cartons must be well after fall down test from 1m high position. and the inner packing must not change position
Weclome to contact
Ms. cassiel chen
Tel: +86 755 2723 0925 Ext: 8010; Cell: +86 13527657202 Skype : cassielchen8
