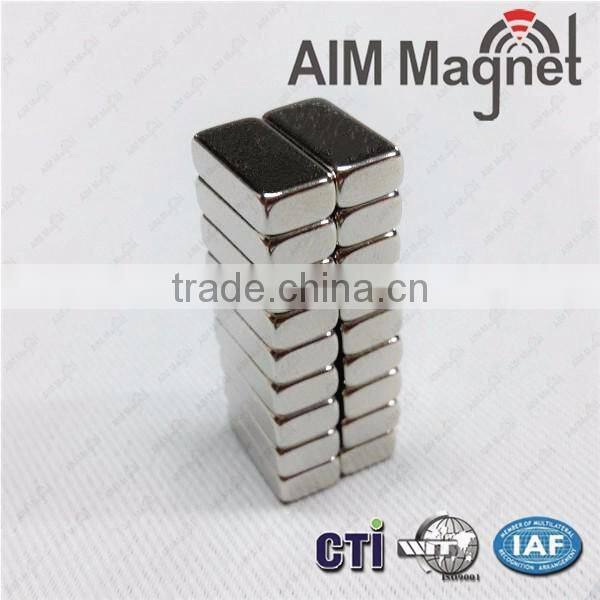

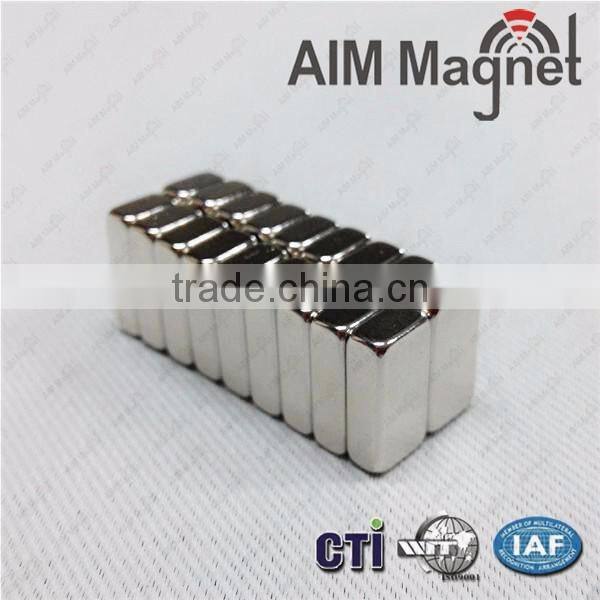

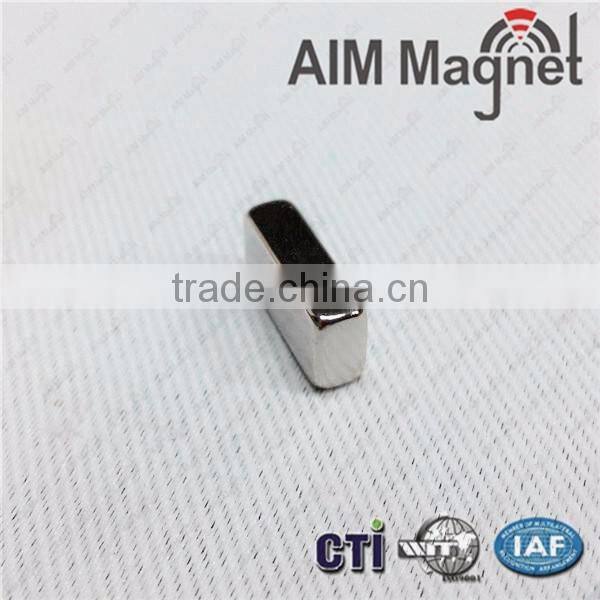

Rare earth magnet 40x20x10mm block N45
- 1000 Ton / Tons per Month
- Shenzhen
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | AIM Magnet | |
| Model Number | N35 N38 N40 N42 N45 N48 N50 N52 | Type | Permanent | |
| Composite | Neodymium Magnet | Shape | Block | |
| Application | Industrial Magnet |
Product Description
Rare earth magnet 40x20x10mm block N45
1. Factory Price
2. Fast delivery (5~7 days)
3. OEM Accept
4. 11 years Factory
For Now, we have more than 10 years experience on neodymium magnet manufacturer ,have no goods returered for many years in Europe Market.Please be assured that you will receive neodymium magnet on time, and be satisfaction with the quality. Pls saw more detail of neodymium magnet below:
Rare earth magnet 40x20x10mm block N45
Material | Sintered Neodymium-Iron-Boron ( NdFeB ) | |
Size | Custom 20mm | |
Shape | Blcok/ Customized (block,disc,cylinder, bar, ring,countersunk, Segment,hook,cup, trapezoid, irregular shapes ,etc) | |
Performance | N50 / Customized (N33 N35 N38 N40 N42 N45 N48 N50 N52 …...) | |
Coating | Nickel/ Customised (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc) | |
Size tolerance | ±0.05mm for diamater /thickness, ±0.1mm for width/ length | |
Magnetization | Thickness Magnetized, Axially Magnetized, Diametrally Magnetized, Multi-poles magnetized, Radial Magnetized. (Customzied specific requirements magnetized) | |
Max. Working Temperature | Grade | Max. Operating Temperatures |
N35-N52 | 80°C (176°F) | |
33M- 48M | 100°C (212°F) | |
33H-48H | 120°C (248°F) | |
30SH-45SH | 150°C (302°F) | |
30UH-40UH | 180°C (356°F) | |
28EH-38EH | 200°C (392°F) | |
28AH-35AH | 220°C (428°F) | |
Applications | Neodymium(NdFeB) Magnet are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, printer, switchboard, packing box , loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, ect. | |
Surface | Coating | Thickness (Microns) | Color | Resistance |
Passivation |
| 0-1 | Silver Grey | Temporary Protection |
Nickel | Ni+Ni | 10-20 | Bright Silver | Excellent against Humidity |
Ni+Cu+Ni | ||||
Zinc | Zn | 8-20 | Bright Blue | Good Against Salt Spray |
C-Zn | Shinny Color | Excellent Against Salt Spray | ||
Tin | Ni+Cu+Sn | 15-20 | Silver | Superior Against Humidity |
Gold | Ni+Cu+Au | 10-20 | Gold | Superior Against Humidity |
Copper | Ni+Cu | 10-20 | Gold | Temporary Protection |
Epoxy | Epoxy | 15-25 | Black, Red, Grey | Excellent Against Humidity & Salt Spray |
Ni+Cu+Epoxy | ||||
Zn+Epoxy |
1.Why are chosen us?
- We are a professional magnet manufacturer since 2006. Our plating factory is the benchmark in the Shenzhen
NdFeB industry.
- No returned goods for five years in Europe market.
- We provide magnets for a dozen of Fortune Global 500 enterprises such as Apple, Samsung, Lenovo etc.
- In Europe market, 80% permanent magnets used for range hood are from AIM Magnet Co., Ltd.
- Our company is the main supplier of American top wine box.
- With rich exporting experiences with neodymium magnets, we build supply chain to offer neodymium magnets
with professional service.
2. How to control the magnetic property?
- Hight stander raw material
3. How to control the tolerance?
- 1. before ginding and cuting, we inspection the black product tolerance.
- 2. before and after coating, we will inspection the tolerance by AQL standard
- 3. before delivery, will inspection the tolerance by AQL standard
4. How to guarantee the consistancy?
- 1. the sintering control will make sure the perfect consistancy.
- 2. we cut magnet by multi-wire sawing machine to guarantee the dimension consistancy.
5. How to control coating ?
- 1. we have a coatIng factory
- 2. after coating, first inspection by visual, and second is salt spray test, nickel 48-72 hours, zinc 24-48 hours
6. How to control the packing?
- 1. standard packing,
- 2. the cartons must can be bear a man's weight.
- 3. the cartons must be well after fall down test from 1m high position. and the inner packing must not change position
Weclome to contact
Ms. cassiel chen
Tel: +86 755 2723 0925 Ext: 8010; Cell: +86 13527657202 Skype : cassielchen8
