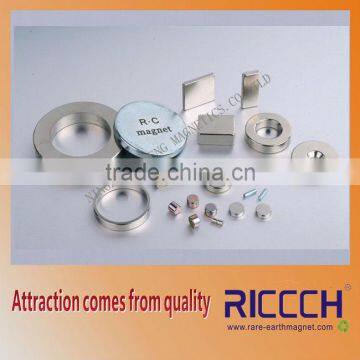

Strong Diametric Magnet Disc
Sintered NdFeB magnet are the most advanced commercialized permanent magnet materials today.With far better permanent magnetic performance compared with traditional magnets,sintered
Strong Diametric Magnet Disc are the key functional materials for mordern industry.
We have the ability to manufacture a full range of NdFeB magnet ring from N33 to N52, and in various types.In addition to the stock ring magnet listed, others are available. Please inquire. Non-standard shapes and sizes can be machined to blueprint specifications.
welcome to the word of NdFeB magnet,we will give you the besr technical support at any convenient time
Product information:
| Description | Disc Neodymium Magnets | ||
| Material | Neodymium-Ferrum-Boron | ||
| Working Temperature | Grade | Max.operating temperates | Hcj(koe) |
| N35-N48 | 80°C | ≥12 | |
| N50-N52 | 60°C | ≥11 | |
| 33M-48M | 100°C | ≥14 | |
| 33H-48H | 120°C | ≥17 | |
| 30SH-45SH | 150°C | ≥20 | |
| 30UH-40UH | 180°C | ≥25 | |
| 28EH-38EH | 200°C | ≥30 | |
| 28AH-35AH | 220°C | ≥33 | |
| Magnet Shape | Disc, Cylinder, Block, Ring, Countersunk,Trapezoid, Irregular shapes and more. Customized shapes for NdFeB magnet are available. | ||
| Magnet Coating | Nickel,Black, Zn, Gold, Silver, Copper, Epoxy, and more. | ||
| Material Advantage | Neodymium(29-32.5%)-Iron(63.95-68.65%)-Boron(1.1-1.2%) | ||
| Technology Advantage | Depending on advanced R&D center, Quality control team and professional machining technicians, we can surpass our competitors in the stability of quality and superiority of property | ||
| Delivery Advantage | The lead time must be 1-2days quicker than industry average because of more flexible machine process control. | ||
| Manufacture Advantage | we are the manufacturer,and specialized in this field for 8 years | ||
| Price Advantage | The price is 3%-5%cheaper than industry average because of an excellent and efficient management system. | ||
| Introduction | Sintered Neodymium(NdFeB) magnets are the most advanced commercialized permanent magnet materials today.With far better permanent magnetic performance compared with traditional magnets, Strong Cylinder magnet are the key functional materials for mordern industry. | ||
Magnet shape:
Magnet coating:
| Surface | Coating | Thickness | Color | Resistance | |
| Nickel | Ni+Ni | 10 to 20 | Bright Silver | Excellent against Humidity | |
| Ni+Cu+Ni | |||||
| Zinc | Zn | 8 to 20 | Bright Blue | Good Against Salt Spray | |
| C-Zn | Shinny Color | Excellent Against Salt Spray | |||
| Gold | Ni+Cu+Au | 10 to 20 | Gold | Superior Against Humidity | |
| Epoxy | Epoxy | 15 to 25 | Black,Red,Grey | Excellent Against Humidity & Salt Spray | |
| Ni+Cu+Epoxy | |||||
| Zn+Epoxy | |||||
| Chemical | Ni | 10 to 20 | Silver Grey | Excellent Against Humidity | |
Magnetization:
Inspection:
Packing:
QC Team
QC team consists of professional people to ensure products high quality.
Contact Us
We will reply your email or fax within 12 hours.
Please call me if you have any questions about your magnet
Transportation
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment
