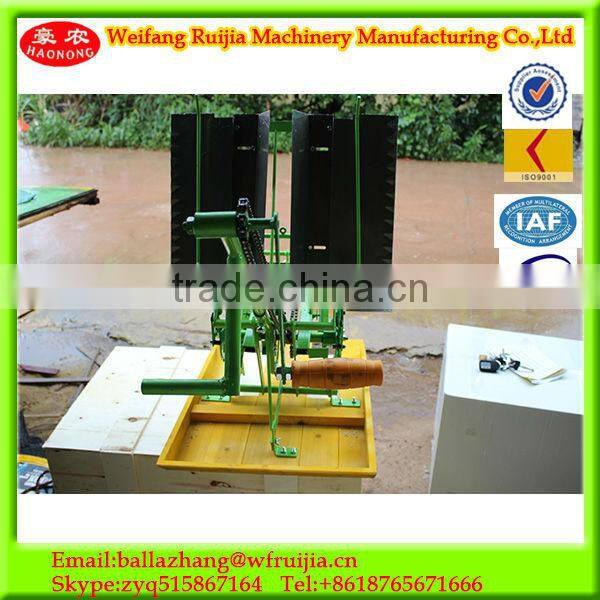

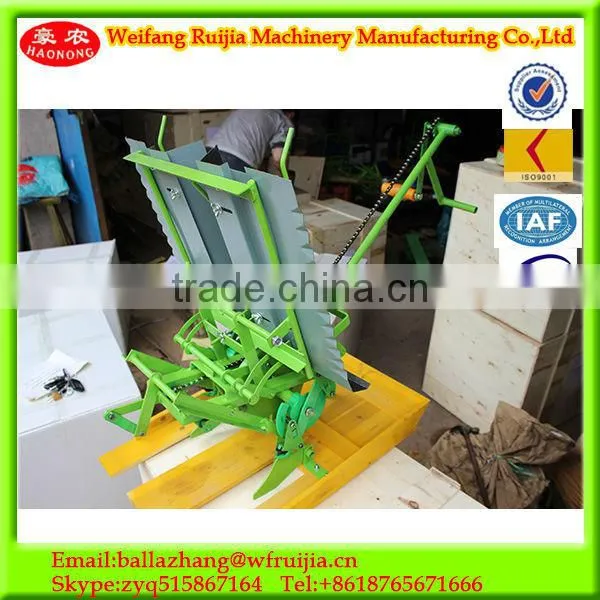

Chinese agricultural machinery best price mini manual rice planter machine ,kinds of farming tools for sale

Specifications

farm walking tractor
1.)Model:101B-3
2.)engine power 8-15hp
3.)Cooling Model: Water-cooled/ Condensing cool



Specifications.



1.)Model:101B-3



2.)engine power 8-15hp



3.)Cooling Model:Water-cooled/ Condensing cooled

 Chinese agricultural machinery best price mini manual rice planter machine ,kinds  of farming tools for sale

Name	Unit	Parameter
Model	/	101B-3
Overall Dimension	mm	2120*840*1160
Construction Weight	kg	255
Rated Power	kW/HP	5.88-11/8-15
Type	/	Dual-purpose for both traction and drive
Wheel Track	mm	680-850
Min.ground Distance	mm	210
Tyre Type	/	6.00-12
Tyre Pressure	KPa	100-120(field work),180-200(Transportation work)
Gear (forward/reverse)	/	6/2
Gear speed	km/h	Forwad:1.68,2.61,4.22,6.79,10.57,17.08 Reverse:1.29,5.22
Engine and Clutch Connection	/	Leather Belt
Starting Model	/	Hand Starting/Electrical Starting
Clutch Type	/	Dry Friction
Gear Box	/	(3+1)*2
Diesel Engine Weight	kg	80-105
Air Cylinder No.	Cylinder	1
Rated Speed	R/Min	2300
Cooling Model	/	Water-cooled/ Condensing cooled



Row	2 Rows
Row Distance	250mm
Weight	18kg
Turning radius	210mm max
Planting depth	65mm max
Planting frequency	120trees/min
Resistance of crank	1.5-2kg
Resistance of moving	1-2kg
Planting speed	0.8-1mu/hour(0.13176 acres/hour)
Rice seedling height	150-350mm
Rice seedling diameter	2-5mm
Rice seedling roots	Within 60mm
Paddy field water depth	10-20mm
Machine CBM	600*700*800mm
Wooden Package CBM	800*500*500mm













   Weifang Ruijia Machinery Manufacturing Co., Ltd, established in 2004, is a professional manufacturer of farm machinery. Our main products include walking tractors, power tillers, rotary cultivators, tiller cultivators, Micro tillage machines, rural management machines, & some other machines.
More than 80000 pcs can be made by us each year. We mainly export our products to Africa, Oceania, etc. Our company has successfully attained ISO9001:2008 certificate. We have enjoyed the national subsidy









1. Q:What's the type of your power ?

     A:101B-3,Dongfeng.

2. Q: What's your power range ?

     A: We can offer the power rated range from 8 to 22HP.

3. Q:What’s your payment item ?

     A: T/T, L/C.

4. Q:What’s your delivery time ?

     A: Within 20 days after receiving the deposit.

5. Q:Do you have export experience?

     A: Yes, more than10 years. We have exported our products to Ukraine, Russian, Algeria, Africa, America, Europe and most of the overseas market.

6. Q:What’s warranty?

    A: One year warranty.
