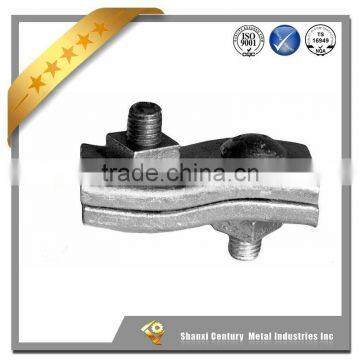

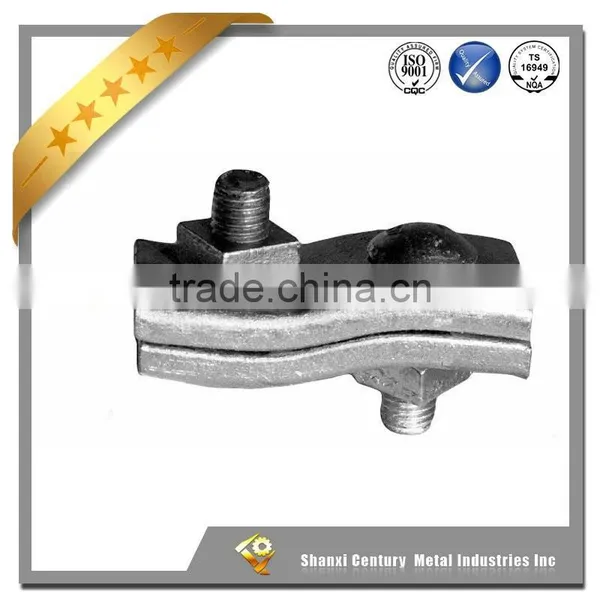

Deadend Hardware offest 6410 5/8Bolted Guy wire Clamp
1:This twobolt offset guy clamp with curved clamping member provides a more positive hold on the guy
strand.
2: This clamp has 5/8" diameter bolts.
3: Hot dip galvanized.
4: CMI Guy clamps are made from hot rolled steel bars.
TYPE | Length | Width | Product Finish | Material | Note | Weight | Accommodates |
Offset 6409 | 3 1/4" | 1 1/2" | Galvanized, ASTM A-153 | Steel | Two 1/2" Carriage Clamping Bolts | 1.32 lbs | 3/16" to 5/16" |
Offset 6410 | 4" (102 mm) | 1 5/8" | Galvanized, ASTM A-153 | Steel | Two 5/8" Carriage Clamping Bolts | 1.69 lbs | 5/16" to 1/2" |
Straight 6448 | 3 3/8" | 1 9/16" | Galvanized, ASTM A-153 | Steel | Two 1/2" Carriage Clamping Bolts | 1.18 lbs | 1/4" to 7/16" |
Straight 6449 | 4" (102 mm) | 1 9/16" | Galvanized, ASTM A-153 | Steel | Three 1/2" Carriage Clamping Bolts | 1.59 lbs | 1/4" to 7/16" |
Straight 6450 | 6" (152 mm) | 1 9/16" | Galvanized, ASTM A-153 | Steel | Three 1/2" Carriage Clamping Bolts | 2.12 lbs | 1/4" to 7/16" |
Straight 6460 | 6" (152 mm) | 2 1/8" | Galvanized, ASTM A-153 | Steel | Three 5/8" Carriage Clamping Bolts | 4.05 LBS | 3/8" to 5/8" |
Straight 6461 | 6" (152 mm) | 1-21/32" | Galvanized, ASTM A-153 | Steel | Three 5/8" Carriage Clamping Bolts | 2.4 lbs | 5/16" to 1/2" |
Straight 6462 | 4" (102 mm) | 1 21/32" | Galvanized, ASTM A-153 | Steel | Two 5/8" Carriage Clamping Bolts | 1.74 lbs | 5/16" to 1/2" |
Strait 7901 | 2 1/2" |
| Galvanized, ASTM A-153 | Steel | 5/8" Mounting Bolt | 0.66 lbs | 1/4" to 7/16" |
Angled 7902L | 7" (178 mm) |
| Galvanized, ASTM A-153 | Steel | 5/8" Mounting Bolt | 2 lbs | 1/4" to 7/16" |
Angled 7902R | 7" (178 mm) |
| Galvanized, ASTM A-153 | Steel | 3/4" Mounting Bolt | 1.97 lbs | 1/4" to 7/16" |
Strait 7903 | 5 3/4" |
| Galvanized, ASTM A-153 | Steel | 5/8" Mounting Bolt | 1.83 lbs | 1/4" to 7/16" |
Strait 7903L | 5 3/4" |
| Galvanized, ASTM A-153 | Steel | 5/8" Mounting Bolt | 1.57 lbs | 1/4" to 7/16" |
Angled 7904 | 5 3/4" |
| Galvanized, ASTM A-153 | Steel | 3/4" Mounting Bolt | 1.74 lbs | 1/4" to 7/16" |
Shanxi Century Metal have dealt wit the trade and manufacturing about 10years. Our products covering: diferent flanges, power line hardware, insulator fitting, roller shutter parts, trailer parts, valve parts etc. All of them are made as clients' drawings. Service ability is sound. Please take it easy to place order to us.
