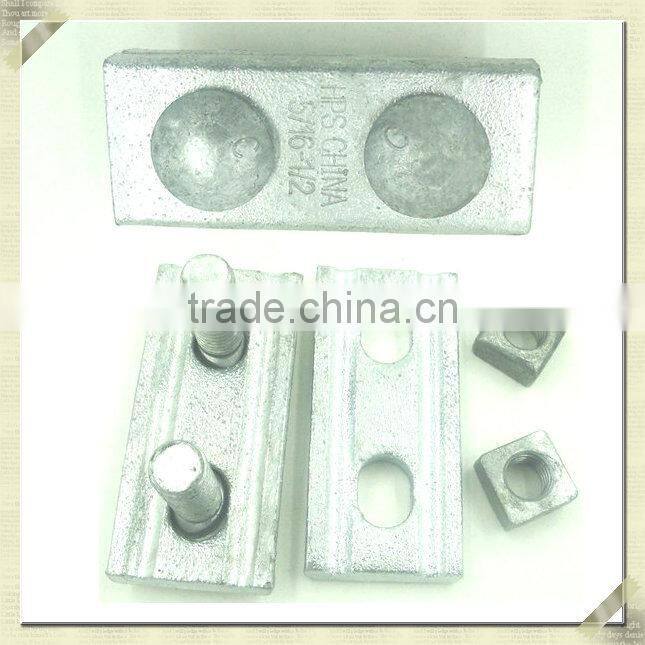

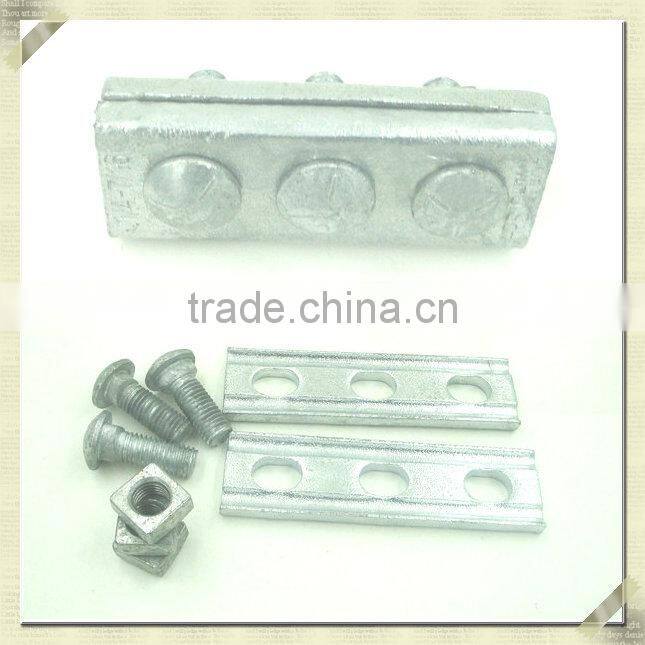

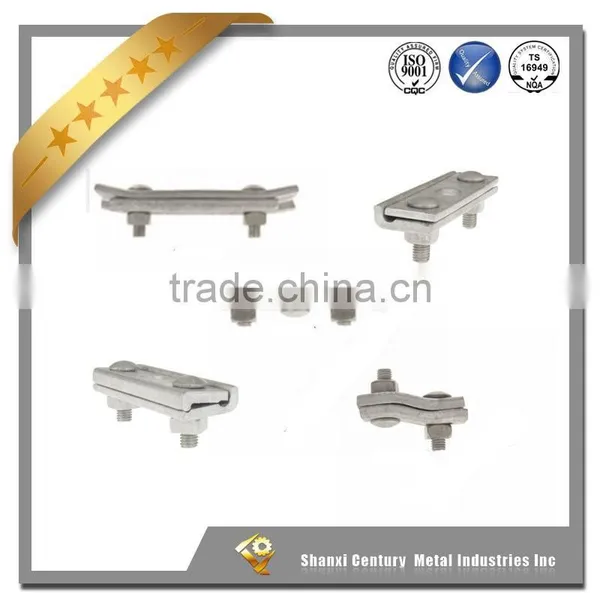

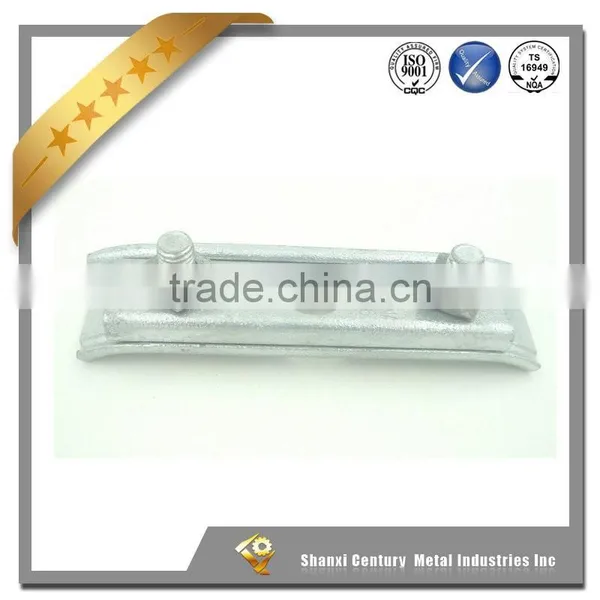

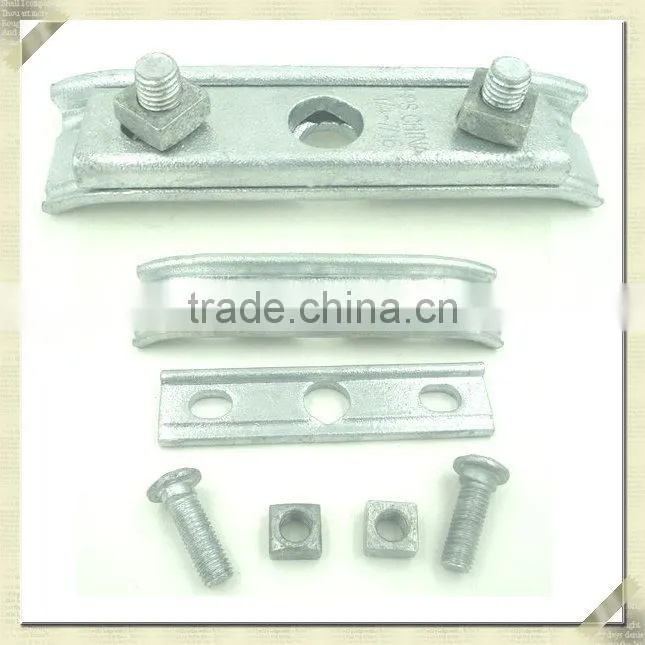

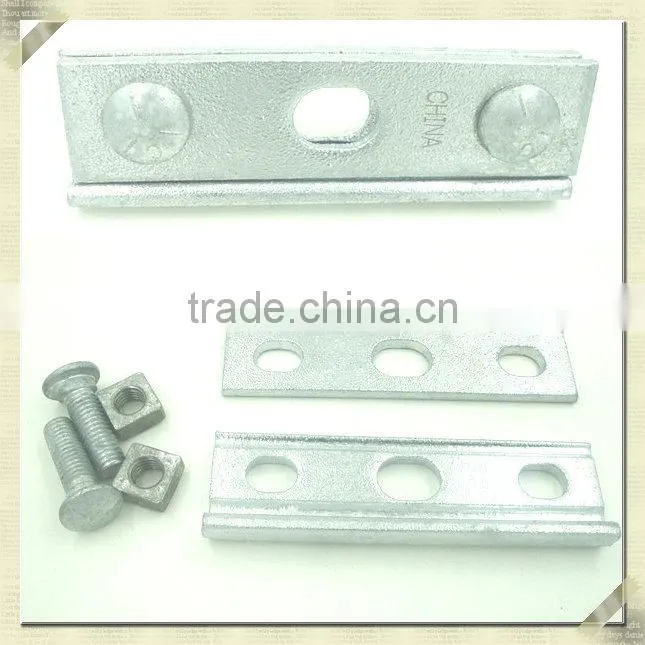

Cable Fittings Guy clamp Dead End Tension Clamp
- Used to form guy loops that attach to anchor rods.
- Parallel grooves accept strand without marring.
- Plate halves align evenly for ease of installation.
- Plate length is 3-3/8" and plate width is 1-9/16".
- Strand sizes accommodated are 3/16"-3/8"
- Comprised of two plates and two 1/2" X 1-5/8" Carriage Bolts with Regular Square Nuts.
- Hot dip galvanized to meet ASTM Specification A153.
Different specification showing for guy clamp:
TYPE |
Length |
Width |
Product Finish |
Material |
Note |
Weight |
Accommodates |
Offset 6409 |
3 1/4" |
1 1/2" |
Galvanized, ASTM A-153 |
Steel |
Two 1/2" Carriage Clamping Bolts |
1.32 lbs |
3/16" to 5/16" |
Offset 6410 |
4" (102 mm) |
1 5/8" |
Galvanized, ASTM A-153 |
Steel |
Two 5/8" Carriage Clamping Bolts |
1.69 lbs |
5/16" to 1/2" |
Straight 6448 |
3 3/8" |
1 9/16" |
Galvanized, ASTM A-153 |
Steel |
Two 1/2" Carriage Clamping Bolts |
1.18 lbs |
1/4" to 7/16" |
Straight 6449 |
4" (102 mm) |
1 9/16" |
Galvanized, ASTM A-153 |
Steel |
Three 1/2" Carriage Clamping Bolts |
1.59 lbs |
1/4" to 7/16" |
Straight 6450 |
6" (152 mm) |
1 9/16" |
Galvanized, ASTM A-153 |
Steel |
Three 1/2" Carriage Clamping Bolts |
2.12 lbs |
1/4" to 7/16" |
Straight 6460 |
6" (152 mm) |
2 1/8" |
Galvanized, ASTM A-153 |
Steel |
Three 5/8" Carriage Clamping Bolts |
4.05 LBS |
3/8" to 5/8" |
Straight 6461 |
6" (152 mm) |
1-21/32" |
Galvanized, ASTM A-153 |
Steel |
Three 5/8" Carriage Clamping Bolts |
2.4 lbs |
5/16" to 1/2" |
Straight 6462 |
4" (102 mm) |
1 21/32" |
Galvanized, ASTM A-153 |
Steel |
Two 5/8" Carriage Clamping Bolts |
1.74 lbs |
5/16" to 1/2" |
Strait 7901 |
2 1/2" |
|
Galvanized, ASTM A-153 |
Steel |
5/8" Mounting Bolt |
0.66 lbs |
1/4" to 7/16" |
Angled 7902L |
7" (178 mm) |
|
Galvanized, ASTM A-153 |
Steel |
5/8" Mounting Bolt |
2 lbs |
1/4" to 7/16" |
Angled 7902R |
7" (178 mm) |
|
Galvanized, ASTM A-153 |
Steel |
3/4" Mounting Bolt |
1.97 lbs |
1/4" to 7/16" |
Strait 7903 |
5 3/4" |
|
Galvanized, ASTM A-153 |
Steel |
5/8" Mounting Bolt |
1.83 lbs |
1/4" to 7/16" |
Strait 7903L |
5 3/4" |
|
Galvanized, ASTM A-153 |
Steel |
5/8" Mounting Bolt |
1.57 lbs |
1/4" to 7/16" |
Angled 7904 |
5 3/4" |
|
Galvanized, ASTM A-153 |
Steel |
3/4" Mounting Bolt |
1.74 lbs |
1/4" to 7/16" |
Shanxi Century Metal have dealt wit the trade and manufacturing about 10years. Our products covering: diferent flanges, power line hardware, insulator fitting, roller shutter parts, trailer parts, valve parts etc. All of them are made as clients' drawings. Service ability is sound. Please take it easy to place order to us.
Our advantage help you gain much more chance:
1: Factory directly. We have complete investment casting process line, advanced machining house, good management and testing system.
Globally acceptabe quality: The products offered by us are thoroughly examined by our experienced professionals to ensure their durability, reliability and long service life.
Competitive price: direct manufacturer, reducing all unnecessary cost for you.
2: Trade assurance corporation
3: Professional team
20 years foreign customers service experience.
Over 10 years investment casting manufacture. Almost 35% high educated people.
4: Best service. Customer is god.
Famous Power Line Exbition Attending:
Professional Quality Assurance and manage system:

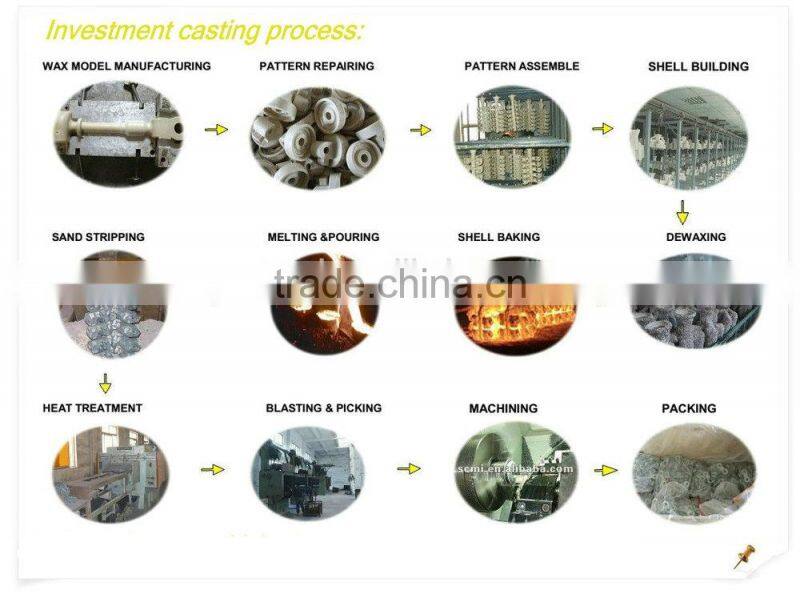

Investment casting Process Showing:

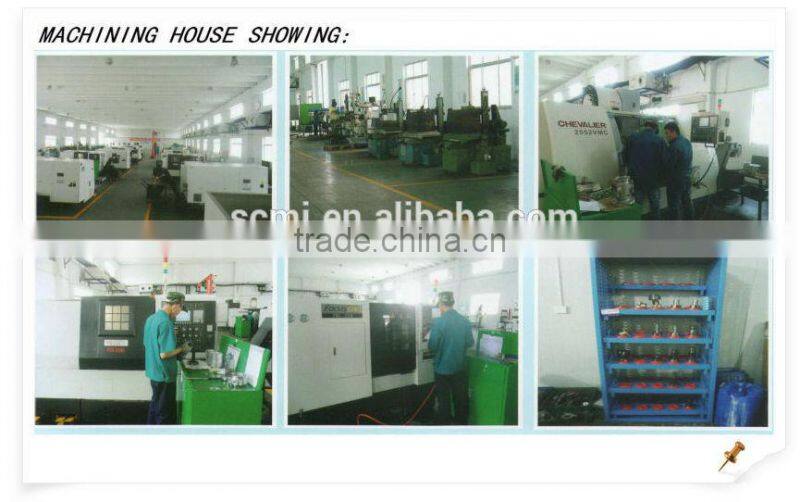

Professional Machining Housing showing:
The packing & shipment:
1.sample is for free, and the freight is negotiated.
2. Payment: T/T, L/C, credit card, western union, or acc to requirement(30% T/T in advance,and 70% after seeing the B/L)
3. Package: Crate or as your requirement
4. Shipping: Air, boat, truck, TNT, DHL, etc.(as per the actual situation)
