Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > Gearbox for Sea Used Oil Drilling
US$ 30 - 500 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
DS
Model Number:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Liaoning, China
Brand Name DS
Model Number OEM
Gearing Arrangement Cycloidal
Output Torque OEM
Rated Power OEM
Input Speed OEM
Output Speed OEM

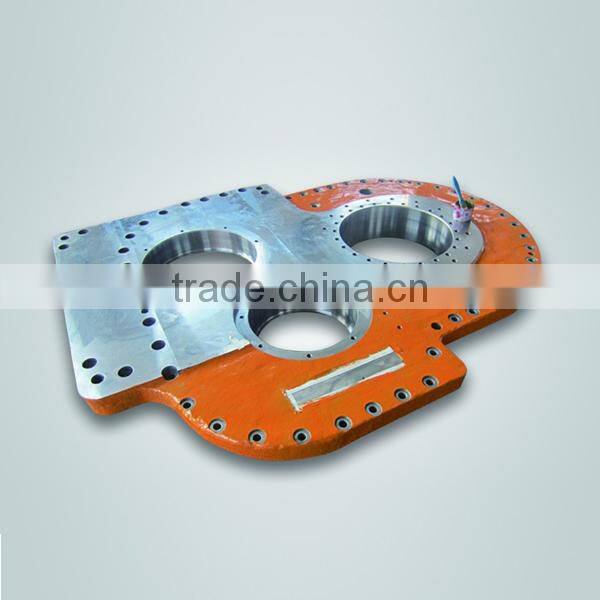

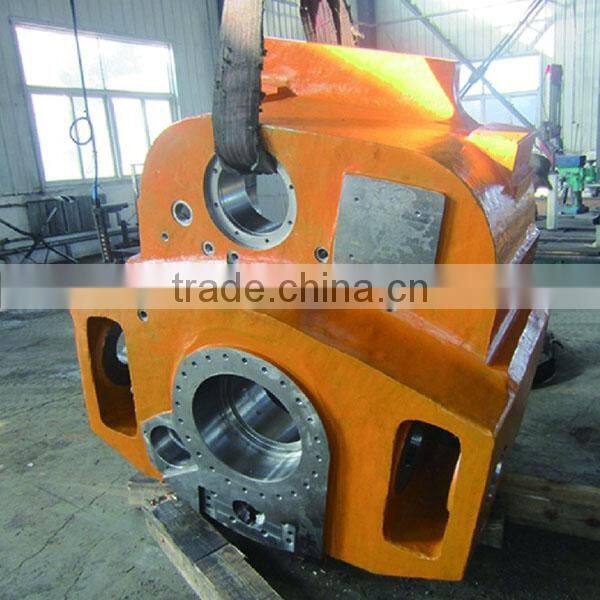

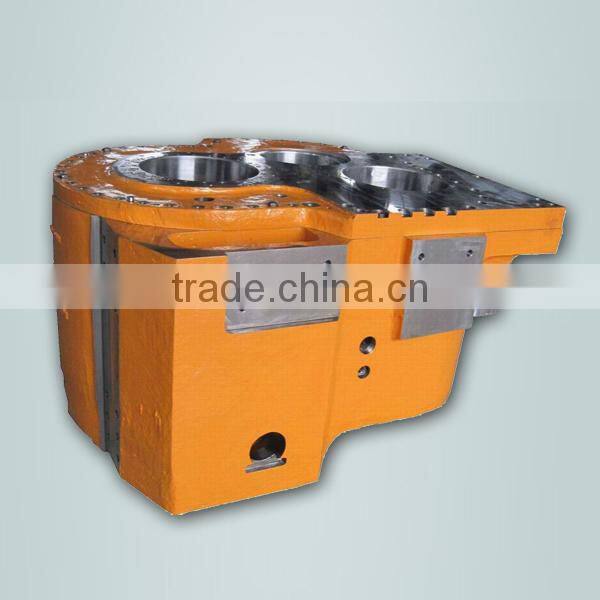

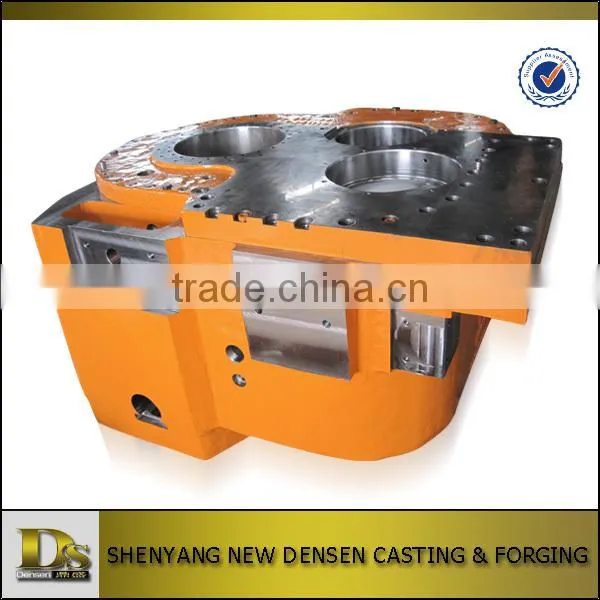

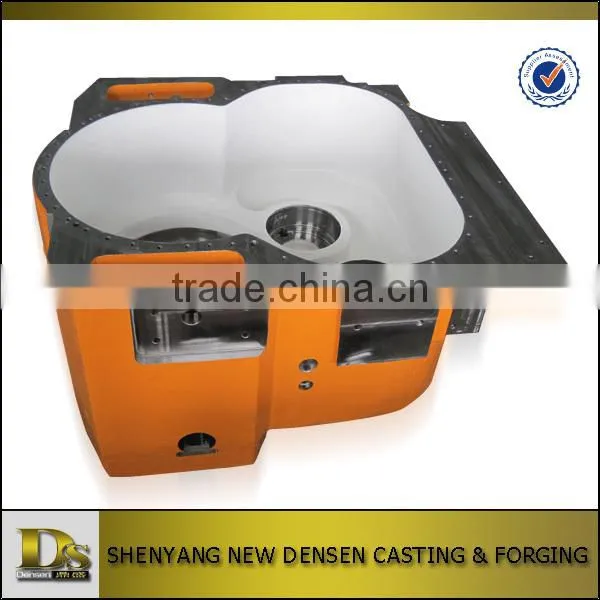

Sea used oil drilling platform gearbox



Product Description

 Gearbox for Sea used oil drillingGearbox for Sea used oil drillingGearbox for Sea used oil drilling

Marine gearbox 40A:

1.Transmission mode: 3 shafts with 5 helical gears.

2.Clutch: Hydraulically-controlled wet-type multi plates.

3.Input coupling: Flexible pin-type coupling or rubber toothed block coupling.

4.Input speed: 750-2000rpm.

5.Ratios and the transmission capacity:

Normal ratio

Practical ratio

Trans.capacity kW/(rpm)(HP/rpm)

2:1

2.066:1

0.0294(0.040)

3:1

2.957:1

0.0294(0.040)

3.5:1

3.44:1

0.025(0.034)

6.Overal dimension(L*W*H): 490*670*620mm

7.Net weight: 240kg.

8.Recommend engine:YANMAR 6CHLN; BAUDOUIN 4D 106,etc.


Elastic pin drive or toothed rubber block drive, SAE617C No. 1d, No. 2 and No. 3 casing are available. Machinery-hydraulic control clutch makes gearing more smooth and separate thoroughly.



Packaging & Shipping

Gearbox for Sea used oil drillingGearbox for Sea used oil drillingGearbox for Sea used oil drillingGearbox for Sea used oil drilling



Company Information

ABOUT US:

With the help of over 20 years manufacturing experiences in the field of oil & gas, mining, power generation, transportation industries, Shenyang New Densen Casting and Forging Co., Ltd. and its 15 factories would like to help our worldwide customers to supply the best quality mechanical products with the most competitive prices.

The product single weight could be from 0.01KGS TO100,000KGS. The processes could be casting, forging, stamping, machining, fabrication and assembly. The material could be various steel, iron and non-ferrous.

All our factories are ISO 9001 certified. Some of them were awarded by ISO/TS16949, PED, etc. We also could provide RT, UT, MPI, WPS&PQR, etc. as per request.

Densen will not only manufacture and source products for our customers, but also provide technical support, production all-time supervision and quality track service. Special request products available upon request

Just inform us what you are looking for, our professional team will help you to finish the other work.
To be one-stop sourcing platform for our customers is Densen’s principle all the time.



Our Services

WHY BUY FORM US

  • Engaged in supply one-stop sourcing, inspection and technical support for overseas customer
  • Help customers to get high cost performance products locally
  • Worked with institutes, help factories to maintain stable quality
  • Good understanding on overseas standards, strong and responsible QC system, help factories and customers to avoid release of non-conformance products
QUALITY CONTROL
  • Quality Control

    Professional precision manufacture for more than 10 years.

    1. Quality control: The defective products rate is 0.1%. Imported material 100%.

    2. Experienced &Responsible QC that you can reply on.

    3. Each part would be given 100% test and tryout before shipment.

    4. Adequate supply capacity. Punctual delivery time.

    5. Best after sales service is provided.





FAQ

FAQ:

Q1:How long shall we get the quotation?

Processing time for Enquiries :1-3 days

Q2:What is your payment term?

Payment term:

1)Pattern and tooling: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.

2)Samples: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.

3)Products: 30% prepaid as order deposit;70% paid before EX-work.

Q3:Will we have the property of the tooling?

Yes,tooling's cost is one-time charge,the property of toolings will be yours after pay off all the charges.

Q4:What shall we do if the quality is not meet our requirement?

If it is true after we re-test,we can repay the payment or re-produce until it reach the quality
