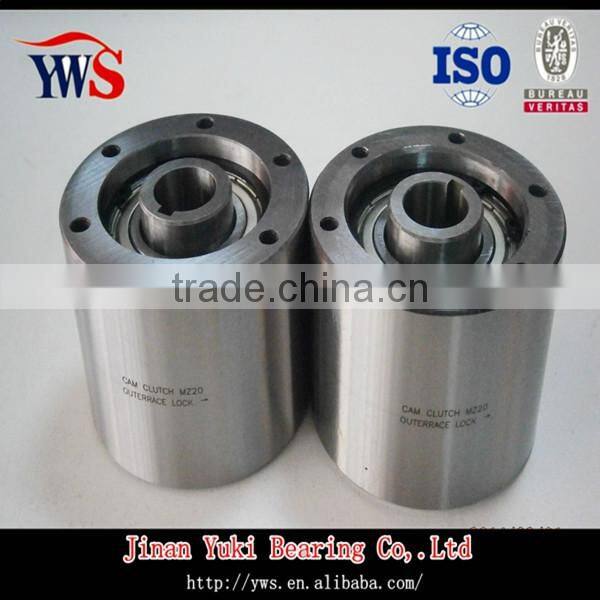

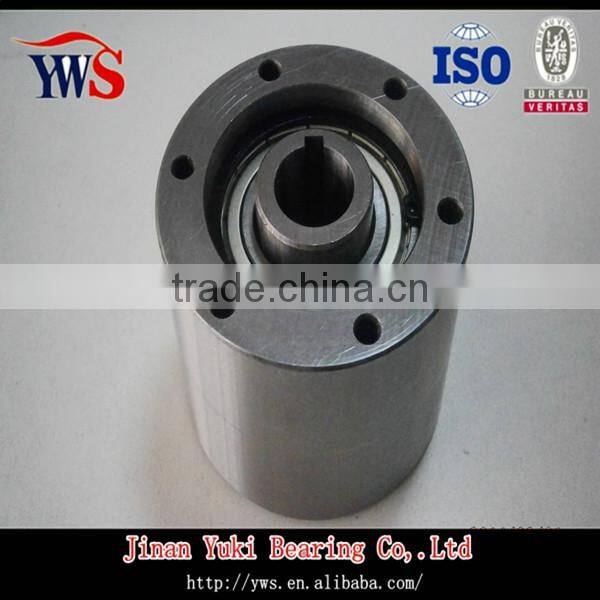

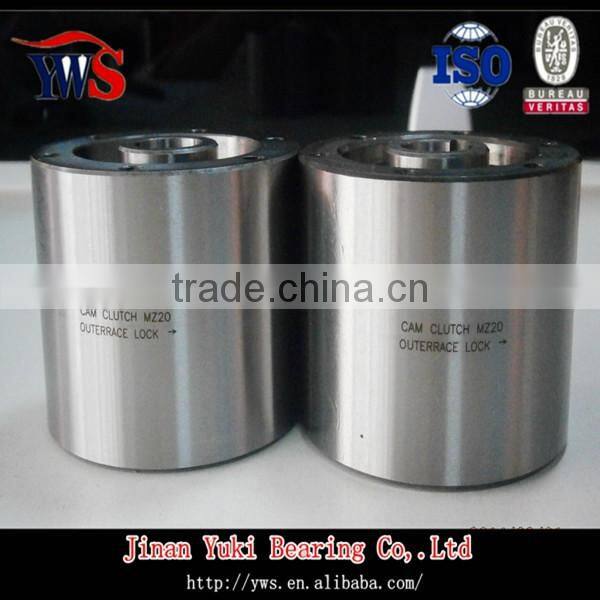

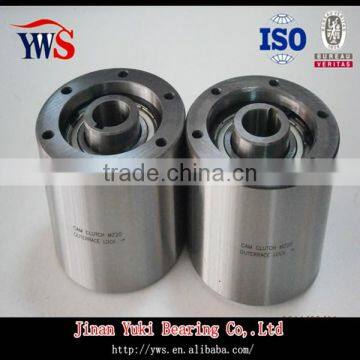

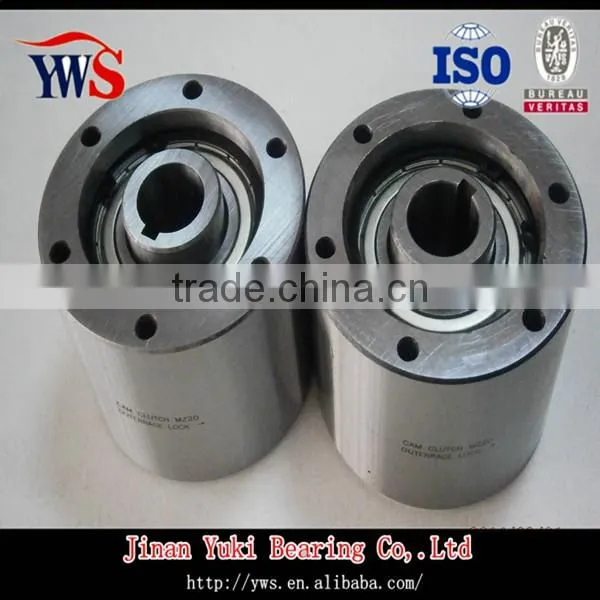

MZ35 overrunning one way clutch bearing for textile machine
1. CSK bearing is one way bearing with a sprag type.
2. CSK bearing has CSK..P, CSK..PP series.
3. CSK bearins series are composed of a 62 series ball bearing (except CSK8 and 40).
4. CSK bearing or One-way bearings are widely used in mining /hydraulic / textile / printing / washing machines, conveyor systems and so on.
5. One way bearing (freewheel bearing) CSK series, HF, HFL, FCB, B200 series.

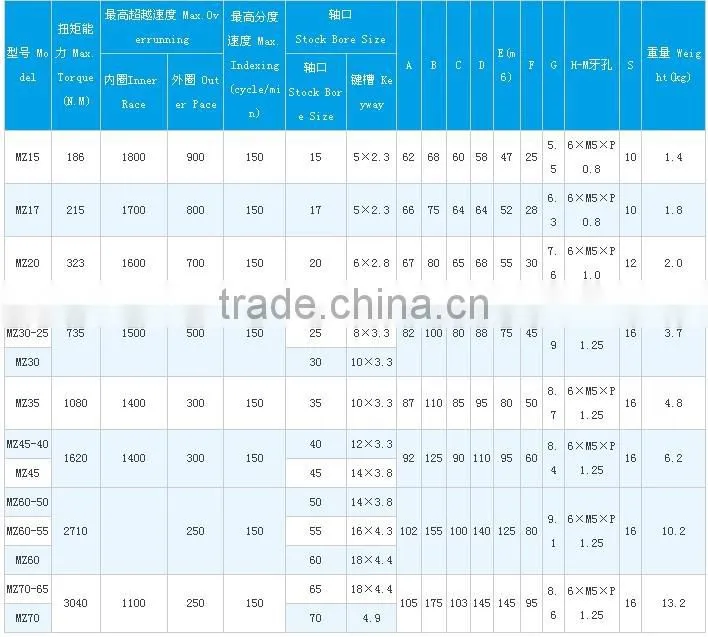

6. One way clutch (overrunning clutch), GFR, MZ series.
CSK—P and CSK—PP series are available upon request. CSK--P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race; CSK--PP features a keyway in both the inner and outer race. The Model CSK—P clutches must be secured to the shaft by customer supplied snap ring, set collar, spacer, etc. The outer race is secured with a press fit to a N6 tolerance. The Model CSK—PP clutches have a keyway on both races and must be secured by customer supplied snap ring, set collar, spacer, etc
| Bearing NO. | nominal torque Tn(N.m) | boundary dimension | limit speed (r/min) | bearing series | inner ring keyway(b×t) |
Outer ring keyway (b×t) |
weight (kg) | |||||
|
bore d |
OD |
breadth L |
bore | outer ring | ||||||||
| grease lubrication | oil lubrication | grease lubrication | oil lubrication | |||||||||
| CSK12 | 7.4 | 12 | 32 | 10 | 10000 | 11000 | 5500 | 6500 | 6201 | 0.04 | ||
| CSK15 | 13.5 | 15 | 35 | 11 | 8400 | 9400 | 5000 | 6000 | 6202 | 5×1.5 | 2×0.6 | 0.06 |
| CSK17 | 24.5 | 17 | 40 | 12 | 6300 | 7800 | 4200 | 5200 | 6203 | 5×1.8 | 2×1.0 | 0.07 |
| CSK20 | 40 | 20 | 47 | 14 | 6300 | 7800 | 4200 | 5200 | 6204 | 6×2.0 | 3×1.5 | 0.11 |
| CSK25 | 68 | 25 | 52 | 15 | 4800 | 5900 | 3400 | 4200 | 6205 | 8×2.0 | 6×2.0 | 0.14 |
| CSK30 | 110 | 30 | 62 | 16 | 4000 | 5000 | 2800 | 3500 | 6206 | 10×2.3 | 6×2.0 | 0.21 |
| CSK35 | 140 | 35 | 72 | 17 | 3500 | 4000 | 2200 | 2800 | 6207 | 10×2.4 | 8×2.5 | 0.3 |
| CSK40 | 260 | 40 | 80 | 22 | 3000 | 3800 | 2000 | 2500 | 12×2.4 | 10×3.0 | 0.5 | |
| CSK12 2RS | 7.4 | 12 | 32 | 14 | 10000 | 11000 | 5500 | 6500 | 0.05 | |||
| CSK15 2RS | 13.5 | 15 | 35 | 16 | 8400 | 9400 | 5000 | 6000 | 5×1.5 | 2×0.6 | 0.07 | |
| CSK17 2RS | 24.5 | 17 | 40 | 17 | 6300 | 7800 | 4200 | 5200 | 5×1.8 | 2×1.0 | 0.09 | |
| CSK20 2RS | 40 | 20 | 47 | 19 | 6300 | 7800 | 4200 | 5200 | 6×2.0 | 3×1.5 | 0.154 | |
| CSK25 2RS | 68 | 25 | 52 | 20 | 4800 | 5900 | 3400 | 4200 | 8×2.0 | 6×2.0 | 0.175 | |
| CSK30 2RS | 110 | 30 | 62 | 21 | 4000 | 5000 | 2800 | 3500 | 10×2.3 | 6×2.0 | 0.27 | |
| CSK35 2RS | 140 | 35 | 72 | 22 | 3500 | 4000 | 2200 | 2800 | 10×2.4 | 8×2.5 | 0.4 | |
| CSK40 2RS | 260 | 40 | 80 | 27 | 3000 | 3800 | 2000 | 2500 | 12×2.4 | 10×3.0 | 0.6 | |
