High Precision Bearing 51205 Thrust Ball Bearing 51180m

High Precision Bearing 51205 Thrust Ball Bearing 51180m thumbnail-1
High Precision Bearing 51205 Thrust Ball Bearing 51180m thumbnail-2
High Precision Bearing 51205 Thrust Ball Bearing 51180m thumbnail-3
High Precision Bearing 51205 Thrust Ball Bearing 51180m thumbnail-4
High Precision Bearing 51205 Thrust Ball Bearing 51180m thumbnail-5
High Precision Bearing 51205 Thrust Ball Bearing 51180m thumbnail-6
High Precision Bearing 51205 Thrust Ball Bearing 51180m photo-1
High Precision Bearing 51205 Thrust Ball Bearing 51180m photo-2
High Precision Bearing 51205 Thrust Ball Bearing 51180m photo-3
High Precision Bearing 51205 Thrust Ball Bearing 51180m photo-4
High Precision Bearing 51205 Thrust Ball Bearing 51180m photo-5
High Precision Bearing 51205 Thrust Ball Bearing 51180m photo-6
US$ 1 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
YWS or OEM
Bore Size:
25,
Outside Diameter:
47,
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS or OEM
Bore Size 25,
Outside Diameter 47,
Model Number 51205
Precision Rating P0 P6 P5 P4 P2
Seals Type open
Number of Row Single Row
Place of Origin Shandong, China

 high precision bearing 51205 thrust ball bearing

Specification



Type Thrust ball bearings
Model No. 51205
Old model No. 8205
d 25 mm
D 47 mm
B 15 mm
Mass 0.12 kg
Material chrome steel/ stainless steel
Brand OEM service available/YWS Brand
Precision grade P0/P2/P4/P5/P6
Vibration Z1V1 ,Z2V2 ,Z3V3
Quality Standard ISO9001:2001,BV -Alibaba Assessed supplier etc.

high precision bearing 51205 thrust ball bearing 51180m

high precision bearing 51205 thrust ball bearing 51180m

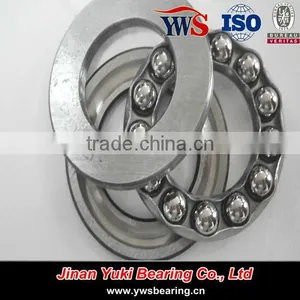

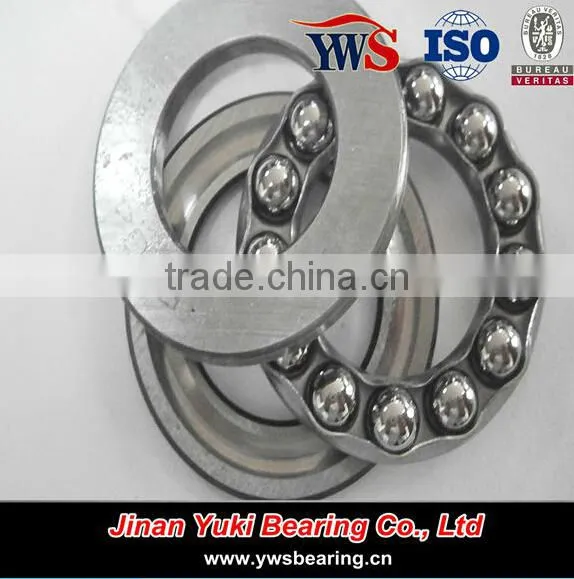

Photos of Thrust ball bearing

high precision bearing 51205 thrust ball bearing 51180m



high precision bearing 51205 thrust ball bearing 51180m

We also supply Ceramic Thrust Ball Bearings 51105



high precision bearing 51205 thrust ball bearing 51180m

high precision bearing 51205 thrust ball bearing 51180m





Related bearings of  51205 thrust ball bearing



Model No. Size Load Speed Mass(Kg)
mm (kN) (kN) rpm
d D T Cr Cor Grease oil
51103 17 30 9 10.8 18.2 5,300 7,500 0.024
51104 20 35 10 14.2 24.5 4,800 6,700 0.036
51105 25 42 11 15.2 30.2 4,300 6,000 0.055
51106 30 47 11 16 34.2 4,000 5,600 0.062
51107 35 52 12 18.2 41.5 3,800 5,300 0.077
51108 40 60 13 26.8 62.8 3,400 4,800 0.11
51109 45 65 14 27 66 3,200 4,500 0.14
51110 50 70 14 27.2 69.2 3,000 4,300 0.15
51111 55 78 16 33.8 89.2 2,800 4,000 0.22
51112 60 85 17 40.2 108 2,600 3,800 0.27
51113 65 90 18 40.5 112 2,400 3,600 0.31
51114 70 95 18 40.8 115 2,200 3,400 0.33
51115 75 100 19 48.2 140 2,000 3,200 0.38
51116 80 105 19 48.5 145 1,900 3,000 0.4



 model d D T
mm mm mm
51200 10 26 11
51201 12 28 11
51202 15 32 12
51203 17 35 12
51204 20 40 14
51205 25 47 15
51206 30 52 16
51207 35 62 18
51208 40 68 19
51209 45 73 20
51210 50 78 22
51211 55 90 25
51212 60 95 26
51213 65 100 27
51214 70 105 27
51215 75 110 27
51216 80 115 28
51217 85 125 31
51218 90 135 35
51220 100 150 38





Application
  • Road Planes
  • Steel rolling / heavy industry / Transmissions
  • Agricultural, pumps, mining
  • General heavy engineering applications
  • Marine, shipping and paper







Types of Thrust ball bearing



  • Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
  • Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.







About Us

Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.

high precision bearing 51205 thrust ball bearing 51180m

high precision bearing 51205 thrust ball bearing 51180m

high precision bearing 51205 thrust ball bearing 51180m

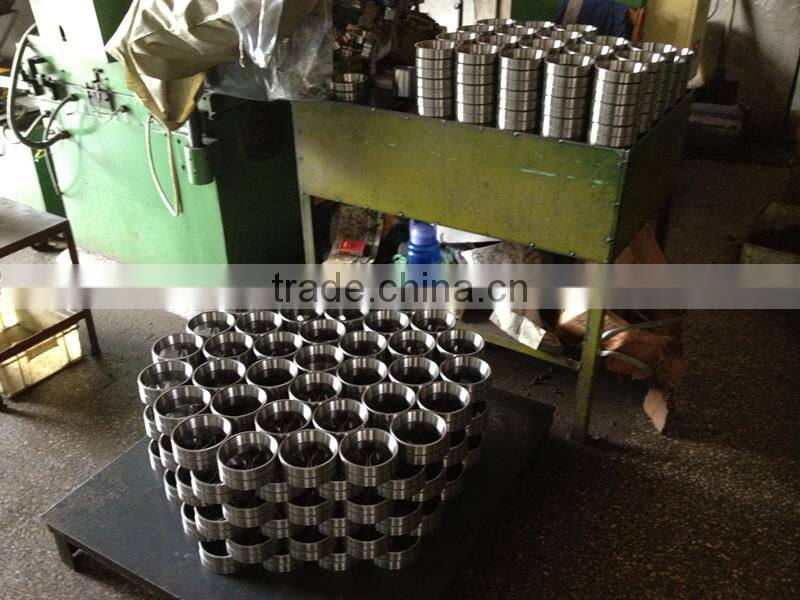

Production Process

high precision bearing 51205 thrust ball bearing 51180m

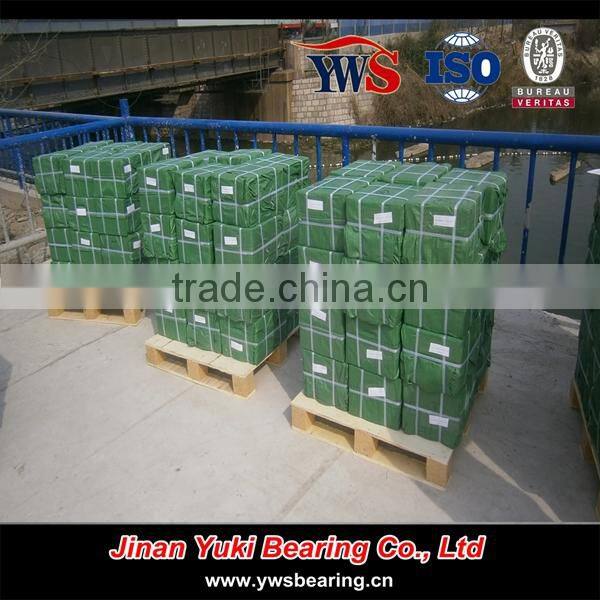

Packaging & Shipping

  high precision bearing 51205 thrust ball bearing 51180m

 high precision bearing 51205 thrust ball bearing 51180m





Certification
 high precision bearing 51205 thrust ball bearing 51180mhigh precision bearing 51205 thrust ball bearing 51180m



FAQ

 high precision bearing 51205 thrust ball bearing 51180m
