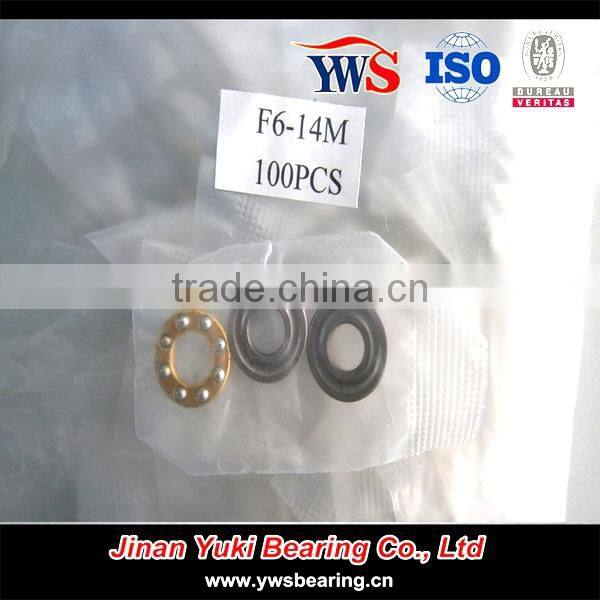

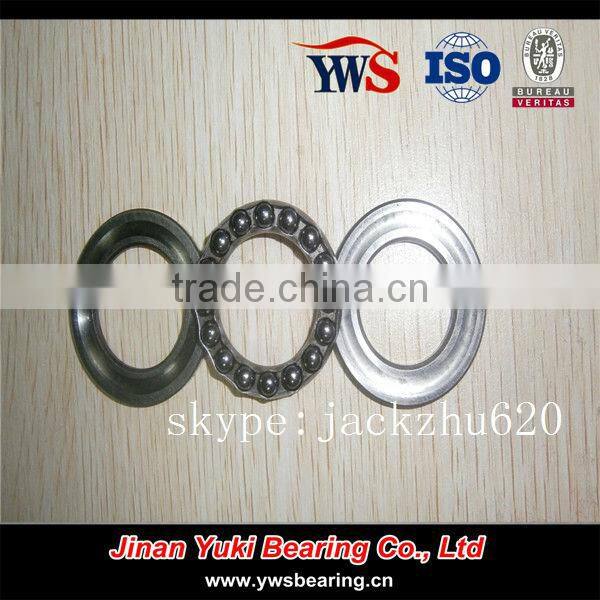

F6-14 F6-14M SF6-14M 6*14*5mm axial mini brass steel
cage chrome stainless steel thrust ball bearing F6-14 :

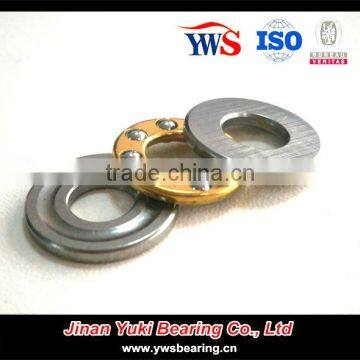

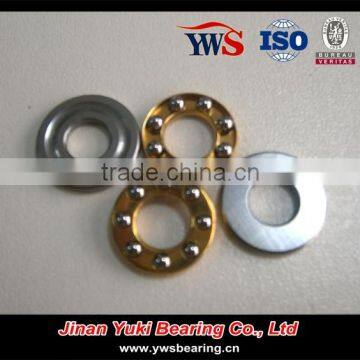

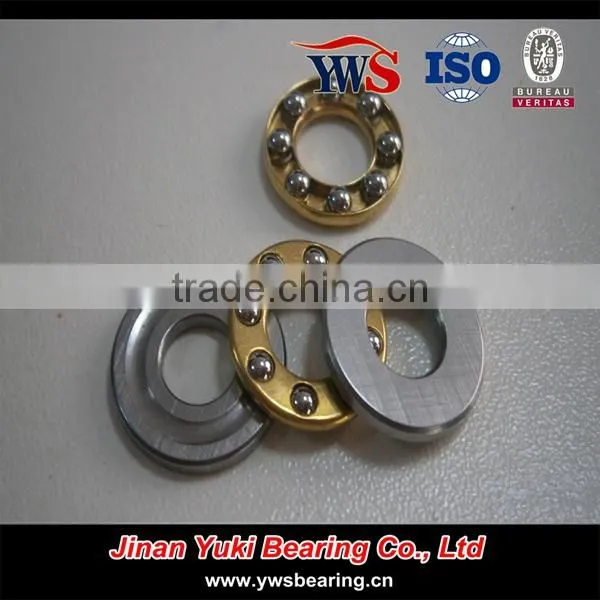

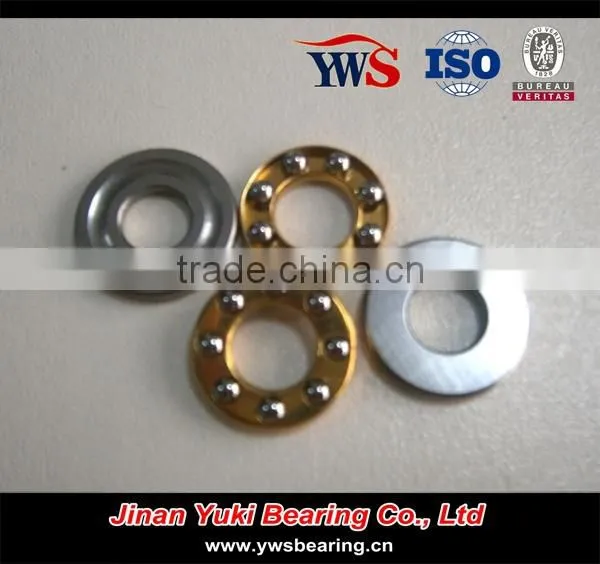

thrust ball bearing with M(brass) cage
big size thrust ball bearing

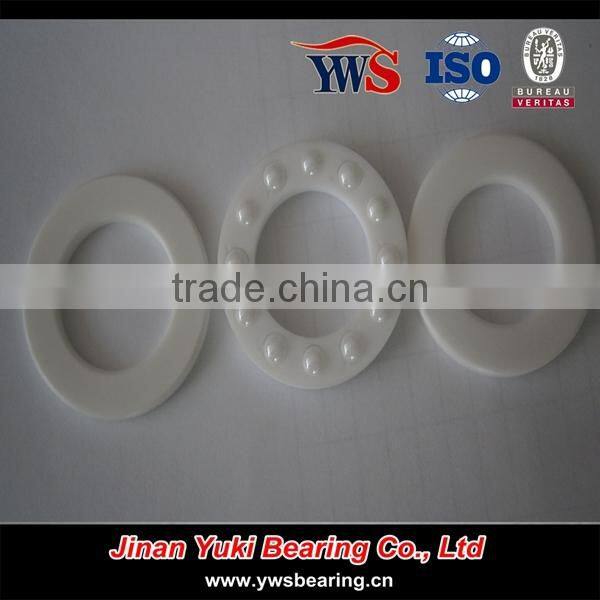

ceramic thrust ball bearing

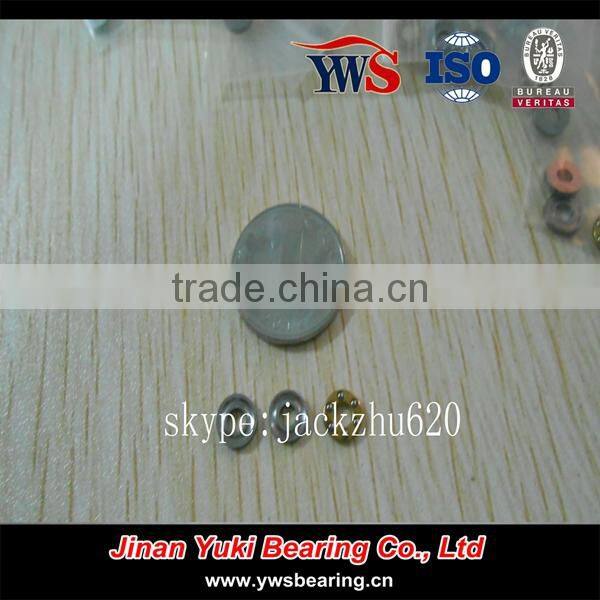

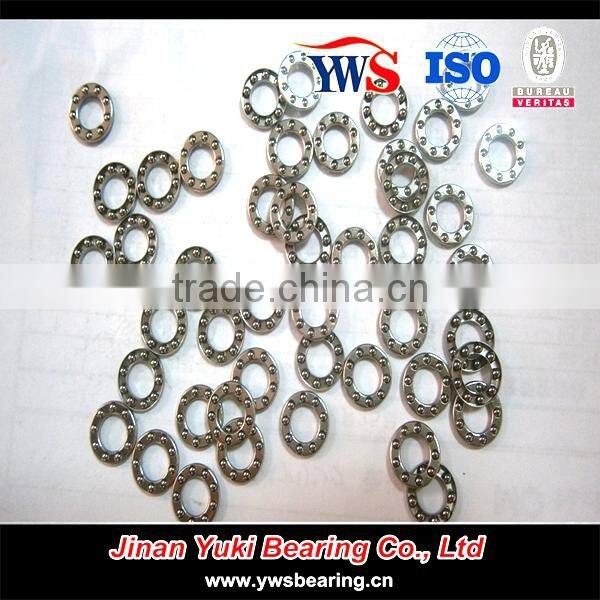

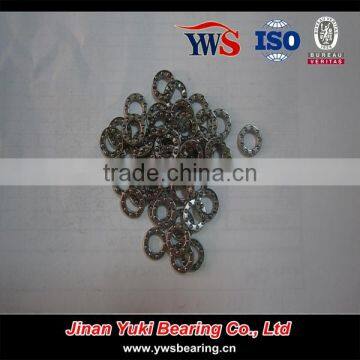

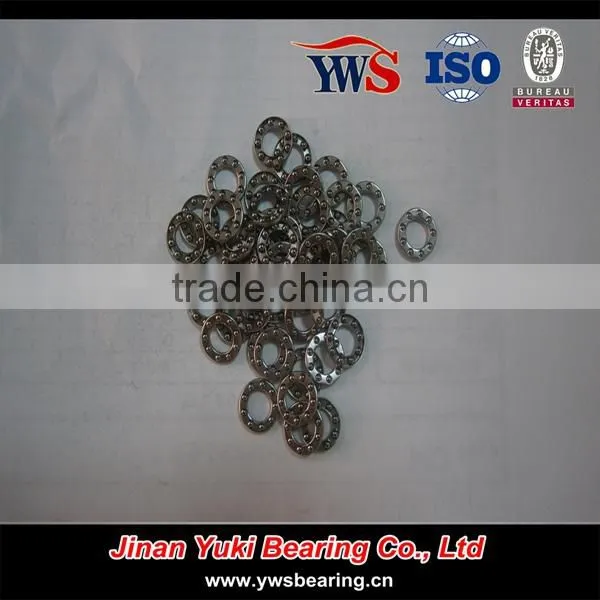

some mini thrust ball bearings:
| model | ID | OD | H |
| F2.5-6 | 2.5 | 6 | 3 |
| F3-8 | 3 | 8 | 3.5 |
| F4-9 | 4 | 9 | 4 |
| F4-10 | 4 | 10 | 4 |
| F5-10 | 5 | 10 | 4 |
| F5-11 | 5 | 11 | 4.5 |
| F5-12 | 5 | 12 | 4 |
| F6-11 | 6 | 11 | 4.5 |
| F6-12 | 6 | 12 | 4.5 |
| F6-14 | 6 | 14 | 5 |
| F7-13 | 7 | 13 | 4.5 |
| F7-15 | 7 | 15 | 5 |
| F7-15 | 7 | 15 | 5.5 |
| F7-17 | 7 | 17 | 6 |
| F8-16 | 8 | 16 | 5 |
| F8-19 | 8 | 19 | 7 |
| F9-17 | 9 | 17 | 5 |
| F9-20 | 9 | 20 | 7 |
| F10-18 | 10 | 18 | 5.5 |
| F12-21 | 12 | 21 | 5 |
| F12-23 | 12 | 23 | 7.5 |
| 2805 | 11.1 | 22.2 | 6.35 |
| model | Id | OD | H | basic dynamic load rating Cr(N) | Cor(N) | ||
| rpm | |||||||
| Grease lubrication | Oil lubrication | ||||||
| 51100 | 10 | 24 | 9 | 10 | 14 | 6500 | |
| 51200 | 10 | 26 | 11 | 12.7 | 17.1 | 5700 | 8800 |
| 51101 | 12 | 26 | 9 | 10.3 | 15.4 | 6500 | 10000 |
| 51201 | 12 | 28 | 11 | 13.2 | 19 | 5400 | 8300 |
| 51102 | 15 | 28 | 9 | 10.5 | 16.8 | 6100 | 9400 |
| 51202 | 15 | 32 | 12 | 16.6 | 24.8 | 4900 | 7500 |
| 51103 | 17 | 30 | 9 | 10.8 | 18.2 | 6100 | 9400 |
| 51203 | 17 | 25 | 12 | 17.2 | 27.3 | 4900 | 7500 |
| 51104 | 20 | 25 | 10 | 14.2 | 24.7 | 5100 | 7900 |
| 51204 | 20 | 40 | 14 | 22.3 | 37.7 | 3900 | 6000 |
| 51105 | 25 | 42 | 11 | 19.5 | 37.2 | 4400 | 6800 |
| 51205 | 25 | 47 | 15 | 27.8 | 50.4 | 3600 | 5500 |
| 51106 | 30 | 47 | 11 | 20.4 | 42.2 | 4300 | 6600 |
| 51206 | 30 | 52 | 16 | 29.3 | 58.2 | 3400 | 5200 |
| 51107 | 35 | 52 | 12 | 20.4 | 44.7 | 3900 | 6000 |
| 51207 | 35 | 62 | 18 | 39.2 | 78.2 | 2900 | 4500 |
| 51108 | 40 | 60 | 13 | 26.9 | 62.8 | 3400 | 5300 |
| 51208 | 40 | 68 | 19 | 46.9 | 98.3 | 2700 | 4200 |
| 51109 | 45 | 65 | 14 | 27.8 | 69.1 | 3200 | 5000 |
| 51209 | 45 | 73 | 20 | 47.7 | 105 | 2600 | 4000 |
| 51110 | 50 | 70 | 14 | 28.8 | 75.4 | 3100 | 4800 |
| 51210 | 50 | 78 | 22 | 48.5 | 111 | 2300 | 3600 |
NO.2 Thrust ball bearing Characteristics :
1. Thrust ball bearing Equipped with one-way, two-way two types
2. In order to allow installation error, either one-way or two-way, can choose spherical self-aligning spherical seat cushion type or with spherical seat type.
3. High quality steel - used can extend bearing life highest 80% super clean steel
4. The height of the grease technology - NSK lubricants technology can make the life of the grease to extend and improve the performance of the bearing
5. The high grade ball - quiet and smooth when high-speed rotation
6. Use of options in the ring, can allow installation error.
NO.3 Thrust ball bearing Application :
Thrust ball bearing applies only to bear a part of the axial load and low speed, such as crane hook, vertical pumps, vertical centrifuge, jack, low speed reducer, etc. The shaft of the bearing ring, seat ring and rolling body is separate, can be installed separately.
NO.4 Thrust ball bearing about us:
Products name | Ball Bearing, High grade ball high rpm axial load Thrust ball bearing |
Brand name | YWS or OEM Brands |
ID size | Standard and non-standard sizes available |
Material | Carbon Steel / Chrome Steel |
Closures | Open, metal Sealed, rubber sealed, Nylon sealed |
Types | For non standard bearing,there are many different types with various sizes for our clients and we can alsodesign or develop customized products as per the samples or drawings provided by our clients. |
Delivery date | 2-25 days |
Payment terms | A: 30% T/T in advance .70% against copy of B/L B.30% T/T in advance .70% against L/C at sight C.Western union D.Paypal |
About us | Established in 2004, Jinan yuki bearing Co., Ltd. is a sino-japanese joint ventured company and one of the leading bearing manufacturers in China. With 20 years’ experience, advanced manufacturing facilities and excellent management staff, we can produce products that are equivalent to the world leading brand bearings. We have our own bearing brand YWS and also distribute bearings of global brands, |
Package | A.Polybag +Box+Carton B.Tube+Box+Carton C.As per customer's request |
|
|
Thrust ball bearing
Thrust ball bearing
Thrust ball bearing
Thrust ball bearing
Thrust ball bearing
