51311 Thrust Ball Bearings

51311 Thrust Ball Bearings thumbnail-1
51311 Thrust Ball Bearings photo-1
US$ 0.4 - 200 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
YWS
Bore Size:
10, 100
Outside Diameter:
24, 210
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS
Bore Size 10, 100
Outside Diameter 24, 210
Model Number 51202 51109 51112 51416
Precision Rating p0 p6 p5
Seals Type open
Number of Row Single Row
Place of Origin Shandong, China

Specifications

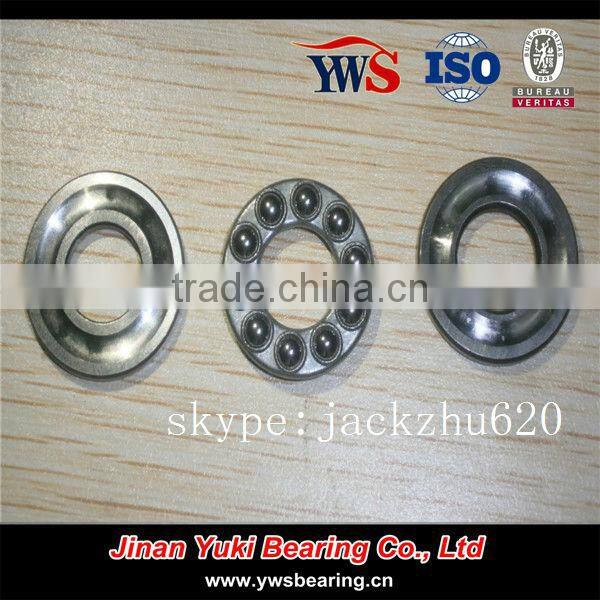

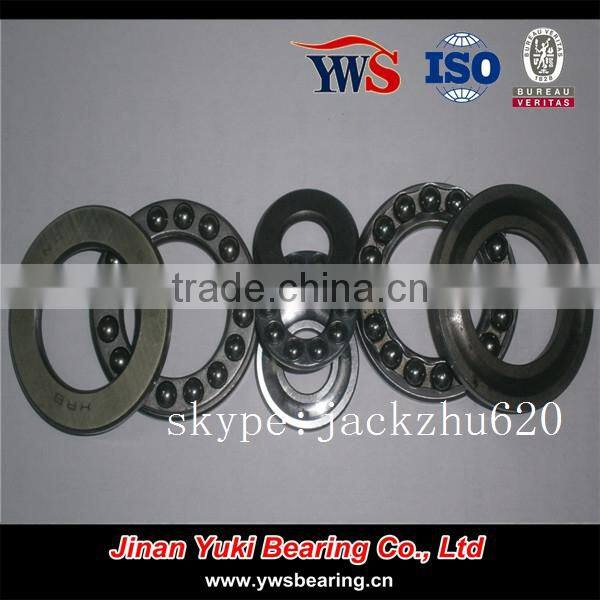

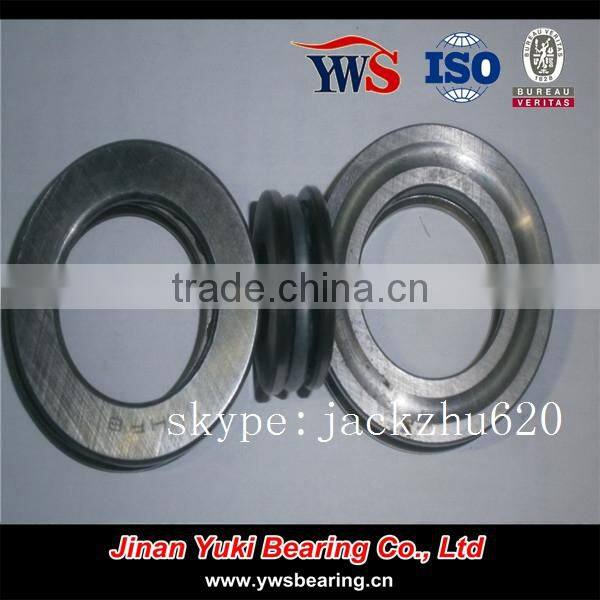

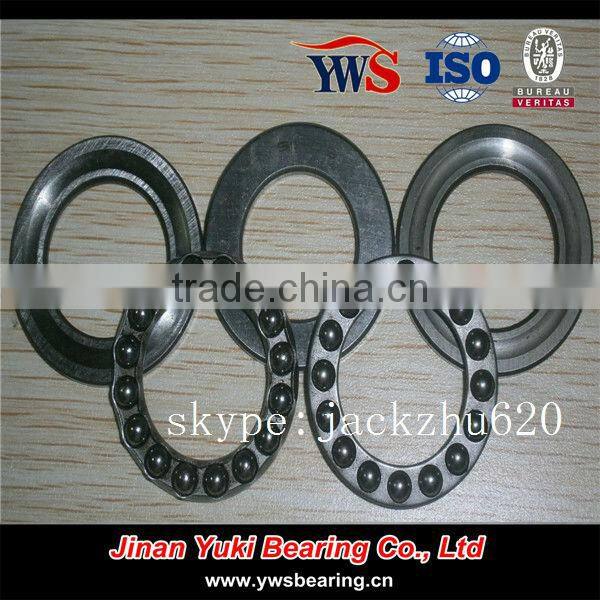

51311 thrust ball bearings:
1.Super clean steel
2.One-way, two-way
3.High grade steel ball
4.OEM high copy

51311 thrust ball bearings



  If there is anything not satisfied,you can Return or Replacement,
we have the Fedex DHL account.Worthy choice, to help you succeed



51311 thrust ball bearings  ;



51311 thrust ball bearings51311 thrust ball bearings51311 thrust ball bearings51311 thrust ball bearings51311 thrust ball bearings



51311 thrust ball bearings51311 thrust ball bearings



NO.1 Thrust ball bearing Type:

According to the stress concentration points one-way thrust ball bearings and two-way thrust ball bearings. One-way thrust ball bearings, can withstand a one-way axial load. Bidirectional thrust ball bearing, it can be subject to bi-directional load. Bidirectional thrust ball bearing, which cooperate with shaft. Angled seat installation of spherical bearing, has the self-aligning properties, can reduce the influence of the installation error. Thrust ball bearing can't bear radial load, limit rotational speed is low.


NO.2 Thrust ball bearing Characteristics :



1. Thrust ball bearing Equipped with one-way, two-way two types

2. In order to allow installation error, either one-way or two-way, can choose spherical self-aligning spherical seat cushion type or with spherical seat type.

3. High quality steel - used can extend bearing life highest 80% super clean steel

4. The height of the grease technology - lubricants technology can make the life of the grease to extend and improve the performance of the bearing

5. The high grade ball - quiet and smooth when high-speed rotation

6. Use of options in the ring, can allow installation error.



NO.3 Thrust ball bearing Application :



Thrust ball bearing applies only to bear a part of the axial load and low speed, such as crane hook, vertical pumps, vertical centrifuge, jack, low speed reducer, etc. The shaft of the bearing ring, seat ring and rolling body is separate, can be installed separately.







 NO.4 Thrust ball bearing about us:



Products name

Ball Bearing,Deep Groove Ball Bearing

Brand name

YWS or OEM Brands

ID size

Standard and non-standard sizes available

Material

Carbon Steel / Chrome Steel

Closures

Open, metal Sealed, rubber sealed, Nylon sealed

Types

For non standard bearing,there are many different types with various sizes for our clients and we can alsodesign or develop customized products as per the samples or drawings provided by our clients.

Delivery date

2-25 days

Payment terms

A: 30% T/T in advance .70% against copy of B/L

B.30% T/T in advance .70% against L/C at sight

C.Western union

D.Paypal

About us

Established in 2004, Jinan yuki bearing Co., Ltd. is a sino-japanese joint ventured company and one of the leading bearing manufacturers in China. With 20 years’ experience, advanced manufacturing facilities and excellent management staff, we can produce products that are equivalent to the world leading brand bearings. We have our own bearing brand YWS and also distribute bearings of global brands,

Package

A.Polybag +Box+Carton

B.Tube+Box+Carton

C.As per customer's request









model d(mm) D(mm) T(mm) model d(mm) D(mm) T(mm)
51100 10 24 9 51109 45 65 14
51200 10 26 11 51209 45 73 20
51101 12 26 9 51309 45 85 28
51201 12 28 11 51409 45 100 39
51102 15 28 9 51110 50 70 14
51202 15 32 12 51210 50 78 22
51103 17 30 9 51310 50 95 31
51203 17 35 12 51410 50 110 43
51104 20 35 10 51111 55 78 16
51204 20 40 14 51211 55 90 25
51105 25 42 11 51311 55 105 35
51205 25 47 15 51411 55 120 48
51305 25 52 18 51112 60 85 17
51405 25 60 24 51212 60 95 26
51106 30 47 11 51312 60 110 35
51206 30 52 16 51412 60 130 51
51306 30 60 21 51113 65 90 18
51406 30 70 28 51213 65 100 27
51107 35 52 12 51313 65 115 36
51207 35 62 18 51413 65 140 56
51307 35 68 24 51114 70 95 18
51407 35 80 32 51214 70 105 27
51108 40 60 13 51314 70 125 40
51208 40 68 19 51414 70 150 60
51308 40 78 26
51408 40 90 36





model d(mm) D(mm) T(mm) model d(mm) D(mm) T(mm)
51122 110 145 25 51222 110 160 38
51122K 110 145 28 51224 120 170 39
51122S 110 145 38 51226 130 190 45
51124 120 155 25 51228 140 200 46
51126 130 170 30 51230 150 215 50
51128 140 180 31 51230M 150 215 50
51128M 140 180 31 51232 160 225 51
51130 150 190 31 51232M 160 225 51
51130M 150 190 31 51234 170 240 55
51132 160 200 31 51234M 170 240 55
51132M 160 200 31 51236 180 250 56
51134 170 215 34 51236M 180 250 56
51134M 170 215 34 51238 190 270 62
51136 180 225 34 51238m 190 270 62
51136M 180 225 34 51240 200 280 62
51138 190 240 37 51240m 200 280 62
51138M 190 240 37 51244 220 300 63
51140 200 250 37 51244m 220 300 63
51140M 200 250 37 51248m 240 340 78
51144 220 270 37 51252m 260 360 79
51144M 220 270 37 51256m 280 380 90
51148M 240 300 45 51260 300 420 95
51152M 260 320 45 51264 320 440 95
51156 280 350 53 51268 340 460 96
51160 300 380 62 51272 360 500 110
51164 320 400 63 51280 400 540 112
569164 320 400 48 51288 440 600 130
51168 340 420 64 51292 460 620 130
51172 360 440 65 512/500 500 670 135
57172V 360 440 36
51176 380 460 65
51180 400 480 65
51184 420 500 65
569184 420 500 48
59188 440 540 60
51192 460 560 80
51196 480 580 80
511/500 500 600 80
511/530 530 640 85
5691/600 600 710 67









51311 thrust ball bearings

                                              Thrust ball bearing

51311 thrust ball bearings

                                         Thrust ball bearing
