Home > Industrial Equipment & Components > Bearing > Taper Roller Bearing > Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E

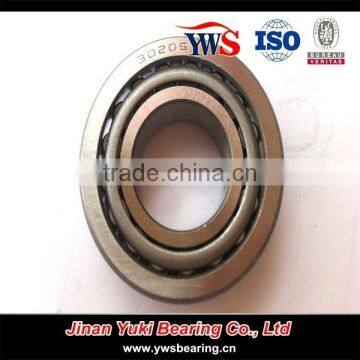

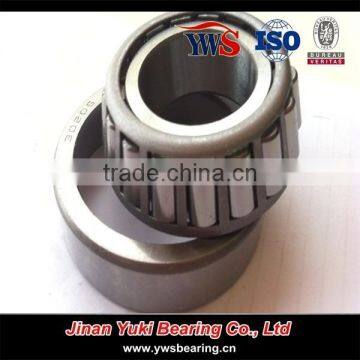

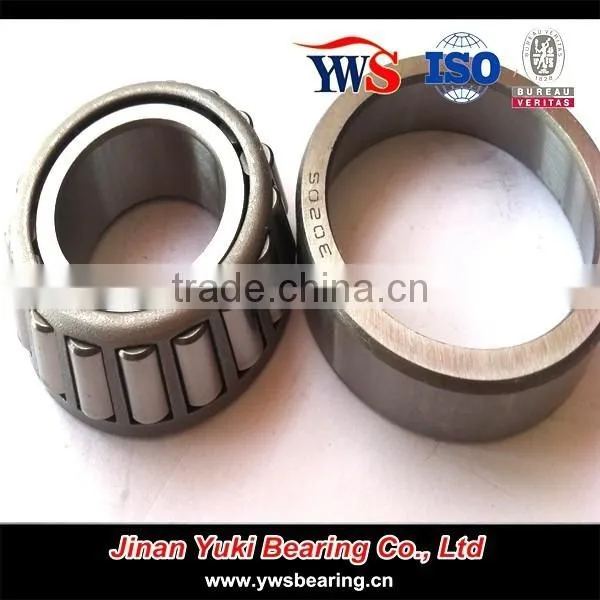

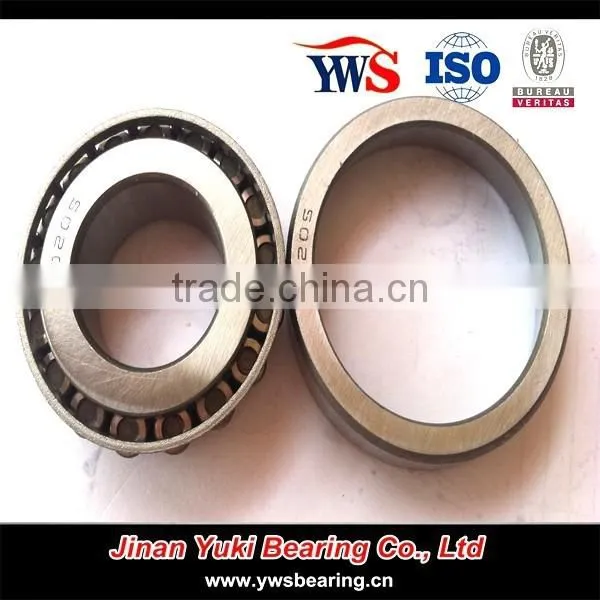

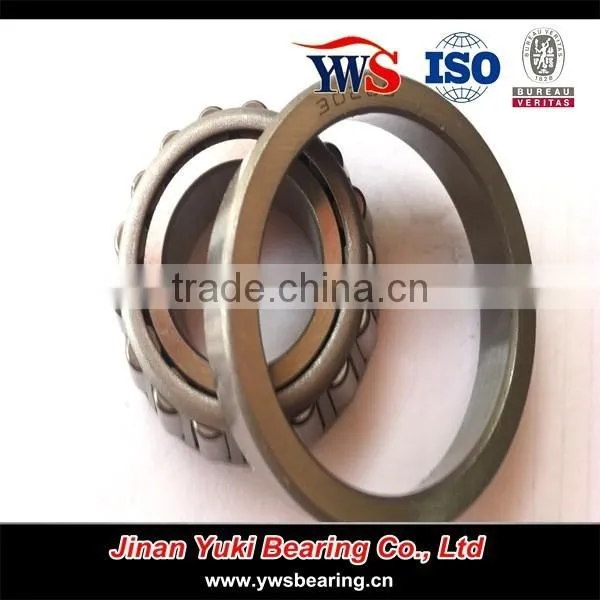

Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E

Jinan Yuki Bearing Co., Ltd.
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E thumbnail-1
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E thumbnail-2
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E thumbnail-3
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E thumbnail-4
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E thumbnail-5
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E thumbnail-6
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E photo-1
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E photo-2
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E photo-3
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E photo-4
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E photo-5
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E photo-6
US$ 0.5 - 9 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
YWS or OEM
Bore Size:
35, 540
Outside Diameter:
15, 260
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS or OEM
Bore Size 35, 540
Outside Diameter 15, 260
Model Number 30205
Precision Rating ABEC-1(P0),ABEC-3(P6),ABEC-5(P5),ABEC-7(P4)
Seals Type open
Number of Row Single Row
Place of Origin Shandong, China

Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E

Product Description





Related Products



If you need wheel hub bearing,please Click the next picture:









If you need ball bearing,please Click the next picture:







If you need one way bearing,please Click the next picture:







Packaging & Shipping



taper roller bearing specification

Structure:

Taper

Type:

Roller

Brand Name:

yws or other brands

Bore Size:

21.430 - 280 mm

Outside Diameter:

45.237 - 380 mm

Model Number:





Precision Rating:

P0 P5 P6

Seals Type:

open zz rs

Number of Row:

Single Row

Place of Origin:

Shandong,China

Material::

Chrome steel,carbon steeel .stainless steel POM plastic

Hardness:::

HRC60-HRC65

Cage:::

Brass,Steel,nylon

HS::

84822000

Quality::

Original,OEM brand,high quality.

Rotational Speed::

1000-4000

ServiceRange::

OEM brand,Specially produce diversified brand for customer Require







taper roller bearing feature

Tapered roller bearings have taper-formed raceways on inner and outer rings, and have taper formed rollers between raceways.



If the conical surface extension, it will eventually converge in the bearing axis on a bit.



  • This kind of bearings are generally used to support combined load mainly consisting of radial load.Bearing’s axial bearing capacity by contact angle a that outer raceway point of view decision.
  • The greater the angle,the axial bearing capacity is the bigger.
  • Tapered roller bearings are separable bearings.
  • Their rollers,cage and inner ring are called as cone and outer ring are named as cup.
  • Cone and cup can be mounted respectively.
  • The bearings are classified by elements as single row,double row and multiple row bearings.



Bearing Catalog



modelIDODWCrCorGrease lubrication speedOil lubrication speedweight
(mm)(mm)(mm)(kN)(kN)(r/min)(r/min)(kg)
3020215351114.913.412000160000.053
3024422040073————35.5
303402004208011201450820110053.5
30352260540114————108
32205257224.25————0.174
3030215421322.821.59000120000.094
3020317401220.821.89000120000.079
3030317471428.227.28500110000.129
3230317471931.929.99400130000.17
3290420371213.217.59500130000.056
320042042152528.28500110000.095
3020420471428.230.58000100000.126
3030420521530.528.48300110000.17
3230420522142.846.2750095000.23
329/2222401215208500110000.065
320/222244152630.28000100000.1
3290525421216216300100000.064
320052547152834750095000.11
3300525471732.542.5750095000.129
3020525521532.237700090000.154
332052552224755.8700090000.216
3030525621746.848630080000.263
3130525621740.546630080000.262
3230525622461.568.8630080000.368
329/2828451216.822.8750D95000.069
320/2828521631.540.5670085000.142
332/282858245868.2630080000.286
329063047121723.2700090000.072
32006X230551627.835.5630080000.16
3200630551735.846.8630080000.17
3300630552043.858.8630080000.201
30206306217.543.250.5600075000.231
3220630622051.863.8600075000.287
3320630622563.875.5600075000.342
303063072215963560070000.387
23334170360120—————
3130630722152.560.5560070000.392
3230630722781.596.5560070000.562
329/3232521423.832.5630080000.106
320/3232581736.549.2600075000.187
