We have been doing bearings more than 20 years,and provive different bearings.
Please contact us,So we can help you select the right model nos!
Hot Sales
608 bearing ceramic bearing brand bearing linear rail

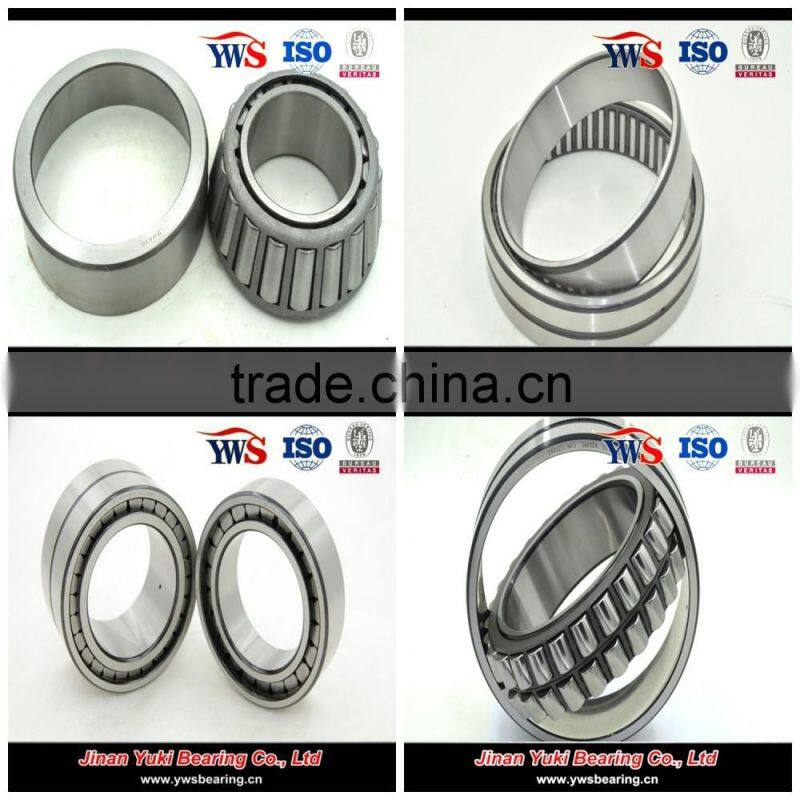

22222k Spherical Cylindrical taper roller bearings

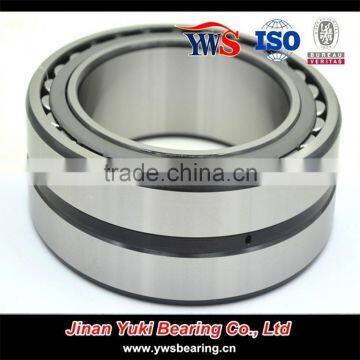

If you need split bearing,please Click the next picture:

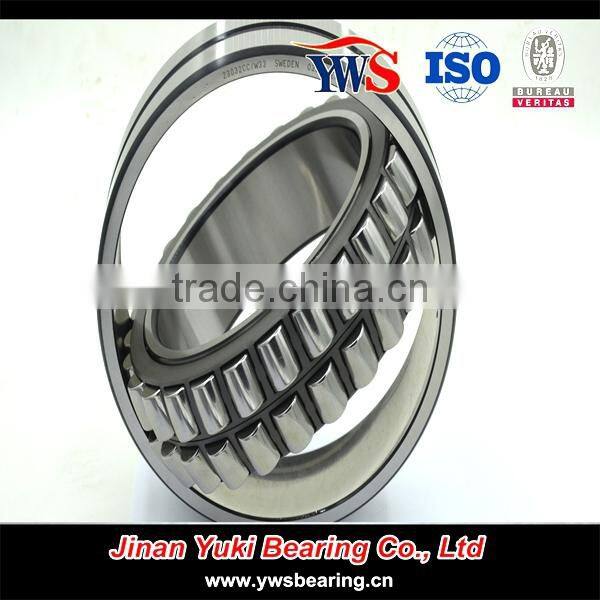

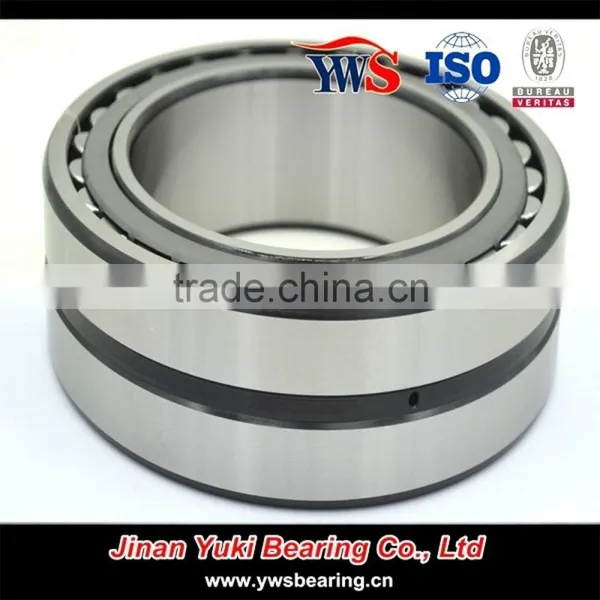

Split roller bearing include:spherical roller bearing,SNL pillow block, Adapter sleeve, Positioning ring

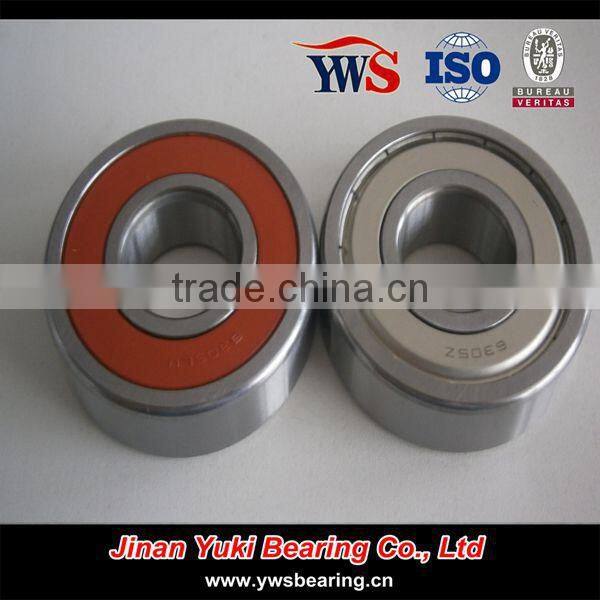

If you need ball bearing,please Click the next picture:

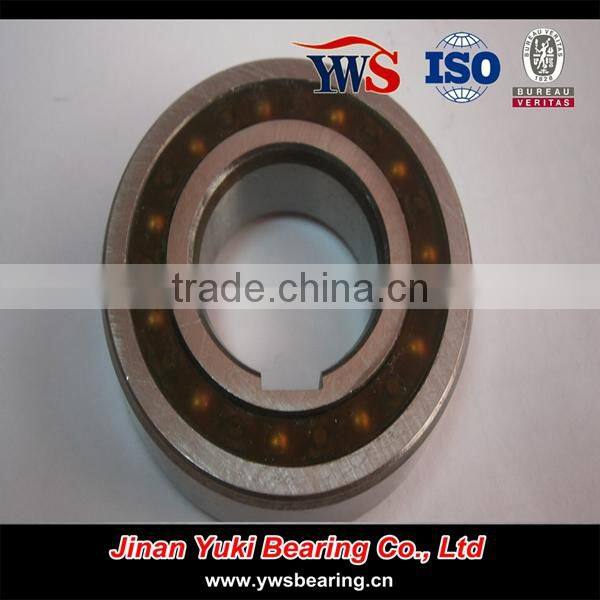

If you need one way bearing,please Click the next picture:
Single Box Packing + Plastic bag + Paper carton + Poly Wooden Pallet
roller bearings feature

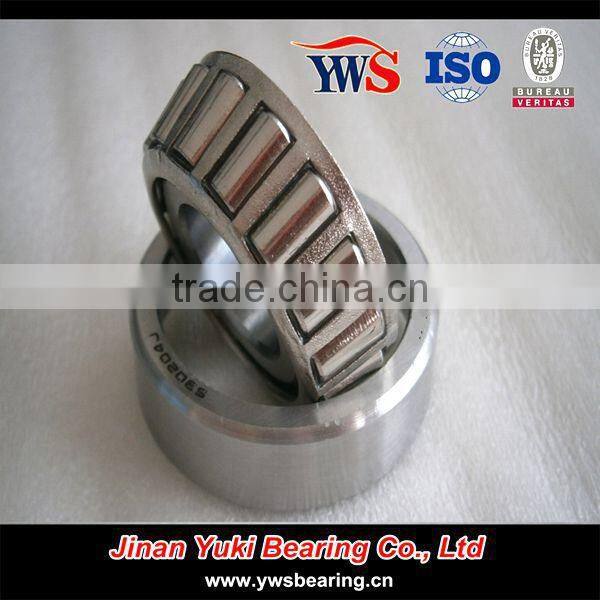

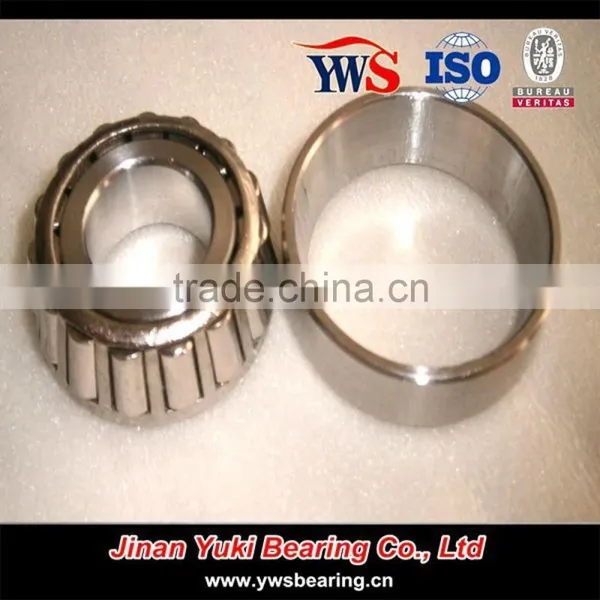

Tapered roller bearings have taper-formed raceways on inner and outer rings, and have taper formed rollers between raceways.
If the conical surface extension, it will eventually converge in the bearing axis on a bit.
- This kind of bearings are generally used to support combined load mainly consisting of radial load.Bearing’s axial bearing capacity by contact angle a that outer raceway point of view decision.
- The greater the angle,the axial bearing capacity is the bigger.
- Tapered roller bearings are separable bearings.
- Their rollers,cage and inner ring are called as cone and outer ring are named as cup.
- Cone and cup can be mounted respectively.
- The bearings are classified by elements as single row,double row and multiple row bearings.
Our roller bearings factory
roller bearings specification
Products name |
Roll Bearing, Tapered roller bearing |
Brand name |
YWS or OEM Brands |
ID size |
Standard and non-standard sizes available |
Material |
Carbon Steel / Chrome Steel |
Closures |
Open, metal Sealed, rubber sealed, Nylon sealed |
Types |
For non standard bearing,there are many different types with various sizes for our clients and we can alsodesign or develop customized products as per the samples or drawings provided by our clients. |
Delivery date |
2-25 days |
Payment terms |
A: 30% T/T in advance .70% against copy of B/L B.30% T/T in advance .70% against L/C at sight C.Western union D.Paypal |
About us |
Established in 2004, Jinan yuki bearing Co., Ltd. is a sino-japanese joint ventured company and one of the leading bearing manufacturers in China. With 20 years’ experience, advanced manufacturing facilities and excellent management staff, we can produce products that are equivalent to the world leading brand bearings. We have our own bearing brand YWS and also distribute bearings of global brands, |
Package |
A.Polybag +Box+Carton B.Tube+Box+Carton C.As per customer's request |
roller bearings model nos
| Dimension(mm) | Rated Load(N) | Model Number | Weight(kg) | |||||||
| d | D | T | B | C | r1 | r2 | Cr | Cor | ||
| 65 | 90 | 17 | 17 | 14 | 1 | 1 | 49000 | 86500 | 32913 | 0.323 |
| 100 | 23 | 23 | 17.5 | 1.5 | 1.5 | 86500 | 132000 | 32013X | 0.646 | |
| 100 | 27 | 27 | 21 | 1.5 | 1.5 | 97500 | 156000 | 33013 | 0.76 | |
| 110 | 34 | 34 | 26.5 | 1.5 | 1.5 | 148000 | 218000 | 33113 | 1.32 | |
| 120 | 24.75 | 23 | 20 | 2 | 1.5 | 122000 | 151000 | 30213 | 1.18 | |
| 120 | 32.75 | 31 | 27 | 2 | 1.5 | 157000 | 202000 | 32213 | 1.55 | |
| 120 | 41 | 41 | 32 | 2 | 1.5 | 202000 | 282000 | 33213 | 2.04 | |
| 140 | 36 | 33 | 23 | 3 | 2.5 | 173000 | 205000 | 30313DJ | 2.43 | |
| 140 | 36 | 33 | 28 | 3 | 2.5 | 200000 | 233000 | 30313 | 2.51 | |
| 140 | 51 | 48 | 39 | 3 | 2.5 | 267000 | 340000 | 32313 | 3.6 | |
| 70 | 100 | 20 | 20 | 16 | 1 | 1 | 70000 | 113000 | 32914 | 0.494 |
| 110 | 25 | 25 | 19 | 1.5 | 1.5 | 404000 | 158000 | 32014XJ | 0.869 | |
| 110 | 31 | 31 | 25.5 | 1.5 | 1.5 | 127000 | 204000 | 33014 | 1.11 | |
| 120 | 37 | 37 | 29 | 2 | 1.5 | 117000 | 262000 | 33114 | 1.71 | |
| 125 | 26.25 | 24 | 21 | 2 | 1.5 | 132000 | 163000 | 30214 | 1.3 | |
| 125 | 33.25 | 31 | 27 | 2 | 1.5 | 157000 | 205000 | 32214 | 1.66 | |
| 125 | 41 | 41 | 32 | 2 | 1.5 | 209000 | 299000 | 33214 | 2.15 | |
| 140 | 39 | 35.5 | 27 | 3 | 3 | 177000 | 229000 | T7FC070 | 2.55 | |
| 150 | 38 | 35 | 25 | 3 | 2.5 | 192000 | 229000 | 30314DJ | 2.94 | |
| 150 | 38 | 35 | 30 | 3 | 2.5 | 227000 | 268000 | 30314 | 3.03 | |
| 150 | 54 | 51 | 42 | 3 | 2.5 | 300000 | 390000 | 32314 | 4.35 | |
| 75 | 105 | 20 | 20 | 16 | 1 | 1 | 72500 | 120000 | 32915 | 0.53 |
| 115 | 25 | 25 | 19 | 1.5 | 1.5 | 109000 | 171000 | 32015X | 0.925 | |
| 115 | 31 | 31 | 25.5 | 1.5 | 1.5 | 133000 | 220000 | 33015 | 1.18 | |
| 125 | 37 | 37 | 29 | 2 | 1.5 | 182000 | 275000 | 33115 | 1.8 | |
| 130 | 27.25 | 25 | 22 | 2 | 1.5 | 143000 | 182000 | 30215 | 1.43 | |
| 130 | 33.25 | 31 | 27 | 2 | 1.5 | 165000 | 219000 | 32215 | 1.72 | |
| 130 | 41 | 41 | 31 | 2 | 1.5 | 215000 | 315000 | 33215 | 2.25 | |
| 160 | 40 | 37 | 26 | 3 | 2.5 | 211000 | 251000 | 30315DJ | 3.47 | |
| 160 | 40 | 37 | 31 | 3 | 2.5 | 253000 | 300000 | 30315 | 3.63 | |
| 160 | 58 | 55 | 43 | 3 | 2.5 | 310000 | 420000 | 32315CA | 5.3 | |
| 160 | 58 | 55 | 45 | 3 | 2.5 | 340000 | 445000 | 32315 | 5.31 | |
