Home > Industrial Equipment & Components > Bearing > Pillow Block Bearing > UCAK208 Spherical Ball Bearing P209 Uc205

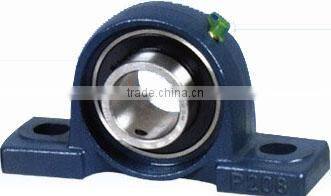

UCAK208 Spherical Ball Bearing P209 Uc205

UCAK208 Spherical Ball Bearing P209 Uc205 photo-1
US$ 30.2 - 30.2 MOQ: 100 Sets
Key Specifications
Get Latest Price
Bore Size:
12, 75
Brand Name:
YWS or OEM
Model Number:
UCAK208 spherical ball bearing, UC series, UCP series, UCF series, UCFS series..
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Bore Size 12, 75
Brand Name YWS or OEM
Model Number UCAK208 spherical ball bearing, UC series, UCP series, UCF series, UCFS series..
Place of Origin Shandong, China

UCAK208 spherical ball bearing P209 uc205

SPECIFICATION-- UCAK208

UCAK208 spherical ball bearing P209 uc205UCAK208 spherical ball bearing P209 uc205

Shaft DiaBoundary dimensions(mm)Bolt SizeBearing No.Housing No.MassBearing Unit No.
in.mmhaebs1s2gwBinKgYWS brand
1 33.31401053813191566.53414.33/8UC205-16AK2050.9UCAK205-16
 3036.7160121441419167938.115.9M14UC206AK2061.4UCAK206
1-1/16 36.7160121441419167938.115.91/2UC206-17AK2061.4UCAK206-17
1-1/8 36.7160121441419167938.115.91/2UC206-18AK2061.4UCAK206-18
1-3/16 36.7160121441419167938.115.91/2UC206-19AK2061.4UCAK206-19
1-1/4 36.7160121441419167938.115.91/2UC206-20AK2061.4UCAK206-20
 3546167127481519179142.917.5M14UC207AK2071.7UCAK207
1-1/4 46167127481519179142.917.51/2UC207-20AK2071.7UCAK207-20
1-5/16 46167127481519179142.917.51/2UC207-21AK2071.7UCAK207-21
1-3/8 46167127481519179142.917.51/2UC207-22AK2071.7UCAK207-22
1-7/16 46167127481519179142.917.51/2UC207-23AK2071.7UCAK207-23
 4049.2180136521521189849.219.0M14UC208AK2082.0UCAK208
1-1/2 49.2180136521521189849.219.01/2UC208-24AK2082.0UCAK208-24
1-9/16 49.2180136521521189849.219.01/2UC208-25AK2082.0UCAK208-25
MAIN INFORMATION of UCAK208


Pillow block housings can be used with high-capacity spherical roller bearings or self-aligning ball bearings. They are manufactured from high-strength cast iron as standard but are also available in cast steel or spheroidal graphite cast iron. The housings have a re-lubrication facility and can be used with either oil or grease lubrication.
FEATURES AND BENEFITS-- UCAK208
  • Relubrication feature is standard

    Cast iron unit with a lower base to center than the UCP series

    UCAK200 Pillow Blcok Bearing has combination of a set screw insert bearing with slinger seal design and low center base cast iron housing with anti-rotation device

  • High-grade bolts
  • Square-shape base – Facilitates alignment
  • High-precision bore – Maximizes bearing performance
SUPPORT BEARINGS-- UCAK208
UCAK208 spherical ball bearing P209 uc205


ASSESSORIES of UCAK208

Adapter sleeves, locknuts, locking washers, withdrawal sleeves

Locating rings


APPLICATION of UCAK208

Common usage for UCAK Pillow Block Bearing include: Agriculture, Automotive, Pump, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor and Fan Assemblies,Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.

UCAK208 spherical ball bearing P209 uc205



ABOUT US

Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.



UCAK208 spherical ball bearing P209 uc205



Workshop--Production Process

100% inspection during production &30% sampling before delivery

UCAK208 spherical ball bearing P209 uc205



PACKING AND SHIPMENT

UCAK208 spherical ball bearing P209 uc205





certification

UCAK208 spherical ball bearing P209 uc205UCAK208 spherical ball bearing P209 uc205

CONTACT ME FOR ANY QUESTIONS

UCAK208 spherical ball bearing P209 uc205Skype number: melissazhl1
