Home > Products > Spherical Insert ball bearings > Insert ball bearings SA 210

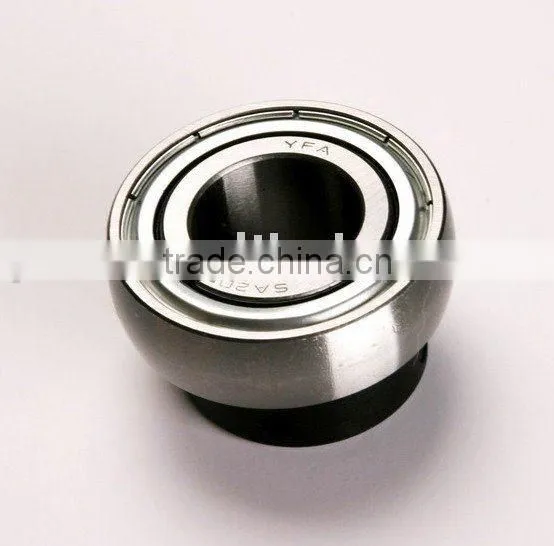

Insert ball bearings SA 210
- 1500000 Set / Sets per Month
- Qingdao
- T/T
- 162250 GA CYLINDRICAL ROLLER BEARING High Speed Wire Rod Rolling Mill Bearing
- F-546485.01. KL-H95 DEEP GROOVE BALL BEARING High Speed Wire Rod Rolling Mill Bearing
- Z-507333.ZL Four-row cylindrical bearings High Speed Wire Rod Rolling Mill Bearing
- Z-504547.ZL Cylindrical Roller Bearing Multi Row High Speed Wire Rod Rolling Mill Bearing
- Z-533575.ZL Four - row Cylindrical roller bearing High Speed Wire Rod Rolling Mill Bearing
- 507335.KL Deep Groove Ball Bearing High Speed Wire Rod Rolling Mill Bearing
Product Details
Brand Name: | YWS or OEM | Bore Size: | 50, | Outside Diameter: | 90, |
Model Number: | SA 210 | Precision Rating: | P0,P5,P6 | Seals Type: | As requirements |
Place of Origin: | Shandong, China |
Product Description
Bearing No. | Shaft Dia | Dimensions(mm) | Basic dynamic load ratings | Basic static load ratings | Weight (kg) | ||||||||||
d | D | Be | L | Bi | n | d1 | H | G | ds | ||||||
in | mm | mm | in | ||||||||||||
SA 203 (CSA) 203 | 17 | 40 | 13 | 28.6 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6X1.0 | 10-32 | 9.57 | 4.79 | 0.12 | |
SA 204 (CSA) 204 | 3/4 | 20 | 47 | 15 | 31 | 21.5 | 7.5 | 33.3 | 13.5 | 5 | M6X1.0 | 1/4-28 | 12.84 | 6.65 | 0.13 0.13 |
SA 205-14 (CSA) 205-15 (CSA) 205 (CSA) 205-16 | 7/8 15/16 0 1 | 25 | 52 | 15 | 31 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | M6X1.0 | 1/4-28 | 14.01 | 9.93 | 0.21 0.20 0.18 0.18 |
SA 206-18 (CSA) 206 (CSA) 206-19 (CSA) 206-20 | 1-1/8 0 1-3/16 1-1/4 | 30 | 62 | 18 | 35.7 | 23.8 | 9 | 44.5 | 15.9 | 6 | M8X1.0 | 5/16-24 | 19.46 | 11.31 | 0.33 0.32 0.32 0.30 |
SA 207-20 (CSA) 207-21 (CSA) 207-22 (CSA) 207 (CSA) 207-23 | 1-1/4 1-5/16 1-3/8 0 1-7/16 | 35 | 72 | 19 | 38.9 | 25.4 | 9.5 | 55 | 17.5 | 6.5 | M8X1.0 | 5/16-24 | 25.68 | 15.3 | 0.56 0.54 0.51 0.51 0.48 |
SA 208-24 (CSA) 208-25 (CSA) 208 | 1-1/2 1-9/16 0 | 40 | 80 | 22 | 43.7 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | M8X1.0 | 5/16-24 | 32.62 | 19.84 | 0.69 0.65 0.65 |
SA 209-26 (CSA) 209-27 (CSA) 209-28 (CSA) 209 | 1-5/8 1-11/16 1-3/4 0 | 45 | 85 | 22 | 43.7 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | M8X1.0 | 5/16-24 | 32.68 | 20.46 | 0.78 0.73 0.68 0.68 |
SA 210-30 (CSA) 210-31 (CSA) 210 | 1-7/8 1-15/16 0 | 50 | 90 | 22 | 43.7 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | M8X1.0 | 5/16-24 | 35.07 | 23.18 | 0.83 0.77 0.77 |
SA 211-32 (CSA) 211-34 (CSA) 211 (CSA) 211-35 | 2 2-1/8 0 2-3/16 | 55 | 100 | 24 | 48.4 | 32.5 | 12 | 76.2 | 20.7 | 8 | M10X1.25 | 3/8-24 | 43.38 | 29.22 | 0.96 0.86 0.81 0.81 |

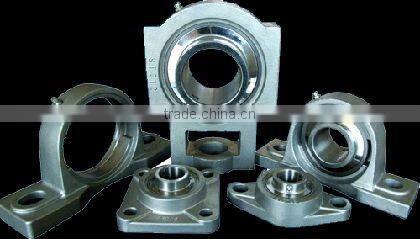

Spherical Insert ball bearings
1) The insert bearings are the deep groove ball bearings with wide inner rings
2) It inserts in housing work as a unit bearing
3) The housing is mainly casting or pressed steel
4) The bearing units are compact in design with perfect sealing devices
5) They can align with ease during operation and can be conveniently mounted or dismounted
Application:
Widely used in mines, metallurgy, reaper, textile machinery, body building equipments, motors, chain belts, chain wheels, and automobiles
