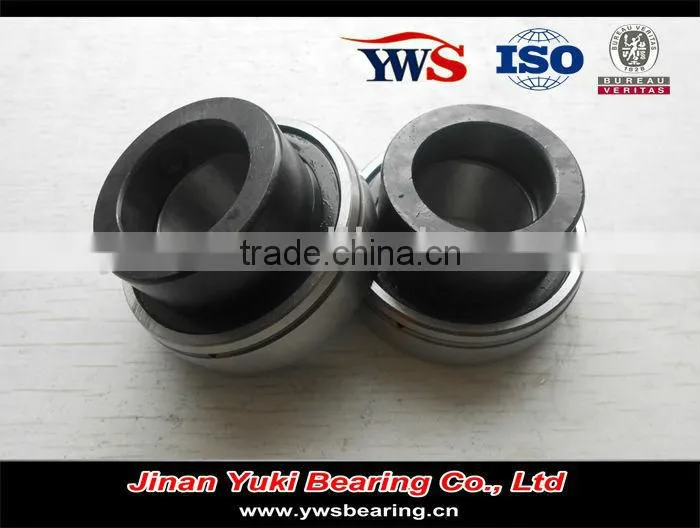

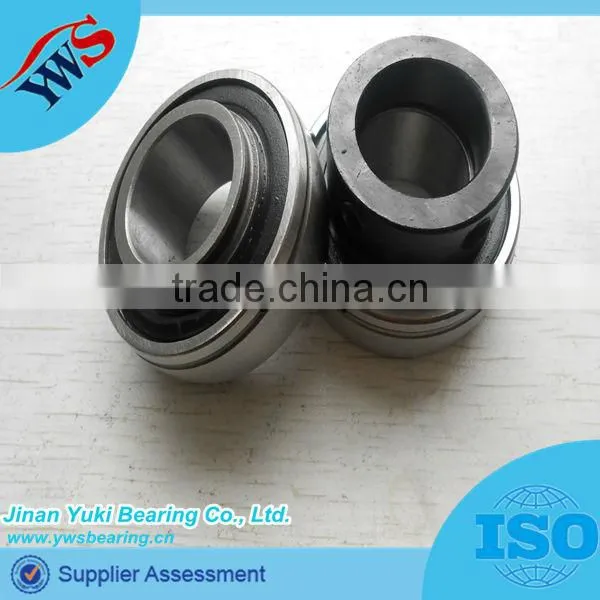

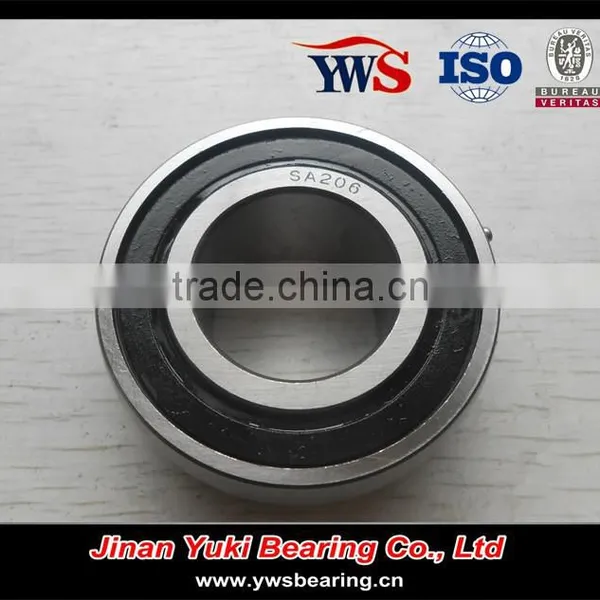

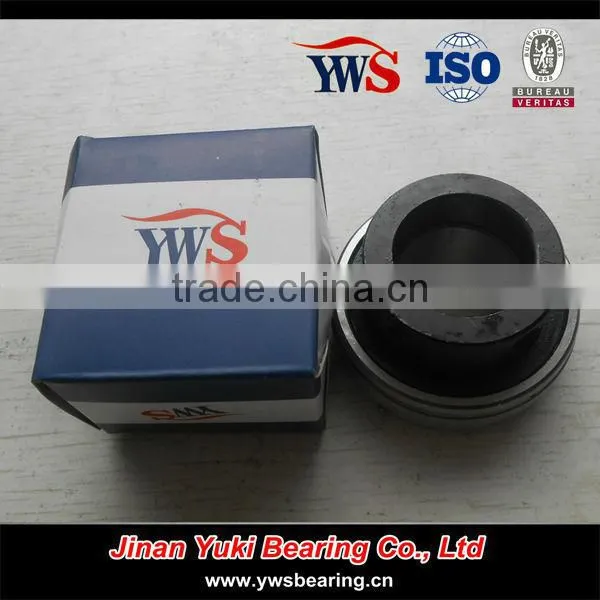

Spherical insert ball bearing SA210
The features of spherical insert ball bearings
The internal structure of the insert ball bearing is the same with that of deep groove ball bearing. But the inner race of this bearing is wider than the outer race. The outer race has the spherical surface. Insert ball bearings can self aligning with the fit between the outer race and the bearing block. Insert ball bearings are compact. It’s easy for loading and unloading. Spherical insert ball bearings often used in mining, metallurgy, textile, transportation machinery, etc.
The types of bearings we have: UC, UEL, SC, SA, SB, UD, etc.
| Model number | d(mm) | D(mm) | Basic dynamic load ratings | Bais static load ratings | Weight(kg) |
| SA203 | 17 | 40 | 9.57 | 4.79 | 0.12 |
| SA204 | 20 | 47 | 12.84 | 6.65 | 0.13 |
| SA205 | 25 | 52 | 14.01 | 9.93 | 0.21 |
| SA206 | 30 | 62 | 19.46 | 11.31 | 0.33 |
| SA207 | 35 | 72 | 25.68 | 15.3 | 0.56 |
| SA208 | 40 | 80 | 32.62 | 19.84 | 0.69 |
| SA209 | 45 | 85 | 32.68 | 20.46 | 0.78 |
| SA210 | 50 | 90 | 35.07 | 23.18 | 0.83 |
| SA211 | 55 | 100 | 43.38 | 29.22 | 0.96 |
| Jinan Yuki Bearing Co., Ltd. Address: A-216, No.8 Biaoshan South Road, Tianqiao District, Jinan, Shandong, China Tel: 0086-531-85556568 Fax: 0086-531-55621557 |
