Non-standard Plastic Bearing

Non-standard Plastic Bearing thumbnail-1
Non-standard Plastic Bearing photo-1
US$ 0.5 - 200 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
YWS OEM
Bore Size:
0.3, 100
Outside Diameter:
0.5, 120
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS OEM
Bore Size 0.3, 100
Outside Diameter 0.5, 120
Model Number 605 606 628 6008 6205zz
Precision Rating P0 P6 P5 ABEC3 ABEC5, P2 - P4 - P5 - P6 - P0
Seals Type ZZ RS OPEN
Number of Row Single Row
Place of Origin Shandong, China

Specifications

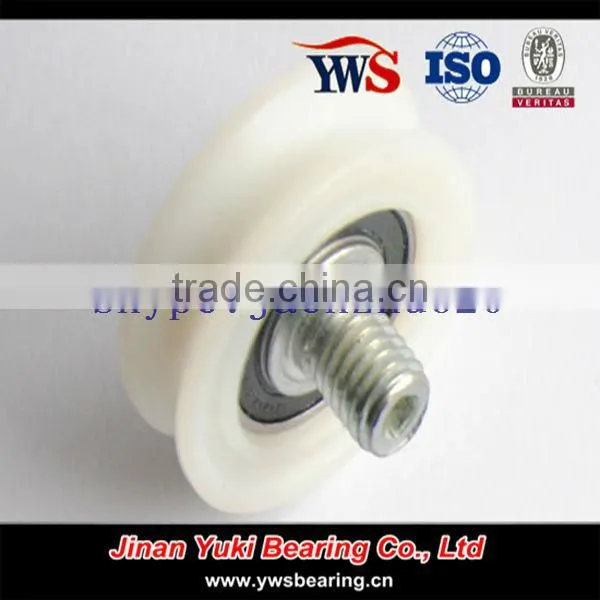

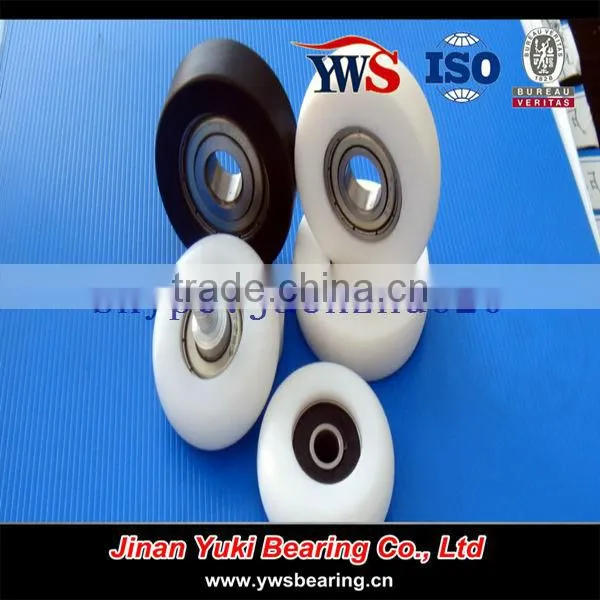

Non-standard plastic bearing:
1.material:HDPE/PE-UHMW/PP
2.high temperature
3.very strongly

  Non-standard plastic bearing :



1. Plastic bearing applicance :



1) These plastic bearing are widely used in mechanical and electrical equipment, fitness equipment, food machinery, furniture and decorating materials . (Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines)

2) The plastic bearing also used in equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries.





2.Plastic Bearing Specification information;





1> POM and PA material with good mechanical strength and wear resistance, suitable for the production of precision plastic bearings, working temperature from -60 °C to 100 °C, high strength and smooth surface, basically does not appear tension.



2> POM and PA material with good self-lubricating properties and low coefficient of friction can be applied on the basis of maintaining the traditional advantages of plastic bearings, precision and higher speed operation.



3> POM plastic bearing is the most widely used of all plastics bearing a kind of general internal and external ball materials with POM or PA, to maintain the frame of glass fiber reinforced nylon 66 (GRPA66-25).



4> POM plastic bearing ball glass ball, stainless steel balls or ceramic balls, such bearing alkaline environment, but not suitable for acidic corrosion



Environments.



 5> POM plastic bearings features:



(1). Rigid, high hardness, even at low temperatures, high impact strength;



(2). Excellent flexibility, creep resistance;



(3) high thermal stability and very good dimensional stability;



(4). Sliding performance, wear;



(5). Physiologically inert, suitable for contact with food.



(6). Even in strong acid and strong oxidizing agents, bonding paint





6>  POM plastic bearings main purposes:



Mechanical and electrical equipment, fitness equipment, food machinery, furniture and decorating materials



1.HDPE (high density polyethylene)

there two polyolefins offer resistance to almost all acids and bases,detergents and hot water,PE has good insulation properties and is easy to weld,the operating of the HDPE is from -50 to +90 degree

advantage:                                                                                                         disadvantages:

1.light weight                                                                                                     ft surface

2.high toughness                                                                                             2.HF welding not recommended

3.high elongation                                                                                             3.difficult to varnish and glue

4.very good electrical and dielectric properties                                          4.not wather resistant

5.very low water absorption

6.high chemical resitance

7.good protection against stress cracking

8.food safe



2.PE-UHMW:it's muy buenas propiedades de deslizamiento than HDPE



3.PP (polypropylene ) shows a high mechanical strength,ensile strength, but a low notched impact strength .pp resists stress cracking and it is easy to weld at minus temperatures it can get brittle.the chemical and electrical properties are very good,the temperature ranges between +5  degree and+ 100 degree.

advantage:                                                                                                         disadvantages:

1.low density                                                                                                   1.low oxidation resistance

2.good heat resistance                                                                                 2.low abrasion resistance

3.high tensile strength highsurface strength                                            3.HF-welding not possible

4.high chemical resistance                                                                          4.difficult to varnish and glue

5.food safe



 Non-standard plastic bearing

Bearing No. Dimensions(mm) Weight Bearing No. Dimensions(mm)
  d D B (kg)   d D B
6000ZZ 10 26 8 0.019 6205ZZ 25 52 15
6001ZZ 12 28 8 0.022 6206ZZ 30 62 16
6002ZZ 15 32 9 0.03 6207ZZ 35 72 17
6003ZZ 17 35 10 0.036 6208ZZ 40 80 18
6004ZZ 20 42 12 0.067 6209ZZ 45 85 19
6005ZZ 25 47 12 0.074 6210ZZ 50 90 20
6006ZZ 30 55 13 0.112 6300ZZ 10 35 11
6007ZZ 35 62 14 0.146 6301ZZ 12 37 12
6008ZZ 40 68 15 0.182 6302ZZ 15 42 13
6009ZZ 45 75 16 0.229 6303ZZ 17 47 14
6010ZZ 50 80 16 0.249 6304ZZ 20 52 15


 Non-standard plastic bearingNon-standard plastic bearingNon-standard plastic bearingNon-standard plastic bearingNon-standard plastic bearing

 Non-standard plastic bearing

                                                                   Plastic bearing
