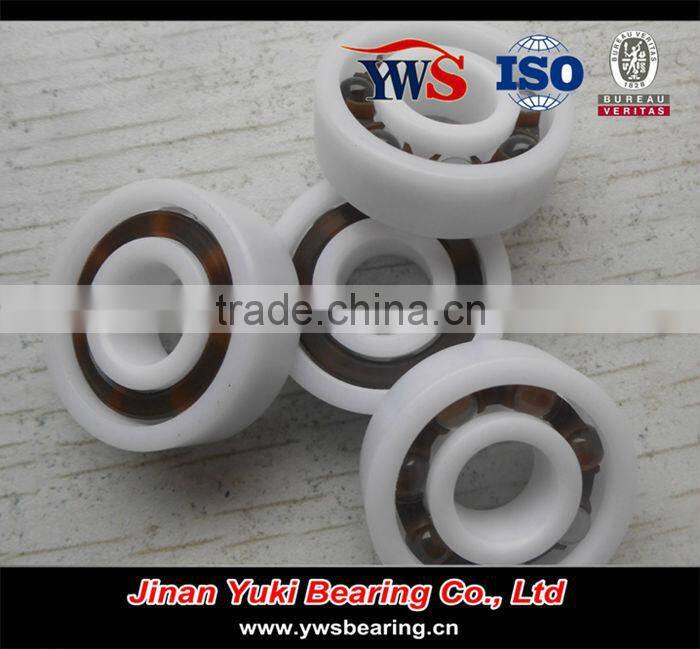

Inch Size POM Plastic Deep Groove Ball Bearings
Specifications
1.high quality and good price
2. Excellent running accuracy, Spaces save
3.low noise and Long life
4.ISO9001:2008
5.Perfect OEM service
Our advantage of Inch Size POM Plastic Deep Groove Ball Bearings
1,Specializing in Inch Size POM Plastic Deep Groove Ball Bearings for 10 years,have original bearings"AXB"
2,Own ISO9001 international quality system certification
3,Well-equipped testing equipment and strong technical force
4,High quality and competitive price
5,Wide range and better choice
Inch Size POM Plastic Deep Groove Ball Bearings
| model |
Shape Dimension(mm) |
Steel Ball |
Basic Load Rating(KN) |
Max Speed (rpm) |
(kg) Weight (kg) |
||||||||||
| Bore d |
Quter Diameter D |
Width B |
Radius r min |
Size mm |
Quantity Number |
Dynamic Cr |
Static Cor |
Grease |
Oil |
||||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||
| 6000 Series | |||||||||||||||
| 6000 | 10 | 0.3937 | 26 | 1.0236 |
8 | 0.3149 | 0.3 | 0.0236 | 4.763 | 7 | 4.58 | 1.98 | 20000 | 28000 | 0.018 |
| 6001 | 12 | 0.4724 | 28 | 1.1024 | 8 | 0.3149 | 0.3 | 0.0236 |
4.763 |
8 | 5.1 | 2.38 | 19000 | 26000 | 0.02 |
| 6002 | 15 | 0.5906 | 32 | 1.2598 |
9 | 0.3543 | 0.3 | 0.0236 |
4.763 |
9 | 5.58 | 2.85 | 18000 | 24000 | 0.026 |
| 6003 | 17 | 0.6693 | 35 | 1.378 | 10 | 0.3937 | 0.3 | 0.0236 |
4.763 |
10 | 6 | 3.25 | 17000 | 22000 | 0.036 |
| 6004 | 20 | 0.7874 | 42 | 1.6535 | 12 | 0.4724 | 0.6 | 0.0394 | 6.35 | 9 | 9.38 | 5.02 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 0.9843 | 47 | 1.8504 | 12 | 0.4724 | 0.6 | 0.0394 | 6.35 | 10 | 10.1 | 5.85 | 13000 | 17000 | 0.075 |
| 6006 | 30 | 1.1811 | 55 | 2.1654 | 13 | 0.5118 | 1 | 0.0394 | 7.144 | 11 | 10.18 | 6.91 | 10000 | 14000 | 0.116 |
| 6007 | 35 | 1.3780 | 62 | 2.4409 | 14 | 0.5512 | 1 | 0.0433 | 7.938 | 11 | 12.47 | 8.66 | 9000 | 12000 | 0.155 |
| 6008 | 40 | 1.5748 | 68 | 2.6772 | 15 | 0.5906 | 1 | 0.0433 | 7.938 | 12 | 13.1 | 9.45 | 8500 | 11000 | 0185 |
| 6009 | 45 | 1.7717 | 75 | 2.9528 | 16 | 0.6299 | 1 | 0.0433 | 8.731 | 12 | 16.22 | 11.96 | 8000 | 10000 | 0.231 |
| 6010 | 50 | 1.9685 | 80 | 3.1496 | 16 | 0.6299 | 1 | 0.0433 | 8.731 | 13 | 16.94 | 12.95 | 7000 | 9000 | 0.25 |
| 6011 | 55 | 2.1654 | 90 | 3.5433 | 18 | 0.7086 | 1.1 | 0.0591 | 11 | 12 | 23.28 | 17.86 | 7000 | 7500 | 0.362 |
| 6012 | 60 | 2.3622 | 95 | 3.7401 | 18 | 0.7086 | 1.1 | 0.0591 | 11 | 13 | 24.35 | 19.35 | 6300 | 7500 | 0.385 |
| 6013 | 65 | 2.5591 | 100 | 3.937 | 18 | 0.7086 | 1.1 | 0.0591 | 11.1125 | 13 | 24.66 | 19.74 | 6000 | 7000 | 0.41 |
| 6014 | 70 | 2.7559 | 110 | 4.3307 | 20 | 0.7874 | 1.1 | 0.0591 | 12.303 | 13 | 29.68 | 24.2 | 5600 | 6700 | 0.575 |
| 6015 | 75 | 2.9528 | 115 | 4.5275 | 20 | 0.7874 | 1.1 | 0.0591 | 12.303 | 14 | 30.91 | 26.06 | 5300 | 6300 | 0.603 |
| 6016 | 80 | 3.1496 | 125 | 4.9212 | 22 | 0.8661 | 1.1 | 0.0787 | 13.494 | 14 | 36.57 | 31.36 | 5000 | 6000 | 0.821 |
Our tech and service team was very powerful
We always can meet your requirements upon our tech and sevice.The large group of tech and service team will meet you around 24 hours. And we will develop the new products upon your potential orders.
Since the establishment, we have been devoted to developing and manufacturing all kinds of normal and non-standard bearings with the precision class of P0, P4, P5, P6, SP and UP. Now we can constantly provide various kinds of bearings such as deep groove ball bearings, angular contact ball bearings, cylindrical roller bearings, tapered roller bearings, thrust ball bearings, thrust cylindrical roller bearings, thrust self-aligning roller bearings and slewing bearings,etc. The material we use is GCr15SiMn,grade 1 which is the best bearing steel in China. We make all the bearings according to the quality standard of ISO9001-2000 and ASME. We have our own in-house lab to test the material and bearings. Our strict testing and inspection system guarantee the high and even hardness, high abrasion and high temperature resistance. Before delivery, there will be a final and extra quality confirmation to ensure all the bearings in good order and condition.
Model information of Inch Size POM Plastic Deep Groove Ball Bearings
Certification
Packing of Inch Size POM Plastic Deep Groove Ball Bearings
Contact Information
Shipment
