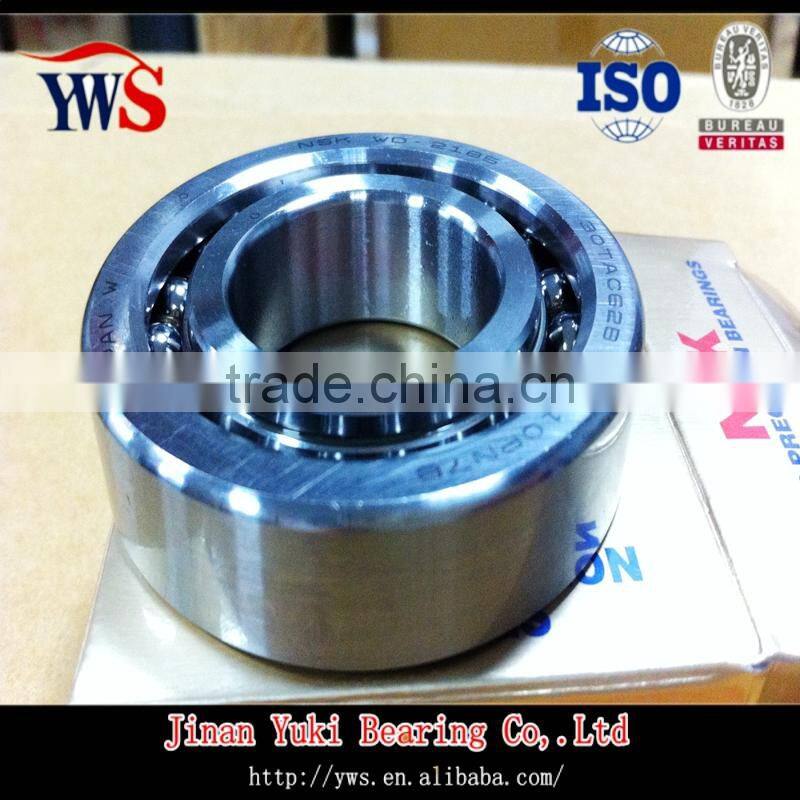

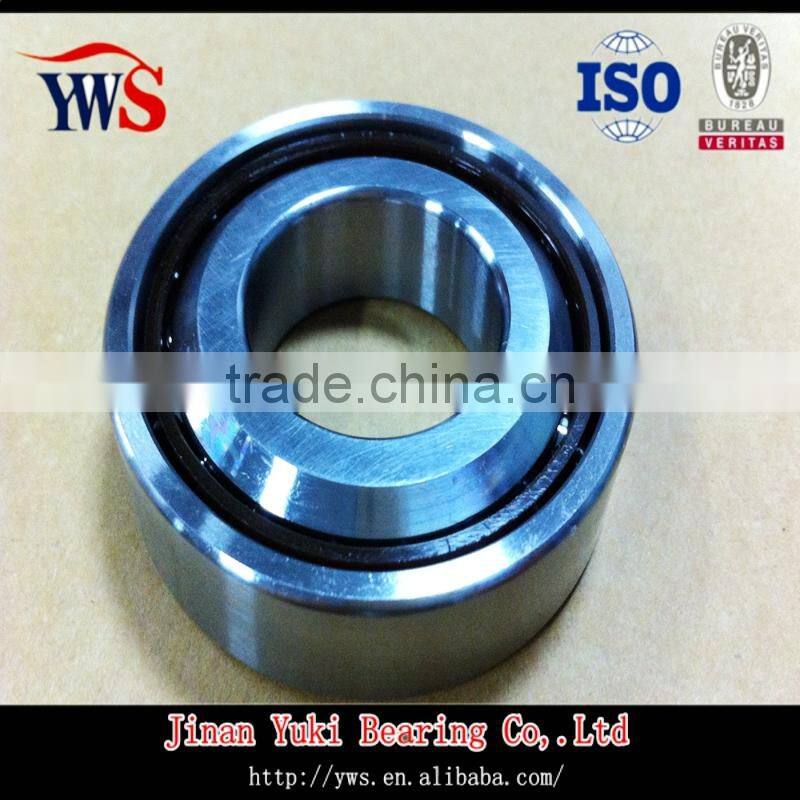

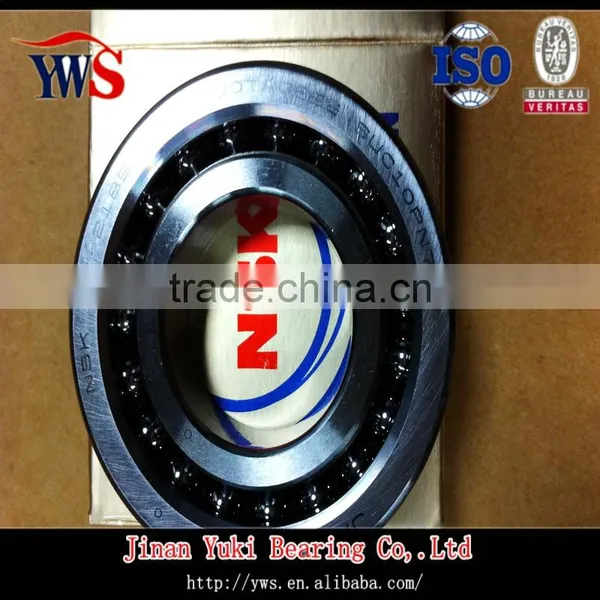

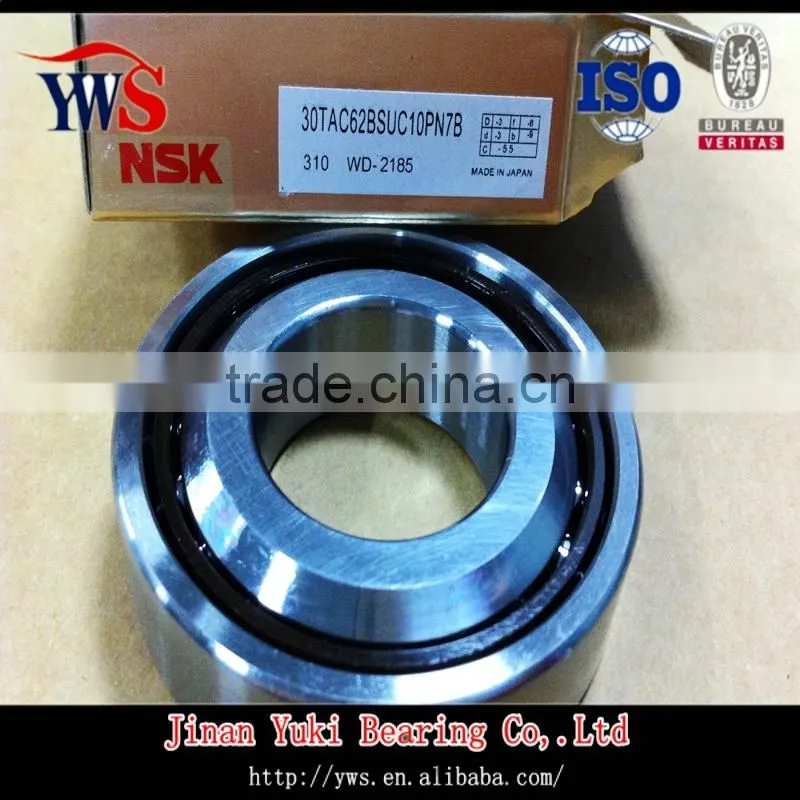

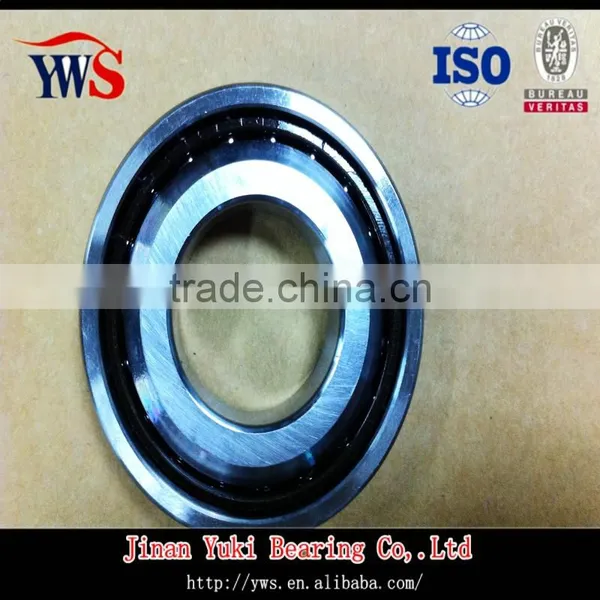

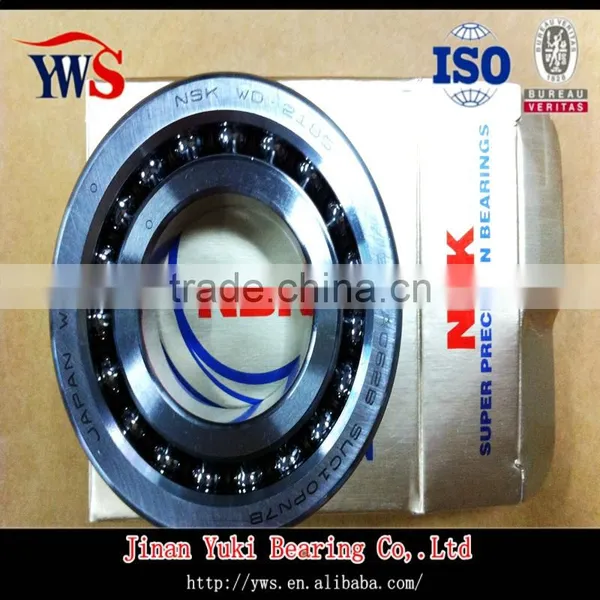

30TAC62BSUC10PN7B NSK angular contact ball bearing
Model number : 30TAC62BSUC10PN7B
30 --Bore diameter (mm)
TAC --Bearing type:angular contact thrust ball bearing ,60 contact angle
62 --outer diameter (mm)
B --inner design
SU --universal arrangement (single row)
C10 --standard preload
PN7B--Special accuracy
We provide all the famous Sweden Japanese Germany brand!!!
KOYO NTN NSK ball bearings,pls Click the next picture:
NTN KOYO roller bearing,pls Click the next picture:
Hiwin linear rail and block,pls Click the next picture:
| Product name:angular contact ball bearing | ||
| Model: 30TAC62BSUC10PN7B | ||
| Inner Diameter:30mm | ||
| Outside Diameter:62mm | ||
| Width:15mm | ||
| Sample or spot:spot ( Delivery date:within 3 days) | ||
| Structure:angular contact | Type: ball | |
| Bearing Material :Chrome steel | Cage Material : Brass ,Steel,Copper,Nylon plastic | |
| Precision rating: PO,P6,P5,P4,P2 | Lubrication: Oil,Grease | |
| Seal type: OPEN/seal | Certification:ISO9001:2008 ,ISO /TS16949 | |
|
Product Advantage:High speed,Low vibration, Low noise,Long life,utilization conveniency, Can be both radial and axial loads | ||
| MOQ: 1 piece | Port:Shanghai,Shenzhen,Qingdao | |
| Packaging: | ||
| 1.Industrial packaging:(1)plastic bag+kraft paper+carton+plywood pallets | ||
| (2)plastic tube+carton+plywood pallets | ||
| 2.Commercial packaging:plastic bag per pic+color box+carton+plywood pallets | ||
| 3.As clients' requirement | ||
| Payment Terms: | ||
| A. L/C,T/T,Western Union,Paypal | ||
| B.Other payment depend on our discussion | ||
| Sample can be provided for inspection! | ||
| Specail product according to customer's requirements! | ||
| Guarantee:One year. | Brand: NSK | |
|
Application: Home appliances, low noise and high speed electric motors, automotive components, pumps, machinery. | ||
Model number of NSK angular contact ball bearing
| MODEL | DIMENSION/MM | MODEL | DIMENSION/MM |
| 17TAC47B | 17*47*15 | 30TAC20X+L | 30*62*34 |
| 20TAC47B | 20*47*15 | 40TAC20X+L | 40*68*36 |
| 25TAC62B | 25*62*15 | 45TAC20X+L | 45*75*38 |
| 30TAC62B | 30*62*15 | 50TAC20X+L | 50*80*38 |
| 35TAC72B | 35*72*15 | 55TAC20X+L | 55*90*44 |
| 40TAC72B | 40*72*15 | 60TAC20X+L | 60*95*44 |
| 40TAC90B | 40*90*20 | 65TAC20X+L | 65*100*44 |
| 45TAC75B | 45*75*15 | 70TAC20X+L | 70*110*48 |
| 45TAC100B | 45*100*20 | 75TAC20X+L | 75*115*48 |
| 50TAC100B | 50*100*20 | 80TAC20X+L | 80*125*54 |
| 55TAC100B | 55*100*20 | 85TAC20X+L | 85*130*54 |
| 55TAC120B | 55*120*20 | 90TAC20X+L | 90*140*60 |
| 60TAC120B | 60*120*20 | 95TAC20X+L | 95*145*60 |
| 180TAC20D+L | 180*280*120 | 100TAC29X+L | 100*140*48 |
| 190TAC29D+L | 190*260*84 | 100TAC20X+L | 100*150*60 |
| 190TAC20D+L | 190*290*120 | 105TAC29X+L | 105*145*48 |
| 200TAC29D+L | 200*280*96 | 105TAC20X+L | 105*160*66 |
| 200TAC20D+L | 200*310*132 | 110TAC29X+L | 110*150*48 |
| 220TAC29D+L | 220*300*96 | 110TAC20X+L | 110*170*72 |
| 220TAC20D+L | 220*340*144 | 120TAC29X+L | 120*165*54 |
| 240TAC29D+L | 240*320*96 | 120TAC20X+L | 120*180*72 |
| 240TAC20D+L | 240*360*144 | 130TAC29X+L | 130*180*60 |
| 260TAC29D+L | 260*360*120 | 130TAC20X+L | 130*200*84 |
| 260TAC20D+L | 260*400*164 | 140TAC29D+L | 140*190*60 |
| 280TAC29D+L | 280*380*120 | 140TAC20D+L | 140*210*84 |
| 280TAC20D+L | 280*420*164 | 150TAC29D+L | 150*210*72 |
| 300TAC29D+L | 300*420*144 | 150TAC20D+L | 150*225*90 |
| 320TAC29D+L | 320*440*144 | 160TAC29D+L | 160*220*72 |
| 340TAC29D+L | 340*480*144 | 160TAC20D+L | 160*240*96 |
| 360TAC29D+L | 360*480*144 | 170TAC29D+L | 170*230*72 |
| 380TAC29D+L | 380*520*164 | 170TAC20D+L | 170*260*108 |
| 400TAC29D+L | 400*540*164 | 180TAC29D+L | 180*250*84 |
NSK angular contact ball bearing introduction
Angular contact ball bearings are particularly suitable for carrying combined (axial and radial) loads. Sometimes, they also can carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted. So the bearings are normally adjust against a second bearing.
Type of angular contact ball bearings:
a=15 °7000C
a=25 °7000AC
a=40 °7000B
1) Single row angular contact ball bearing
2) Double row angular contact ball bearing
3) Four-point angular contact ball bearing
Features:
Angular Contact Ball bearings are composed of Inner rings,Outer Rings,Balls and Cage.
1. Ring 's Material: Bearing Steel ZGCr15/GCr15
2. Balls' Material: Carbon chromium steel/Si3N4
3. Cage Material: Phenolic,Nylon,Plastic,Brass etc.
4. Angle: C -15°contact angle, AC-25°contact angle, B-40°contact angle
5. Tolerance Class: ABEC7,ABEC9 (P4,P2)
6. Preload: A-Light Preload , B-Medium Preload, C-Heavy Preload
7. OEM service

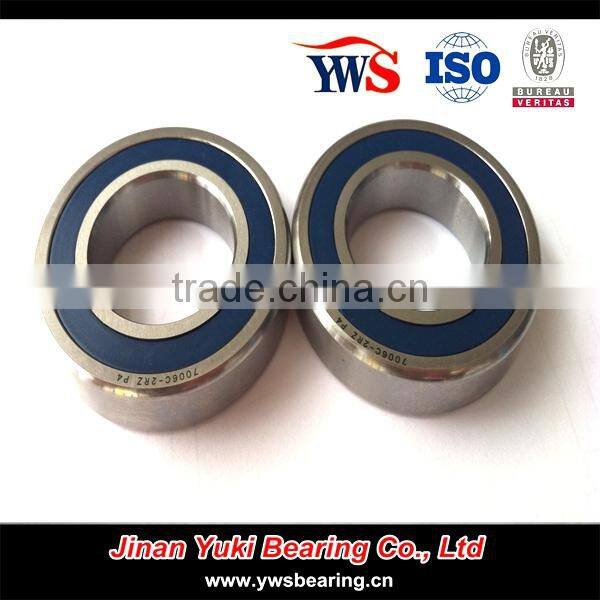

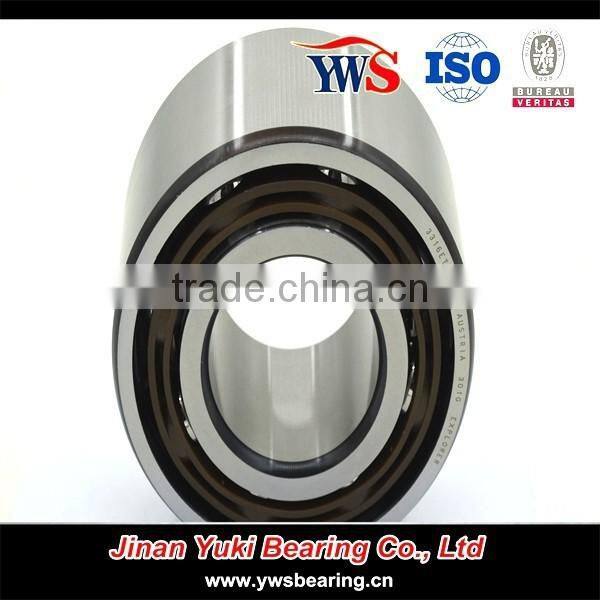

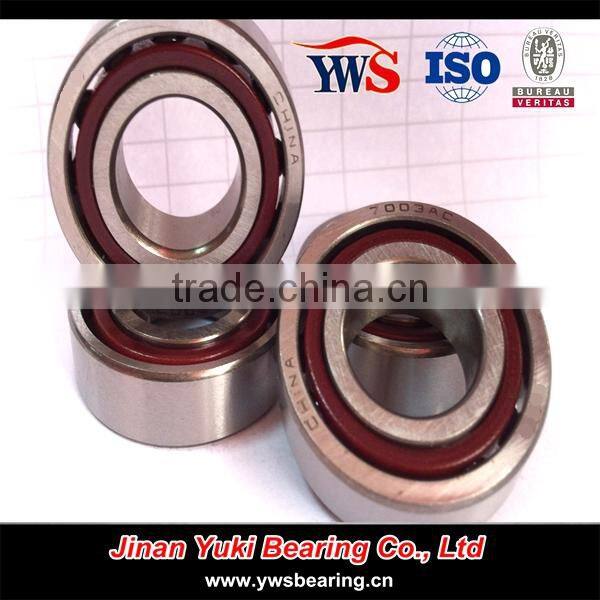

other angular contact ball bearings
our office and workshop
super precision 30TAC62BSUC10PN7B NSK angular contact ball bearing
Are you interested in these products? If so,pls send inquiry to me. :)
