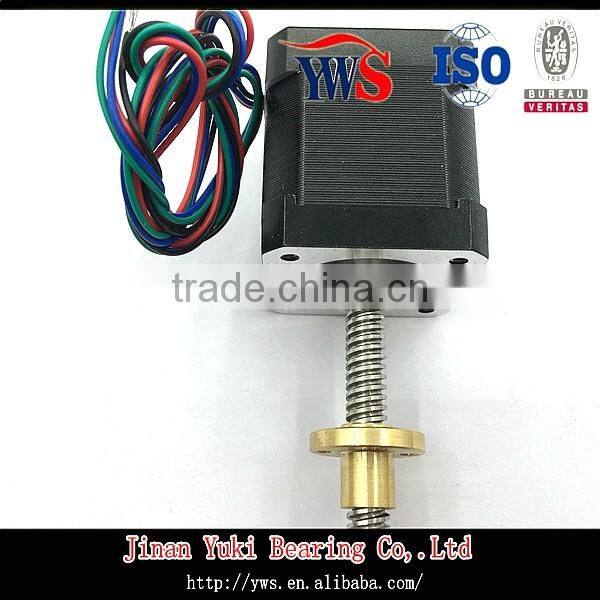

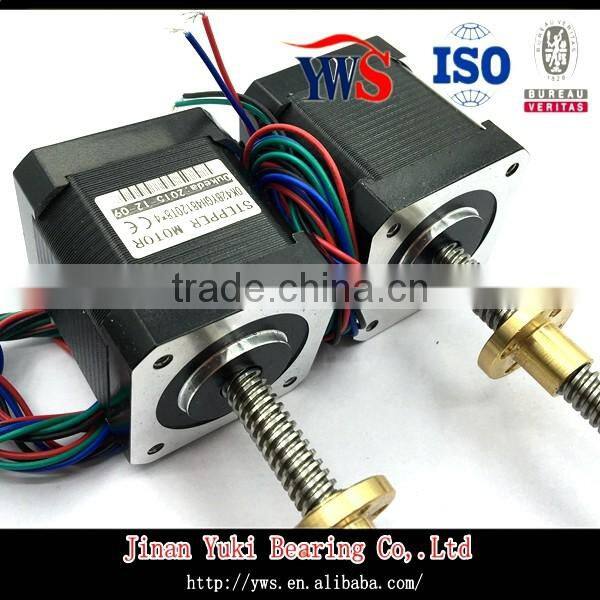

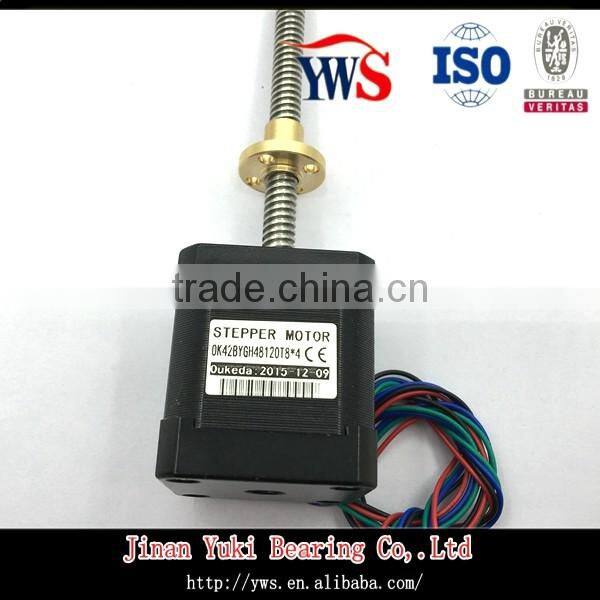

stepper motor with 8mm lead Screw for 3D printer
| stepper motor with lead Screw for 3D printer |
|
Specification 1.brand:YWS or OEM 2.material: stainless steel screw with brass nut 3.hardness :58-65 4.precision:g6-g5 5.roughness:Ra0.4-0.8 6.hard belt depth:2mm-3mm 7.length:according to your requirement 8.roundness:does not surpass 0.003mm 9.straightness accuracy:100microns 200microns 300microns and deends on requirement 10.length deends on requirement 11.end machining and can make hole like M4 M6 M8...

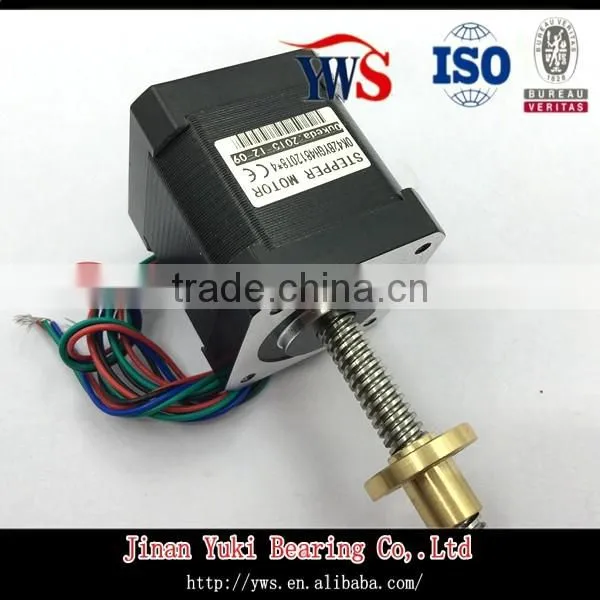

Photos
Our bearing packing
|
About Lead screw
Trapezoidal lead screws and nuts are power transmission screw threads similar to
the Acme series but made to metric dimensions and standards. One such standard
is the German Metrisches ISO-Trapezgewinde DIN 103 which has been adopted by
the International Organization for Standards (ISO). Sometimes misnamed
"metric Acme" or "metric M series Acme" Trapezoidal lead screws look like
Acme screws and have the same stout thread form and the same robust
and durable features as the Acme series., please contact YWS for details.
Feature of lead screw
1. High efficiency of transferring
2. Smooth movement
3. High precision,duration, and reliability
4. No gap and preloading
5. Produced using auto turning CNC machines
6. Precision ball screws
7. Low friction
8. Durable design
9. High-speed operation
Other lead screw nos
| Trapezoidal Lead Screw | ||||
| Part No. | d | d2min | d2max | Weight (kg/m) |
| Tr 10x2 | 10 | 8.739 | 8.929 | 0.5 |
| Tr 10x3 | 10 | 8.191 | 8.415 | 0.446 |
| Tr 12x3 | 12 | 10.191 | 10.415 | 0.746 |
| Tr 14x3 | 14 | 12.191 | 12.415 | 1.04 |
| Tr 14x4 | 14 | 11.64 | 11.905 | 0.888 |
| Tr 16x4 | 16 | 13.64 | 13.905 | 1.21 |
| Tr 18x4 | 18 | 15.64 | 15.905 | 1.58 |
| Tr 20x4 | 20 | 17.64 | 17.905 | 2 |
| Tr 22x5 | 22 | 19.114 | 19.394 | 2.23 |
| Tr 24x5 | 24 | 21.094 | 21.394 | 2.72 |
| Tr 26x5 | 26 | 23.094 | 23.394 | 3.26 |
| Tr 28x5 | 28 | 25.094 | 25.394 | 3.85 |
| Tr 30x6 | 30 | 26.547 | 26.882 | 4.5 |
| Tr 32x6 | 32 | 28.547 | 28.882 | 5.18 |
| Tr 36x6 | 36 | 32.547 | 32.882 | 6.71 |
| Tr 40x7 | 40 | 36.02 | 36.375 | 8 |
| Tr 44x7 | 44 | 40.02 | 40.275 | 9.87 |
| Tr 48x8 | 48 | 43.468 | 43.868 | 12 |
| Tr 50x8 | 50 | 45.468 | 45.868 | 13.1 |
| Tr 60x9 | 60 | 54.935 | 55.36 | 18 |
| Tr 70x10 | 70 | 64.425 | 64.85 | 26 |
| Tr 80x10 | 80 | 74.425 | 74.85 | 34.7 |
