Help CenterZro2 Si3n4 High Temperature Resistance Diameter 6.747mm Ceramic Ball
Related Products
-
TC 8x22x6 TC 9x20x7 TC 10x18x7 Skeleton Oil SealUS$ 0.15 - 2.05MOQ: 10 Pieces -
High Precision Abec 10 2.5 Inch Stainless Steel Ball BearingsUS$ 0.02 - 2MOQ: 1 Piece
-
8x8mm 8x10mm Aluminium Silver Color Skateboard Bracket Bearing SpacerUS$ 0.1 - 199.9MOQ: 1 Piece
-
Ball Transfer Unit Single Ball With Frame Type BearingsUS$ 0.35 - 5MOQ: 1 Piece
-
Ball Transfer Unit Single Ball With Frame Type BearingUS$ 1.15 - 2.25MOQ: 1 Piece
Specifications
temperature 6.747mm zro2 si3n4 ceramic ball1.Certification:ISO9001:2008:BV
2.Competitive price
3.Good service
4.OEM
If there is anything not satisfied,you can Return or Replacement,
we have the Fedex DHL account.Worthy choice, to help you succeed

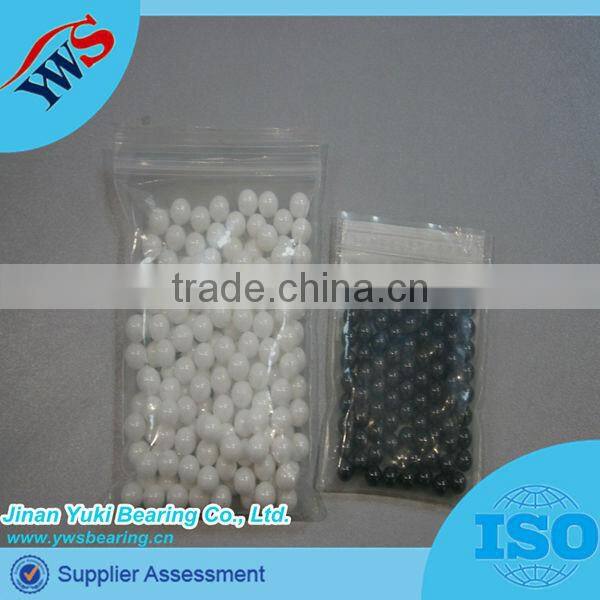

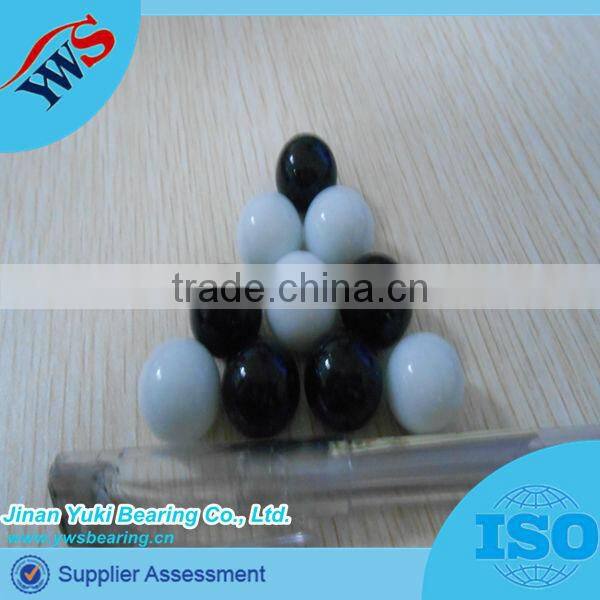

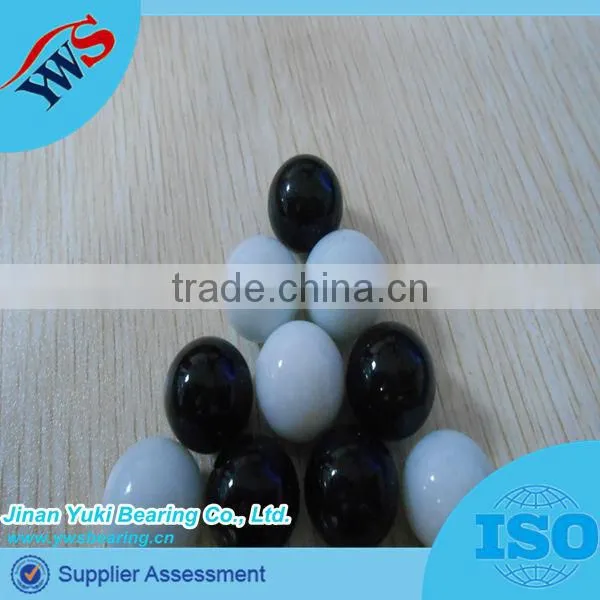

zro2 si3n4 high temperature resistance diameter 6.747mm ceramic ball |
|
|

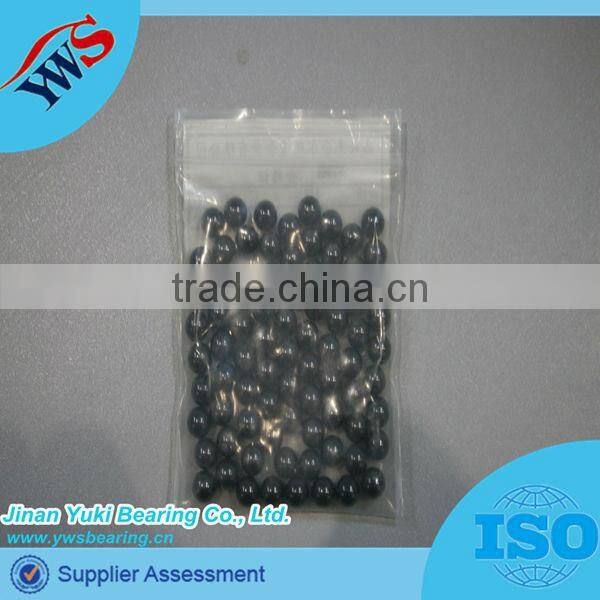

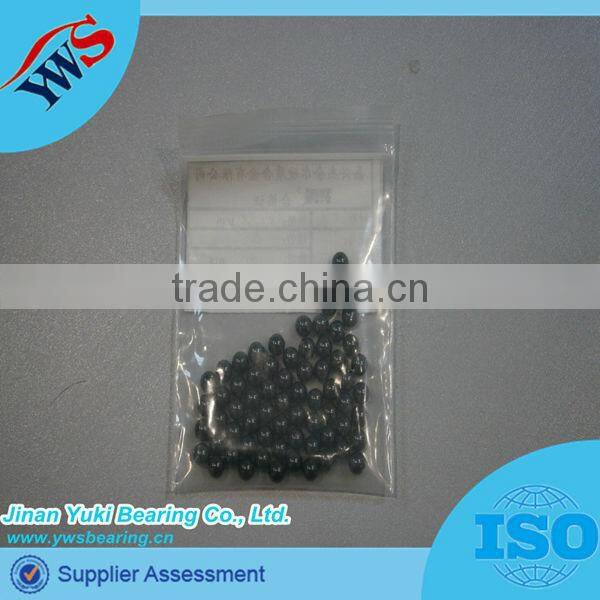

| Advantage of the SI3N4 Ceramic Ball |
|
Compared with steel ball, Si3N4 ball has following advantages: 1. 59% lighter than steel ball, which means less centrifugal force and less wear on the groove during high speed and acceleration. 2. 44% larger elastic modulus, which means less deformation under load 3. Harder with Rockwell hardness as 78 4. Smaller friction coefficient 5. Only 1/4 coefficient of thermal expansion of steel, can endure sharp fluctuation of temperature 6. Superior surface finish can be achieved, Ra could be 4~6 nm 7. Can endure high temperature with high hardness and strength up to 1050°C 8. Never rust, and can roll without lubrication. 9. More corrosion resistant than steel. 10. Free of metal contamination. 11. Non-magnetic 12. Electric isolation 13. No adhesive-wear with metal 14. Contact angular is very large with molten and nearly no reaction All above combination makes Si3N4 to be first choice for high-demand bearing ball material and valve ball
Application: Si3N4 ball can be used in all bearings with special requirement: high speed bearing, high precision bearing; vacuum bearing; high/low temperature bearing, non-magnetic bearing, high precision ball screw; Si3N4 ball can also be used as valve ball and metering ball in chemical pump, high-temperature pump, metering pump. Si3N4 ball can also be used in linear slider for high temperature and corrosion resistance. Note: 1. Black color as standard, gray color could be supplied upon customer requirement 2. Non-standard size and different gauge could be supplied
|

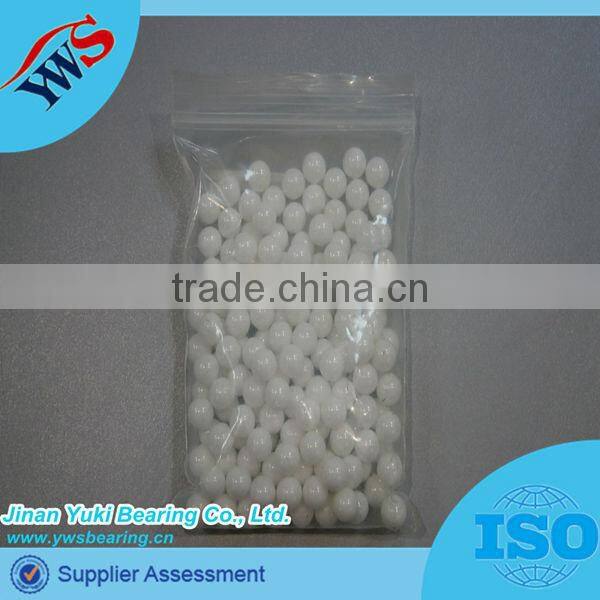

| Advantage of the ZRO2 Ceramic Ball |
|

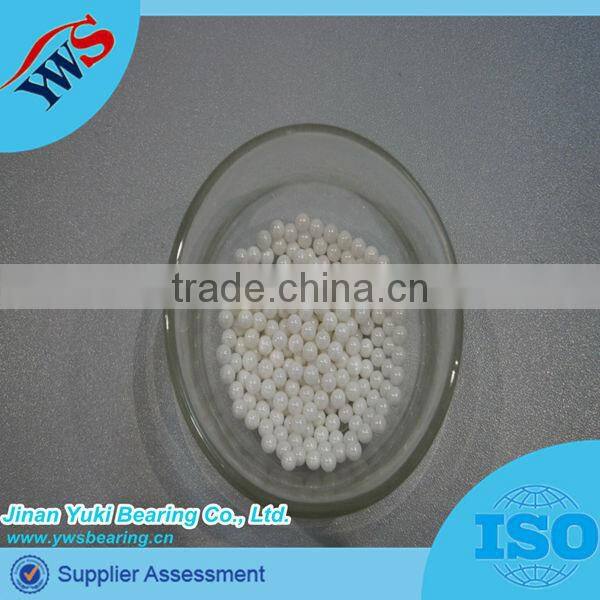

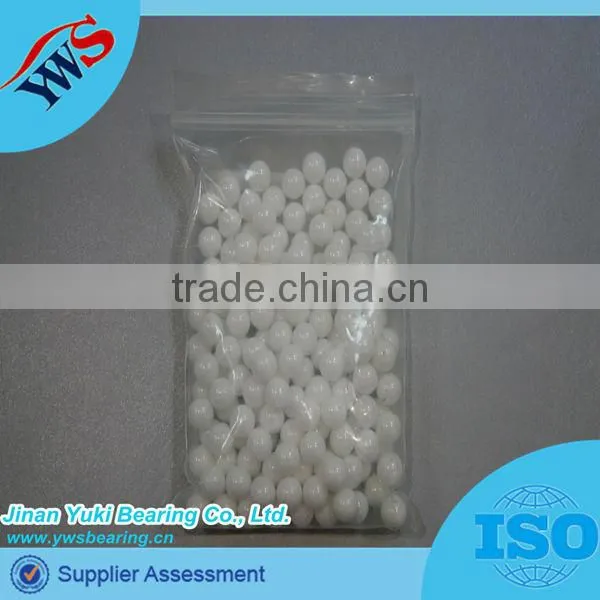

Precision Zirconia Ceramic Ball
Material:zirconia ceramic Excellent features : 1.Material:zirconia graulation 2.Using many fine technology such as dry press molding and isostatic press molding. 3.High strength,high hardness,resist to high temperature, wearing and corrosion. 4.It can do a good job under mang bad conditions such as high temperature,high pressure,vacuum,inflammable,explosive,acid,alkali,steam,non-lubricated environments. 5.Preventing material from contamination because of its extreme low wear rate. Apllication:Materials for grinding and dispersed,structural ceramics,electronics,refractory ceramics,magnetic material,metallurgy,medicine,food,cosmetics,textiles,printing and dyeing,pigment and other industries.
|
| Specification of Ceramic Ball | |||||||||||||||||||||
| |||||||||||||||||||||
| Ecport Market Distribution | |||||||||||||||||||||
|
|
| Production Ceramic Ball | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
With zro2 si3n4 high temperature resistance diameter 6.747mm ceramic ball Similar Ball |
|
|
| We Can Desion and Produce Various Kinds of Bearing | ||||||||||||||
|

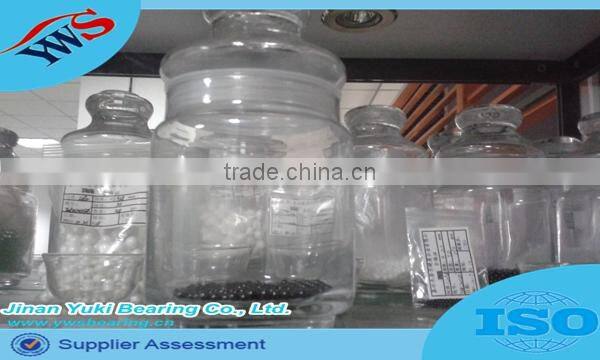

Show Room |
|
|
| Our Office Have the Second Test Quality Control Procedure |
|
| Package |
|
| About us |
|
Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning roller/ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.
|
| Contact Me for Any Question |
Skype number: hebe.wu2 |
