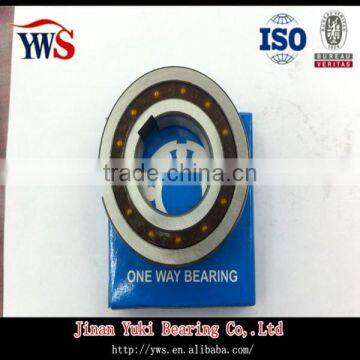

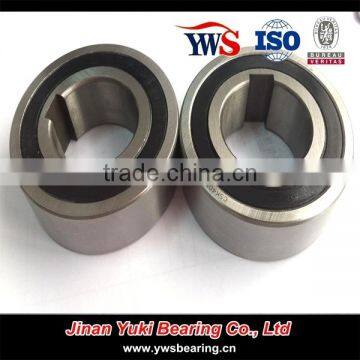

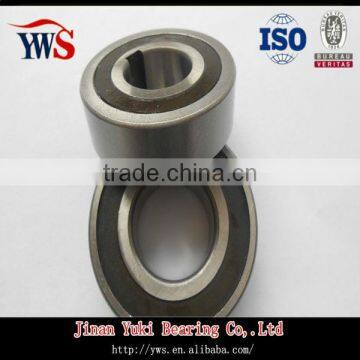

CSK25 CSK25P CSK25PP One way clutch bearing
If you need taper roller bearing,please Click the next picture:
If you need ball bearing,please Click the next picture:
If you need wheel hub bearing,please Click the next picture:
CSK bearings introduction
1. CSK bearing is one way bearing with a sprag type.
2. CSK bearing has CSK..P, CSK..PP series.
3. CSK bearins series are composed of a 62 series ball bearing (except CSK8 and 40).
4. CSK bearing or One-way bearings are widely used in mining /hydraulic / textile / printing / washing machines, conveyor systems and so on.
5. One way bearing (freewheel bearing) CSK series, HF, HFL, FCB, B200 series.
6. One way clutch (overrunning clutch), GFR, MZ series.
CSK—P and CSK—PP series are available upon request. CSK--P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race; CSK--PP features a keyway in both the inner and outer race. The Model CSK—P clutches must be secured to the shaft by customer supplied snap ring, set collar, spacer, etc. The outer race is secured with a press fit to a N6 tolerance. The Model CSK—PP clutches have a keyway on both races and must be secured by customer supplied snap ring, set collar, spacer, etc
| One way clutch CSK type | ||||||||
| Bearing No. | Dimension (mm) | Torque | Mass | |||||
| (Stieber-Germany) | Japan | d | D | B | (N.m) | (kg) | ||
| CSK8 | CSK 8P | CSK 8PP | 8 | 22 | 9 | 2.5 | 0.015 | |
| CSK12 | CSK 12P | CSK 12PP | 12 | 32 | 10 | 7.5 | 0.04 | |
| CSK15 | CSK 15P | CSK 15PP | BB15 | 15 | 35 | 11 | 13.5 | 0.05 |
| CSK17 | CSK 17P | CSK 17PP | BB17 | 17 | 40 | 12 | 24.5 | 0.07 |
| CSK20 | CSK 20P | CSK 20PP | BB20 | 20 | 47 | 14 | 40 | 0.11 |
| CSK25 | CSK 25P | CSK 25PP | BB25 | 25 | 52 | 15 | 68 | 0.14 |
| CSK30 | CSK 30P | CSK 30PP | BB30 | 30 | 62 | 16 | 110 | 0.21 |
| CSK35 | CSK 35P | CSK 35PP | BB35 | 35 | 72 | 17 | 140 | 0.3 |
| CSK40 | CSK 40P | CSK 40PP | BB40 | 40 | 80 | 22 | 260 | 0.5 |
About us
Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.
