inch R series 0.5'*1.125'*0.3125' Deep Groove Ball Bearings r8

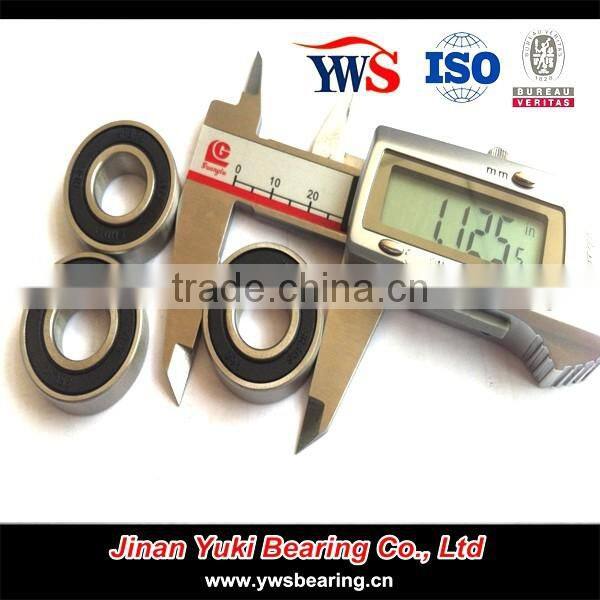

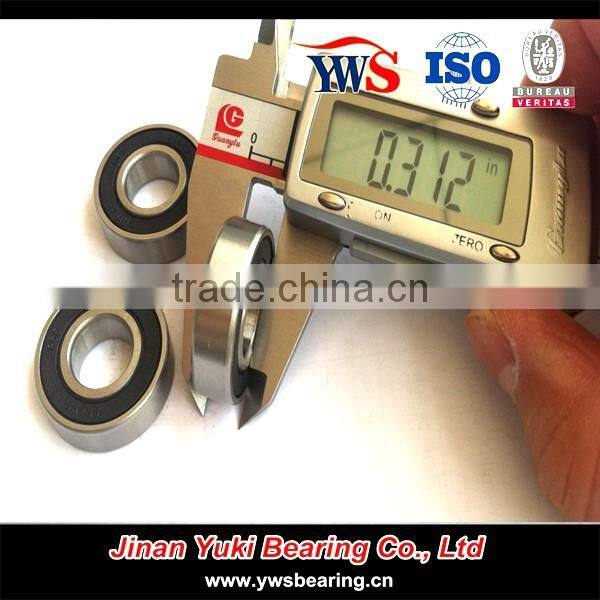

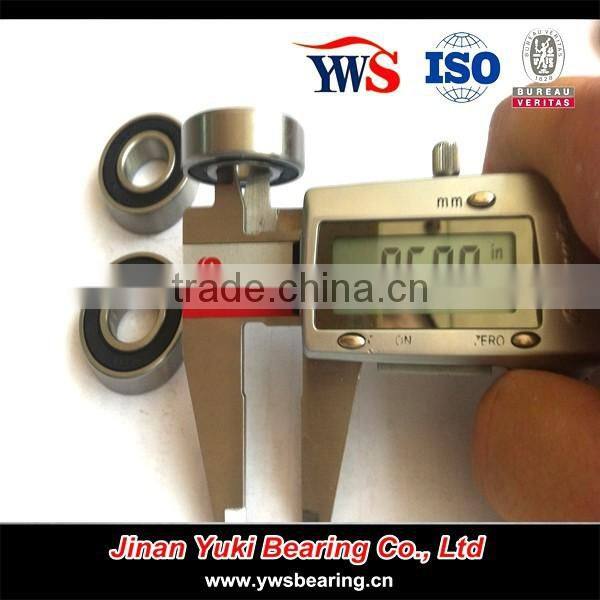

R8 INCH szie: 0.5'*1.125'*0.3125':

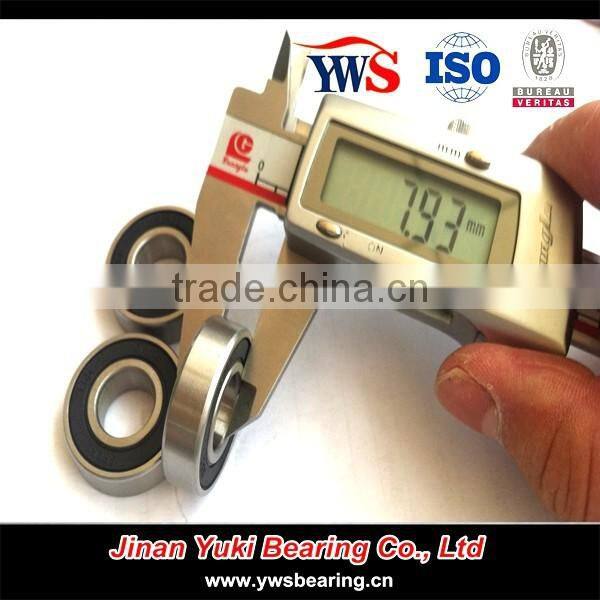

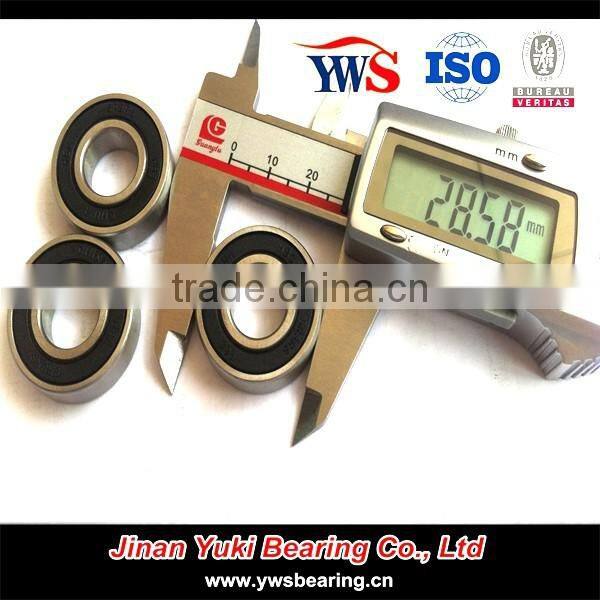

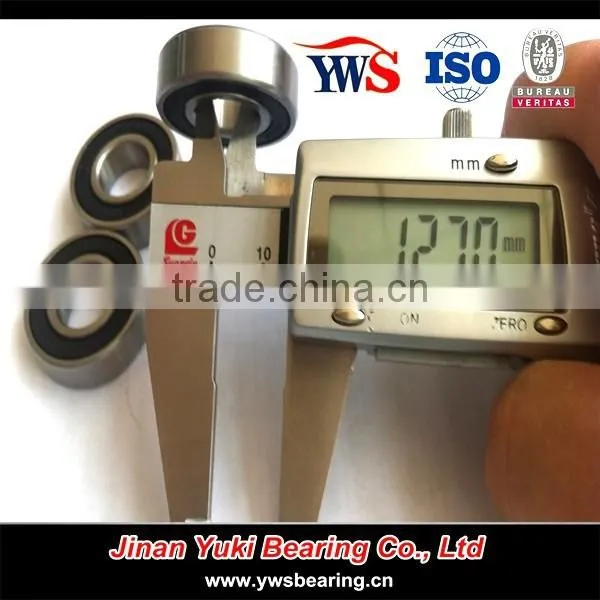

R8 MM size:12.7mm*28.575mm*7.938mm:
other INCH bearing:

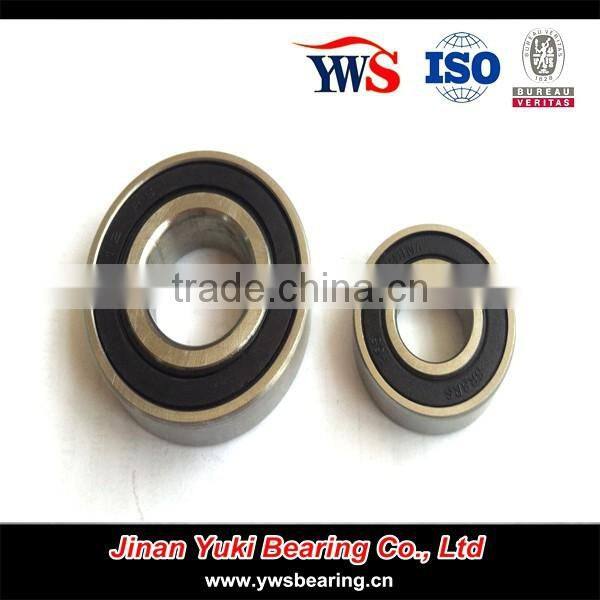

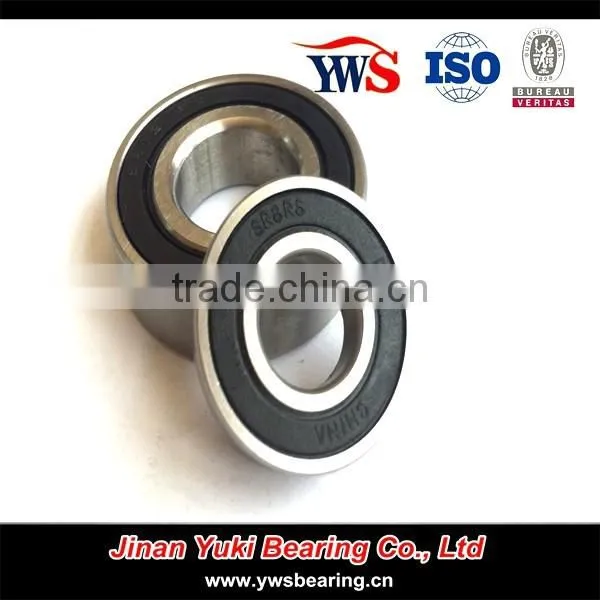

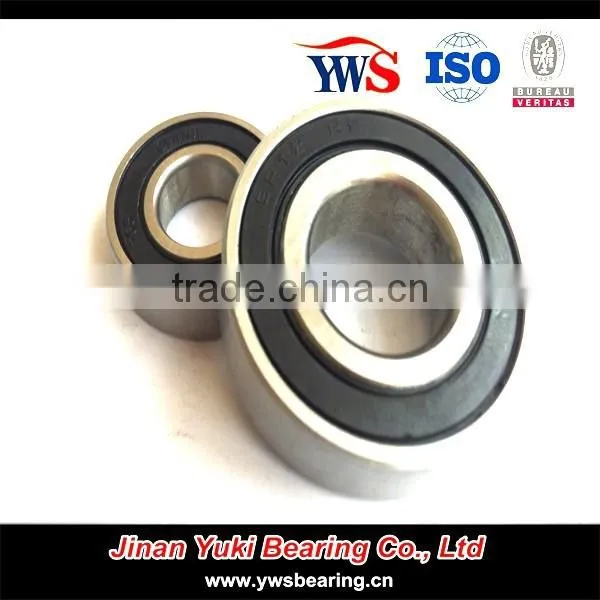

SR8-2rs and SR12-2rs:

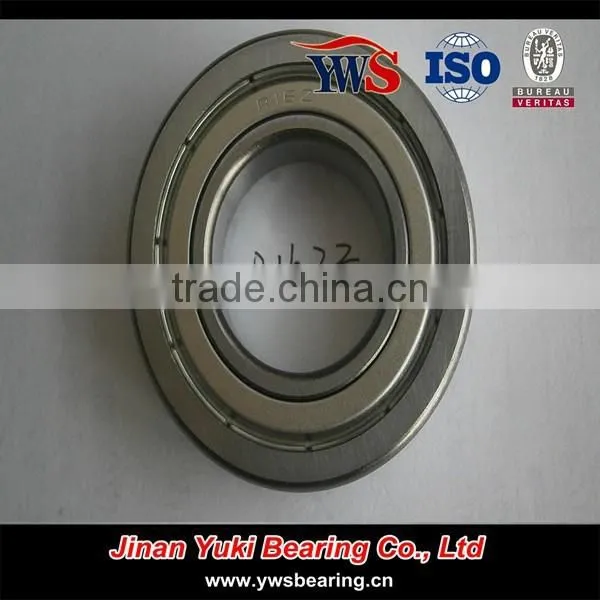

chrome steel R16zz:
Deep Groove Ball Bearing Manufacturer From Shandong,China, with more than 10 years' experience.
No.1: Our Product Range: ball bearing size:
608 in the bearing 6 represents six deep groove ball bearings, 0 is the size of the series, 8 shows the inner diameter size of 8mm, if the bearings are standard parts, dimensions is usually one of the older models represented by 80018. Dimensions are: diameter 22mm, height 7mm, inner diameter of 8mm. Ball 7, ball diameter 3.969mm. But there are non-standard size according to user specifications Manufacturing
Bearing Material:
Shuttered represented in the model suffix ZZ (608ZZ), plastic cover model suffix 2RS (608-2RS) represented. Materials are carbon steel, bearing steel (GCr15), stainless steel, plastic, ceramics and the like. Cage: nylon cage, iron cage, brass cage and so on.
Purpose:
608 bearings are generally used in the motor, motor, electronic accessories, trolleys, skates, etc. related fields.
| model | d(inch/metric) | D(inch/metric) | B(open/closed) |
| R2 | 1/8"/3.1750MM | 3/8"/9.5250MM | 0.1562MM/0.1562MM |
| R3 | 3/16"/4.7625 | 1/2"/12.7000 | 0.1562/0.1960 |
| R4 | 1/4"/6.3500 | 5/8"/15.8750 | 0.1960/0.1960 |
| R4A | 1/4"6.3525 | 3/4"/19.0500 | 0.2188/0.2812 |
| R6 | 3/8"9.5250 | 7/8"/22.2250 | 0.2812/0.016 |
| R8 | 1/2"12.7000 | 1-1/8"28.5750 | 0.2500/0.3125 |
| R10 | 5/8"/15.8750 | 1-3/8"/34.9250 | 0.2812/0.3438 |
| R12 | 3/4"19.0500 | 1-5/8"/41.6250 | 0.3125/0.4375 |
| R14 | 7/8"/22.2250 | 1-7/8"/47.6250 | 0.3750/0.5000 |
| R16 | 1"/25.4000 | 2"/50.8000 | 0.3750/0.5000 |
| R18 | 1-1/8"/28.5750 | 2-1/8"/53.9750 | 0.3750/0.5000 |
| R20 | 1-1/4"/31.7500MM | 2"/57.1500 | 0.3750/0.5000 |
Item No. | d | D | B | Cr | Cor | Weight |
| mm | mm | mm |
|
|
|
605 | 5 | 14 | 5 | 1.33 | 0.51 | 0.0045 |
606 | 6 | 17 | 6 | 2.19 | 0.87 | 0.007 |
607 | 7 | 19 | 6 | 2.24 | 0.91 | 0.007 |
608 | 8 | 22 | 7 | 3.35 | 1.4 | 0.012 |
609 | 9 | 24 | 7 | 3.4 | 1.45 | 0.033 |
624 | 4 | 13 | 5 |
|
| 0.003 |
625 | 5 | 16 | 5 | 1.13 | 0.56 | 0.005 |
626 | 6 | 19 | 6 | 2.01 | 1.05 | 0.008 |
627 | 7 | 22 | 7 | 2.53 | 1.36 | 0.014 |
628 | 8 | 24 | 8 |
|
|
|
629 | 9 | 26 | 26 |
|
| 0.02 |
696 | 6 | 15 | 9 |
|
|
|
6000 | 10 | 26 | 8 | 4.55 | 1.96 | 0.019 |
No.2: Ball Bearing Specification:
Seals Types | ZZ,Z,2RS,rs,RZ,2RZ,OPEN |
Vibration Level | Z1V1,Z2V2,Z3V3 |
Clearance | C2,C0,C3,C4,C5 |
Tolerance Codes | ABEC-1,ABEC-3,ABEC-5 |
Materral | GCr15-China/AISI52100-USA/Din100Cr6-Germany |
MOQ | 1Set at least |
Delivery Time | 2-10 days after contract |
Payment Terms | TT,paypal,western union,LC |
Pavkage | Tube package+outer carton+pallets;Single box+outer carton+pallets;Tube pavkge+middle box+outer carton+pallets;According to your requirement |
| 1. Inner Ring |
2. Cage | |
3. Seal or Sheld | |
4. Ball | |
5. Outer Ring |
NO.3 Applications:
- Power Tools
- Fans
- Washing Machines
- Pumps
- Electric Motors
- Sport Apparaus
- Textile Machined
- Skateboard,Skates
NO.4: Advantage of the deep groove ball bearing:
- Sustain radial,acial,or compasite load.
- Provide both high-running accuracy &high-speed operation
- Can replace high speed angular contact ball bearings.
NO.5: Ball Bearing Quality Gurantee:
You can replace or refund the products beacause of quality problem within one year after the date you get them.
Are you interested in these products? If so,pls send inquiry to me. :)
