907 50200 Cylindrical Roller Bearing

907 50200 Cylindrical Roller Bearing thumbnail-1
907 50200 Cylindrical Roller Bearing photo-1
US$ 0.08 - 20 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
YWS or customer's brand
Bore Size:
15, 100
Outside Diameter:
35, 250
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS or customer's brand
Bore Size 15, 100
Outside Diameter 35, 250
Model Number 50200
Precision Rating P0/P2/P4/P5/P6
Seals Type open/zz /rs/2rs
Number of Row Double Row
Place of Origin Shandong, China



 907 50200 cylindrical roller bearing

907 50200 cylindrical roller bearing



   907 50200 cylindrical roller bearing





SPECIFICATION

 Type

Cylindrical roller bearings/33218 bearings

Material

chrome steel/Stainless Steel/ as per customer's required

Bearing number

NN3007K/NJ3012K/NJ213/NU1080K

Brand

OEM service available/YWS Brand

Precision grade

P0/P2/P4/P5/P6
Noise Level of bearings Z1,Z2,Z3,Z4
Quality Standard ISO9001:2001,BV -Alibaba Assessed supplier etc.



Bearing           No

Dimension(mm)

Mass



Bearing           No

Dimension(mm)

Mass

d

D

B

kg



d

D

B

kg

NU2008M

40

68

18

0.3



NU2048M

240

360

72

52

NU2009M

45

75

19

0.4



NU2052M

260

400

82

40

NU2010M

50

80

19

0.4



NU2056M

280

420

82

42

NU2011M

55

90

22

0.6



NU2060M

300

460

95

61

NU2012M

60

95

22

0.6



NU2064M

320

480

95

64

NU2013M

65

100

22

0.7



NU2068M

340

520

106

86



MAIN INFORMATION

1) Cylindrical roller bearings are widely used in automobile, electrical. (Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines)



2) equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries.







FEATURES AND BENEFITS
Cylindrical Roller Bearings are bearing in which cylinders are used as the rolling elements as opposed to balls in ball bearings. As such, the rollers have a greater (linear) contact area with the outer ring and are distribute loads across a broader surface. Subsequently, they have a relatively high radial load capacity and are suitable for high speeds. Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

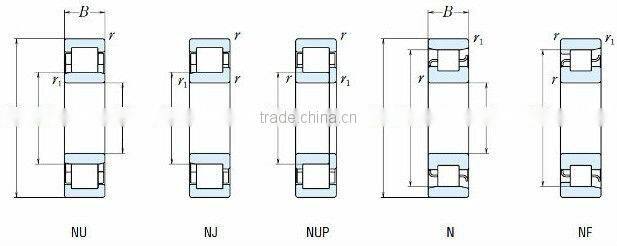

TYPES OF TAPERED ROLLER BEARING



  • N Series - Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.
  • NU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.
  • NJ Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and a fixed rib on the inner ring which can guide the shaft in a single direction (axially).
  • NUP Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and, on the inner ring, a fixed rib and a support washer. This way they can be used as locating bearings, guiding the shaft axially in both directions.
  • RNU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and has no inner ring. Instead, it uses the shaft as the opposing raceway.
  • NF Series - Also able to carry incidental thrust loads, this bearing type features two integral ribs on the inner ring and a single rib on the outer ring.
  • NN Series - Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.
  • NNU Series - Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.









PHOTOS OF TAPERED ROLLER BEARING

907 50200 cylindrical roller bearing







ABOUT US

Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.

907 50200 cylindrical roller bearing







Production Process of Tapered roller bearing

907 50200 cylindrical roller bearing











30% sampling before delivery

907 50200 cylindrical roller bearing







PACKING AND SHIPMENT

907 50200 cylindrical roller bearing







certification

907 50200 cylindrical roller bearing907 50200 cylindrical roller bearing



CONTACT ME FOR ANY QUESTIONS

907 50200 cylindrical roller bearingSkype number: melissazhl1



907 50200 cylindrical roller bearing
