Specifications
Cylindrical roller bearings SL185009:1.Material: Chrome steel GCr15
2.High copy brand
3.Precision Grade: P0 P6 P2 P4
4.OEM
why choose us:
1.when only the best will do,also we can respect the customer's choice.
2.we have been in the line more than 10 year, We were founded in 2004. Time can test our quality.
3.we are Sino-japanese joint venture company. Quality is our number one goal
4.we are the world's largest 3D printers,fixed bearings' supplier
5.We can high copy many famous brands, such as: Sweden bearings, American bearings,Japan bearings, Germany bearing and Chinese brand bearing. same or better than original.
If there is anything not satisfied,you can Return or Replacement,
we have the Fedex DHL account.Worthy choice, to help you succeed

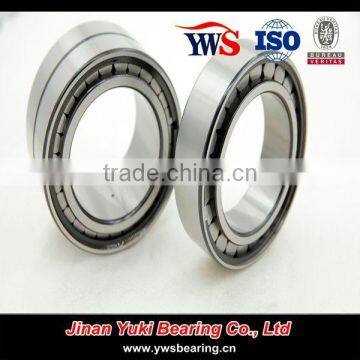

double row Full complement cylindrical roller bearing SL 185009 :
waiting for you
1. About product:
1, NNF ... ADA2LSV / SL04 double row full complement cylindrical roller bearings: two inner and two inner joins together by clamping ring, can not be separated, the outer ring has a wall, can withstand two-way axial load, used for locating bearing. Due to the large distance between the two rows of rollers, but also withstand the overturning moment. Outer surface has two retaining slots can axial position. This type of bearing on both sides with contact seals, built lithium grease, operating temperature is limited to -40 ℃ ~ + 80 ℃. Under certain conditions, this type of bearing no maintenance, but when there is moisture or contamination is running, and often medium or high speed running, you must add lubrication. In the case of using oil lubrication, seals to be removed and cleaned of grease in the bearing, in turn increased by 30% when using oil lubrication.
2, NNC / SL01 series full complement cylindrical roller bearings: for non-sealed bearings, the outer ring of the overall split by locking plate connected together, so the outer ring can not withstand axial load, outside after split ring is exactly the same, each with a wall, can be positioned axially in both directions. The inner ring with three ribs. The outer ring with oil groove and three lubrication holes, this series is usually oil-lubricated bearings.
3, NNCL / SL02 series full complement cylindrical roller bearings: for non-sealed bearings, outer ring without ribs, with oil groove and three lubrication holes. The inner ring with three ribs. An outer ring provided with a retaining ring in the center between the two rows of rollers, the rollers can be prevented from falling out, maintaining the bearing as a whole. This series of bearings can allow a certain axial displacement occurs between the shaft and the bearing housings. Because as locating bearing
4, NCF ... V / SL18 type full complement cylindrical roller bearings: a single-wall outer ring, without ribs side has a lock ring on the shaft may make a one-way positioning inside the bearing axial clearance "S" ensure the machine axis relative to the bearing housing axially position shift.
5, NJG ... / SL19 type full complement cylindrical roller bearings: For extremely heavy and slow occasions, with self-locking roller set, even removing the inner ring, the roller is not scattered, so this type of bearing mounting to facilitate the demolition, can withstand axial load, for a one-way positioning.
me size:
DOUBLE ROW
| model | d | D | B |
| mm | mm | mm | |
| SL185004 | 20 | 42 | 30 |
| SL185005 | 25 | 47 | 30 |
| SL185006 | 30 | 55 | 34 |
| SL185007 | 35 | 62 | 36 |
| SL185008 | 40 | 68 | 38 |
| SL185009 | 45 | 75 | 40 |
| SL185010 | 50 | 80 | 40 |
| SL185011 | 55 | 90 | 46 |
| SL185012 | 60 | 95 | 46 |
| SL185013 | 65 | 100 | 46 |
| SL185014 | 70 | 110 | 54 |
| SL185015 | 75 | 115 | 54 |
| SL185016 | 80 | 125 | 60 |
| SL185017 | 85 | 130 | 60 |
| SL185018 | 90 | 140 | 67 |
| SL185020 | 100 | 150 | 67 |
| SL185022 | 110 | 170 | 80 |
| SL185024 | 120 | 180 | 80 |
| SL185026 | 130 | 200 | 95 |
| SL185028 | 140 | 210 | 95 |
SINGLE ROW
| model | d | D | B |
| mm | mm | mm | |
| SL183004 | 20 | 42 | 16 |
| SL183005 | 25 | 47 | 16 |
| SL183006 | 30 | 55 | 19 |
| SL183007 | 35 | 62 | 20 |
| SL183008 | 40 | 68 | 21 |
| SL183009 | 45 | 75 | 23 |
| SL183010 | 50 | 80 | 23 |
| SL183011 | 55 | 90 | 26 |
| SL183012 | 60 | 95 | 26 |
| SL183013 | 65 | 100 | 26 |
| SL183014 | 70 | 110 | 30 |
| SL183015 | 75 | 115 | 30 |
| SL183016 | 80 | 125 | 34 |
| SL183017 | 85 | 130 | 34 |
| SL183018 | 90 | 140 | 37 |
| SL183020 | 100 | 150 | 37 |
| SL183022 | 110 | 170 | 45 |
| SL183024 | 120 | 180 | 46 |
| SL183026 | 130 | 200 | 52 |
| SL183028 | 140 | 210 | 53 |
3. Bearing Applications
Also we have other bearings,if you need just click the pictures:
deep groove ball bearings taper roller bearing
selfaligning roller bearings pillow block bearings
