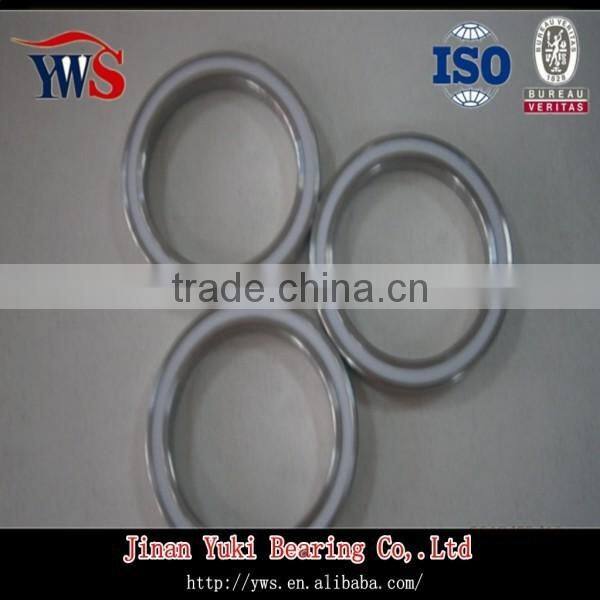

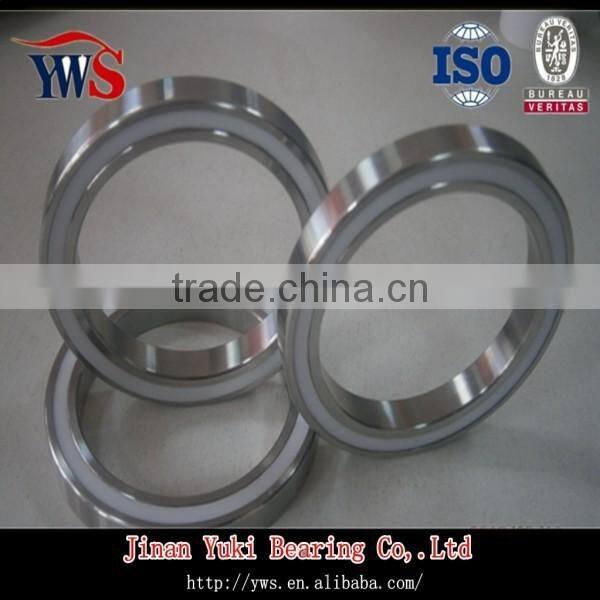

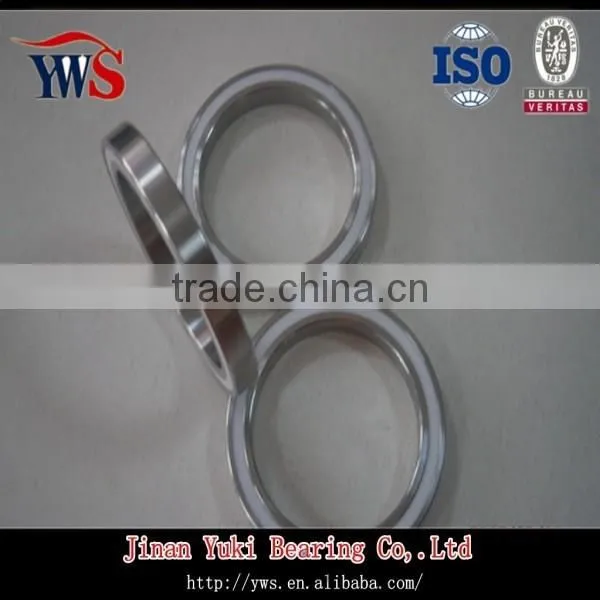

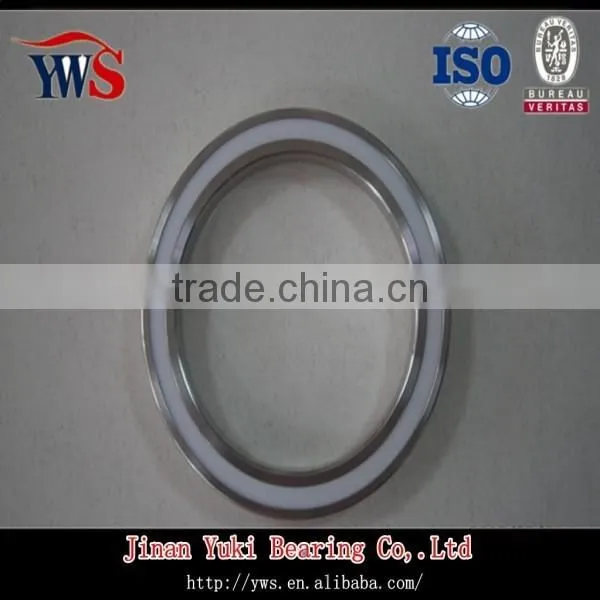

316 stainless steel hybrid ceramic bearing 6810

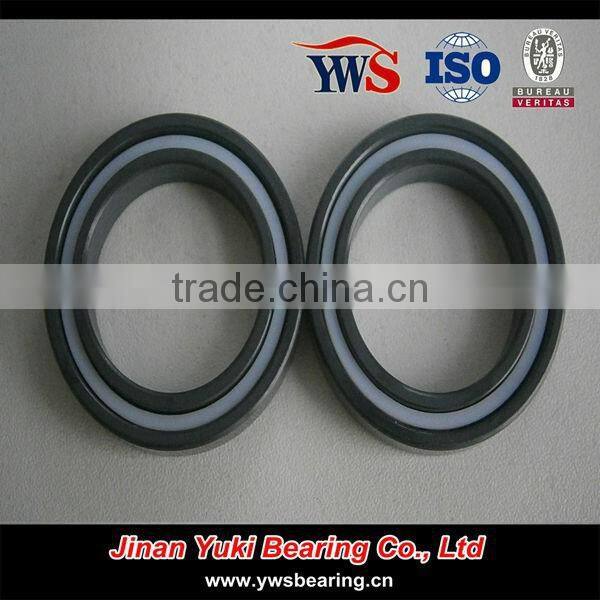

Full ceramic Si3N4 PTFE cage,pls Click the next picture:
Full ceramic ZrO2 with PTFE cage,pls Click the next picture:
Full ceramic ZrO2 with PEEK cage,pls Click the next picture:

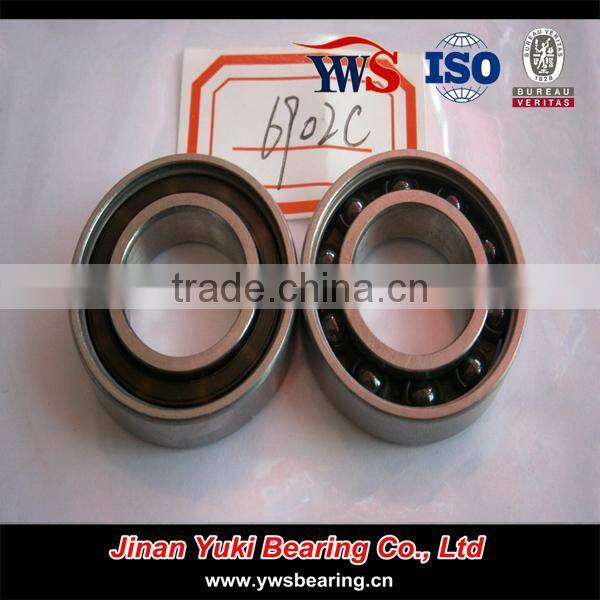

hybrid ceramic with ZrO2 balls,pls Click the next picture:
hybrid ceramic with Si3N4 balls,pls Click the next picture:

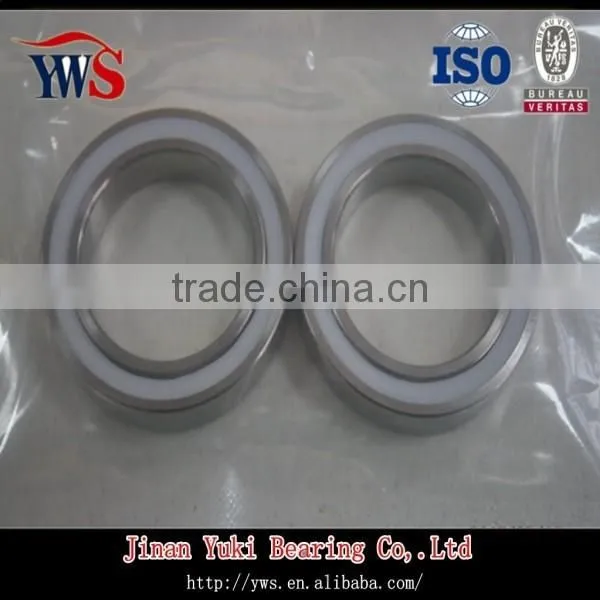

ceramic bearing packing
ceramic bearing feature
Ceramic ball bearing especially ZrO2 have the following performance as low density, high strength, low friction coefficient, electrical and magnetism resistance, wear resistance, well rigidity, lubrication and maintenance free when working, it's the best choice for rollers (inner ring and outer ring are made by metal) of the hybrid construction which are used in high-speed, high accuracy and long life environments.
Compared with steel ball, ZrO2 ball has following advantages:
1. 23%lighter than steel ball, which means less centrifugal force and less friction on the groove during high speed and acceleration.
2. Smaller fiction coefficient, more freely rolling.
3. Can be used at higher temperature up to 500°C
4. Never rust, and can roll with out lubrication.
5. More corrosion resistant than steel
6. No metal contamination.
7. Non-magnetic
8. Electric isolation
Full ceramic bearing Si3N4 materia:
Full ceramic bearing Si3N4 material has similar propriety as ZrO2 material,besides it has low weight.good wear resistance.high hardness.and it can bear higher temperature than ZrO2 material.
Hybrid Ceramic Bearing:
Ceramic bearings offer a significant performance improvement from those made from traditional steel. Our ceramic bearings are manufactured from silicon nitride (Si3N4), an exceptionally hard non-metallic material rated for speeds to 2 million dN, offering a wide selection of benefits.
Hybrid Bearings have steel rings and ceramic balls. Si3N4 Ball is the most popular for the balls as it has only 40 percent of the density of bearing steel but is much harder giving greater wear resistance. Zirconia is heavier with 75 percent of the density of steel so is less suitable for hybrid bearings..
FULL CERAMIC BEARINGS
Full Ceramic Bearings are made entirely of ceramic material and are superior to common steel bearings in many ways. Ceramic is the perfect material for any application seeking to achieve higher RPM’s, reduce overall weight or for extremely harsh environments where high temperatures and corrosive substances are present. Applications such as cryopumps, medical devices, semiconductors, machine tools, turbine flow meters, food processing equipment, robotics and optics. Ceramic materials commonly used for bearings are Silicon Nitride (Si3N4), Zirconia Oxide (ZrO2), or Silicon Carbide (SiC.)
Ceramic Balls:
We are special in making Silicone Nitride Balls (Si3N4 Balls,Zicronia Balls (ZrO2 Balls),Sic Ceramic Balls , Aluminum Oxside Valve (AI203) ceramic balls.
Compared with steel, ceramic materials are noted for their better or particular characters, such as wear-resistance, corrosion resistance, high temperature resistance, electrical insulation (except SiC), non-magnetic, high strength, high rigidity, and low specific gravity. These properties qualify them for replacing steel to make bearings serve in conditions of higher speed, harsh environment and less lube, and decrease wear, noise, vibration and maintenance time of bearings, and eventually increase performance, reliability and life of bearings.
Main Specifications(Metric Series):
1.high temperature ball bearings
2. Material : Si3N4 or ZrO2
3.Precisio:Abec-1, Abec-3, Abec-5, Abec-7
4.Professional manufa
Specifications
1) Ovenproof 2) Wearable 3) Resistance to Corrosion etc 4) Experiences
ceramic bearing specification
Brand |
YWS OR OEM |
||
Item |
ceramic bearings |
||
seals |
2rs,open |
||
Material |
GCr15 steel,carbon steel,stainless steel etc. |
||
Precision |
P0,P2,P5,P6,P4 |
||
Clearance |
C0,C2,C3,C4,C5 |
||
bore size |
1-1200mm |
outer diameter |
3-1800mm |
cage type |
brass;steel plate,nylon,aluminium alloy etc. |
||
seal type |
open,sealed(ZZ,RS,2RS) |
||
features |
Long-life with high quality |
||
Low-nosie with strict controlling the quality of bearings | |||
High-load by the advanced high-technical design | |||
Competitive price, which has the most valuable | |||
OEM service offered, to meet the customers'requirements | |||
application |
gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc. |
||
package |
pallet,wooden case,commercial packaging or as customers' requirement |
||
price terms |
FOB,CFR,CIF,EXW |
delivery time |
3-5 days acccording the quantity |
ceramic bearing model nos
| Bearing No | Bearing No | Bearing No | Bearing No | Bearing No | Bearing No | Bearing No | Bearing No |
| 6000CE | 6200CE | 6300CE | 6800CE | 6900CE | 623CE | 1200CE | UC203CE |
| 6001CE | 6201CE | 6301CE | 6801CE | 6901CE | 624CE | 1201CE | UC204CE |
| 6002CE | 6202CE | 6302CE | 6802CE | 6902CE | 625CE | 1202CE | UC205CE |
| 6003CE | 6203CE | 6303CE | 6803CE | 6903CE | 626CE | 1203CE | UC206CE |
| 6004CE | 6204CE | 6304CE | 6804CE | 6904CE | 627CE | 1204CE | UC207CE |
| 6005CE | 6205CE | 6305CE | 6805CE | 6905CE | 628CE | 1205CE | UC208CE |
| 6006CE | 6206CE | 6306CE | 6806CE | 6906CE | 629CE | 1206CE | UC209CE |
| 6007CE | 6207CE | 6307CE | 6807CE | 6907CE | 603CE | 1207CE | UC210CE |
| 6008CE | 6208CE | 6308CE | 6808CE | 6908CE | 604CE | 1208CE | 51100CE |
| 6009CE | 6209CE | 6309CE | 6809CE | 6909CE | 605CE | 1209CE | 51101CE |
| 6010CE | 6210CE | 6310CE | 6810CE | 6910CE | 606CE | 1210CE | 51102CE |
| 6011CE | 6211CE | 6311CE | 6811CE | 6911CE | 607CE | 2200CE | 51103CE |
| 6012CE | 6212CE | 6312CE | 6812CE | 6912CE | 608CE | 2201CE | 51104CE |
| 6013CE | 6213CE | 6313CE | 6813CE | 6913CE | 609CE | 2202CE | 51105CE |
| 6014CE | 6214CE | 6314CE | 6814CE | 6914CE | 683CE | 2203CE | 51106CE |
| 6015CE | 6215CE | 6315CE | 6815CE | 6915CE | 684CE | 2204CE | 51107CE |
| 6016CE | 6216CE | 6316CE | 6816CE | 6916CE | 685CE | 2205CE | 51108CE |
| 6017CE | 6217CE | 6317CE | 6817CE | 6917CE | 686CE | 2206CE | 51109CE |
| 6018CE | 6218CE | 6318CE | 6818CE | 6918CE | 687CE | 2207CE | 51110CE |
| 6019CE | 6219CE | 6319CE | 6819CE | 6919CE | 688CE | 2208CE | 51111CE |
| 6020CE | 6220CE | 6320CE | 6820CE | 6920CE | 689CE | 2209CE |
Are you interested in these products? If so,pls send inquiry to me. :)
