si3n4 608 full ceramic ball bearings
- 1000000 Piece / Pieces per Month
- Qingdao / Shanghai
- T/T Credit Card
- 6903 High temperature resistance zirconia ceramic ball bearing
- 689 zz Zro2 Zirconium Oxide Full Ball Ceramic Bearing 9*17*4mm With Corrosion Resistance For Hand Spinner
- 689 Full Ceramic Si3n4 Bearing Durable Deep Groove Ball Bearing 689 683 684 685 686 687
- hot sale skate bearing si3n4/zro2 608 full ceramic bearings
- Hybrid Ceramic Ball Bearing 6207 6207E 101615/Hydrid
- 6007 Full Ceramic Bearings 35X62X14 ball bearing 6007
Product Details
Brand Name: | Yuki bearing/YWS | Bore Size: | 8, | Outside Diameter: | 22, |
Model Number: | 608 | Place of Origin: | Shandong, China |
Product Description

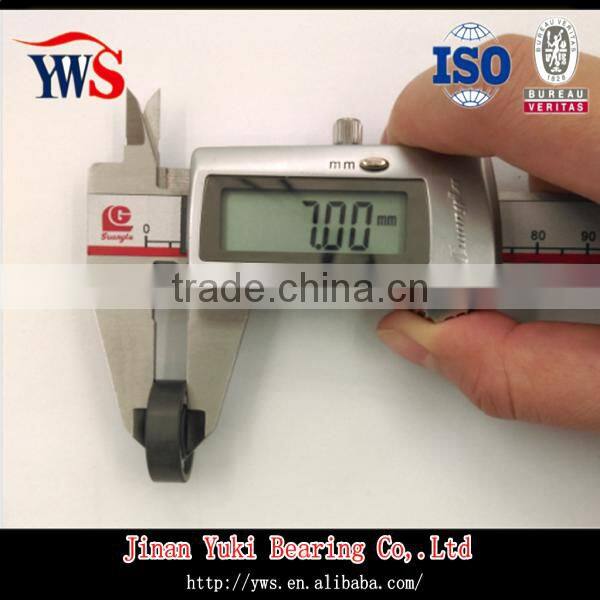

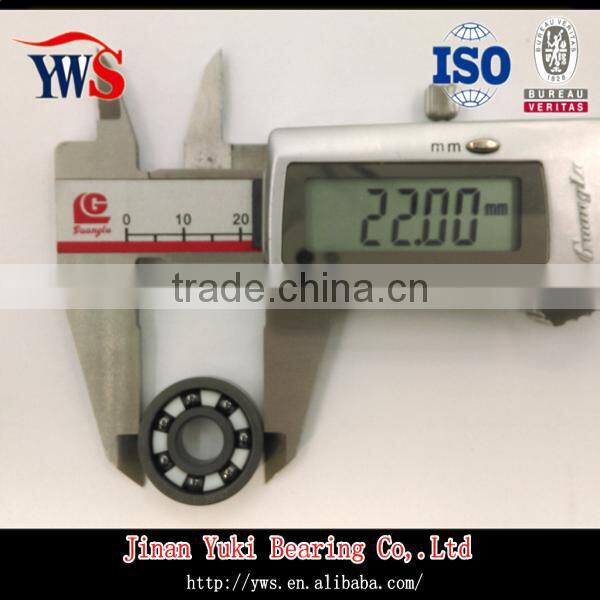

si3n4 608 full ceramic ball bearings

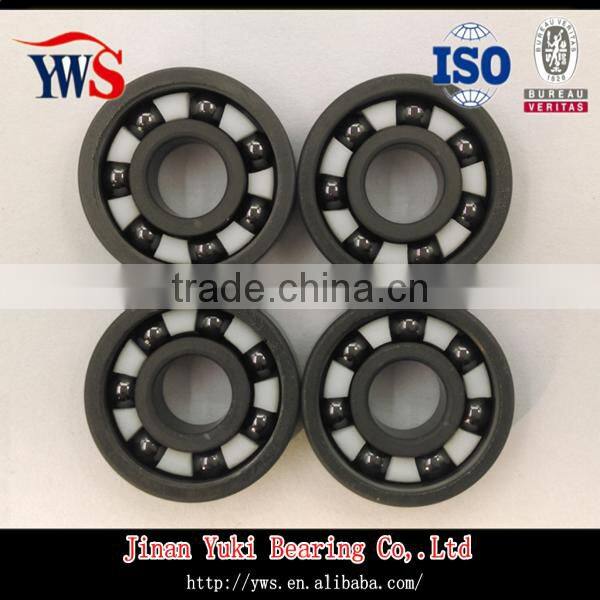

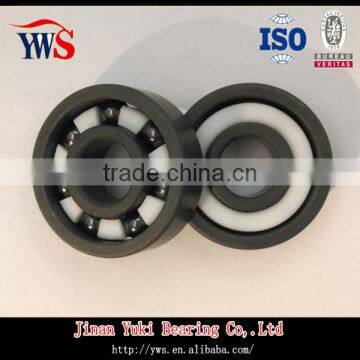

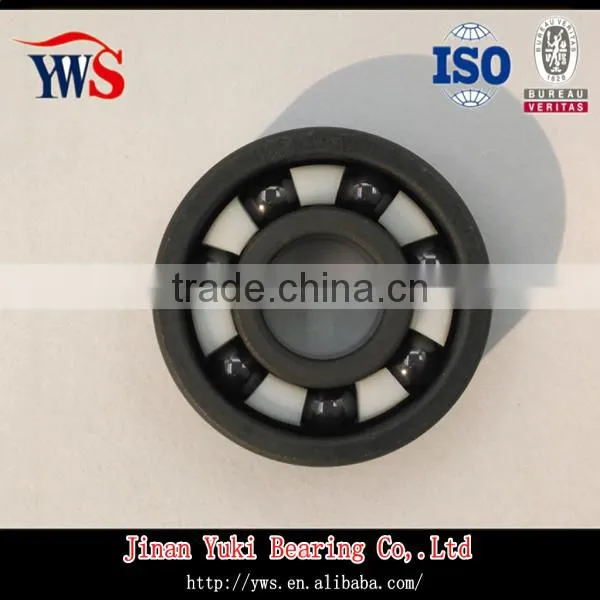

Full Si3N4 ceramic bearing 608CE---OPEN TYPE

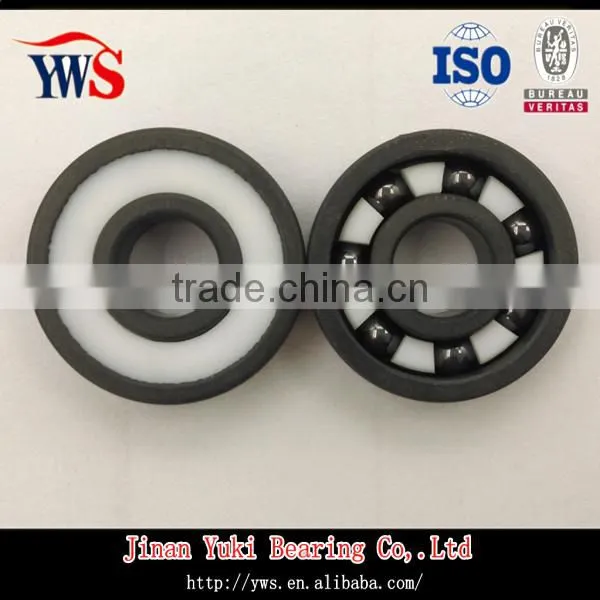

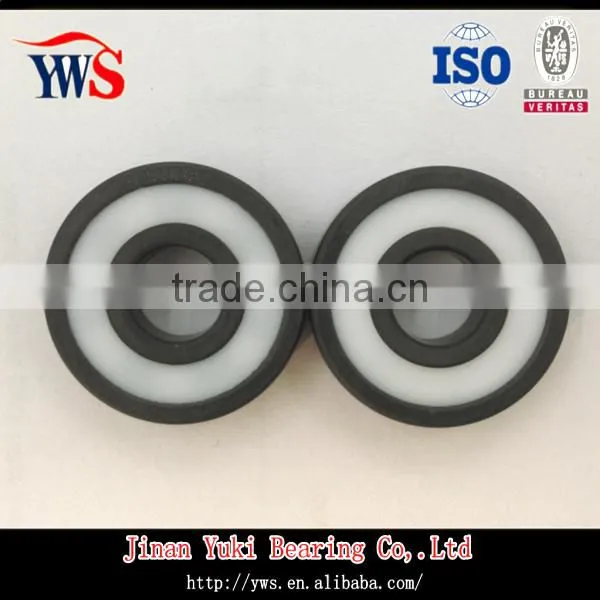

Full Si3N4 ceramic bearing 608CE---Rubber seal
If you need 608 608zz 608 2rs,please Click the next picture:
If you need hybrid ceramic 608,please Click the next picture:
If you need full ceramic 608 ,please Click the next picture:
If you need 8mm spacer,please Click the next picture:
608 deep groove ball bearing
608 in the bearing 6 represents six deep groove ball bearings, 0 is the size of the series, 8 shows the inner diameter size of 8mm, if the bearings are standard parts, dimensions is usually one of the older models represented by 80018. Dimensions are: diameter 22mm, height 7mm, inner diameter of 8mm. Ball 7, ball diameter 3.969mm. But there are non-standard size according to user specifications Manufacturing
Bearing Material:
Shuttered represented in the model suffix ZZ (608ZZ), plastic cover model suffix 2RS (608-2RS) represented. Materials are carbon steel, bearing steel (GCr15), stainless steel, plastic, ceramics and the like. Cage: nylon cage, iron cage, brass cage and so on.
Purpose:
608 bearings are generally used in the motor, motor, electronic accessories, trolleys, skates, etc. related fields.
Item No. | d | D | B | Cr | Cor | Weight |
| mm | mm | mm |
|
|
|
605 | 5 | 14 | 5 | 1.33 | 0.51 | 0.0045 |
606 | 6 | 17 | 6 | 2.19 | 0.87 | 0.007 |
607 | 7 | 19 | 6 | 2.24 | 0.91 | 0.007 |
608 | 8 | 22 | 7 | 3.35 | 1.4 | 0.012 |
609 | 9 | 24 | 7 | 3.4 | 1.45 | 0.033 |
624 | 4 | 13 | 5 |
|
| 0.003 |
625 | 5 | 16 | 5 | 1.13 | 0.56 | 0.005 |
626 | 6 | 19 | 6 | 2.01 | 1.05 | 0.008 |
627 | 7 | 22 | 7 | 2.53 | 1.36 | 0.014 |
628 | 8 | 24 | 8 |
|
|
|
629 | 9 | 26 | 26 |
|
| 0.02 |
696 | 6 | 15 | 9 |
|
|
|
6000 | 10 | 26 | 8 | 4.55 | 1.96 | 0.019 |
Skateboard Bearings specification:
Brand | YWS OR OEM | ||
Item | 608 Skateboard Bearings | ||
Model | 608 | ||
Material |
GCr15 steel,carbon steel,stainless steel etc. | ||
Precision | P0,P2,P5,P6,P4 | ||
Size | 8*22*7mm | ||
bore size | 1-1200mm | outer diameter | 3-1800mm |
cage type | brass;steel plate,nylon,aluminium alloy etc. | ||
seal type |
open,sealed(ZZ,RS,2RS) | ||
features | Long-life with high quality | ||
Low-nosie with strict controlling the quality of bearings | |||
High-load by the advanced high-technical design | |||
Competitive price, which has the most valuable | |||
OEM service offered, to meet the customers'requirements | |||
application | gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc. | ||
package | pallet,wooden case,commercial packaging or as customers' requirement | ||
price terms | FOB,CFR,CIF,EXW | delivery time | 3-5 days acccording the quantity |
Are you interested in these products? If so,pls send inquiry to me. :)
