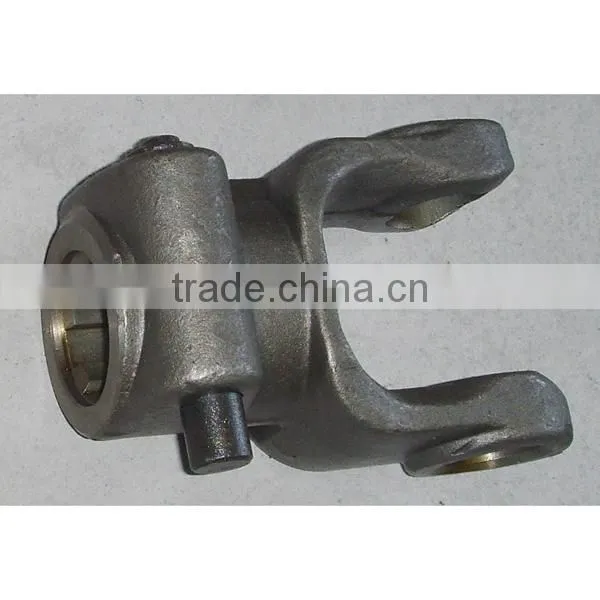

Quick Release Outer Yokes for PTO Shaft

Specifications

Our factory is specialized in producing PTO SHAFT for farm machines. We supplied spare parts to Euro Cardan in Italy and for other countries and zones all over the world.

Agricultural PTO shaft Features:

1. We provide pto shaft series B1, B2, B3, B4, B5, B6, B7, B8  (Triangular tube) . L1,L2,L3,L4,L5,L6,L7,L8 (Lemon tube)

2.Cross journal specifications:  series1: 22*54mm       series 2: 23.8*61.3mm     series 3: 27*70mm      series 4: 27*74.6mm     series 5: 30.2*80mm      series 6: 30.2*92mm    series 7: 30.25*106.35mm   series 7N: 35*94mm    series 8: 35*106.5mm

3.Types of tube: triangle profile tube, lemon profile tube.

4. Minimum overall length: 600-1800mm or 27"-60"

5.End yokes & safety devices: quick release yokes, plain bore yokes, free wheel(RA), friction type torque limiters(FF, FFS, FCS), ratchet type torque limiter(SA), shear bolt torque limiter(SB), etc.

6.Plastic safety guard: black or yellow.

We also provide splined shaft.If you have any interest, please don't hesitate to let us know. You could visit our website for more detailed information.
