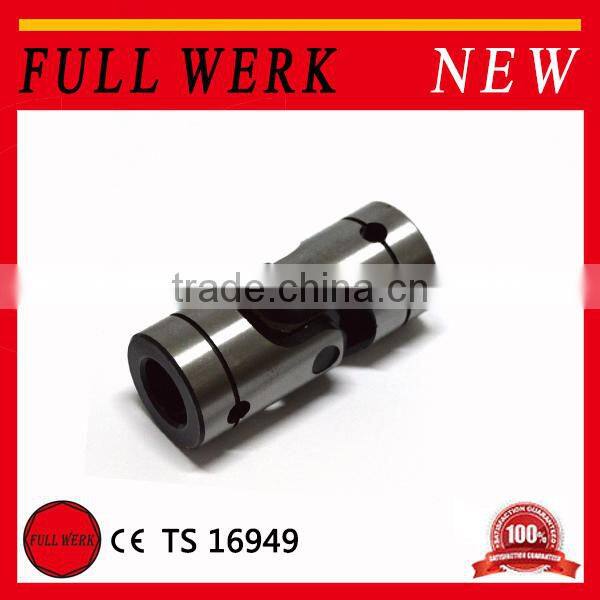

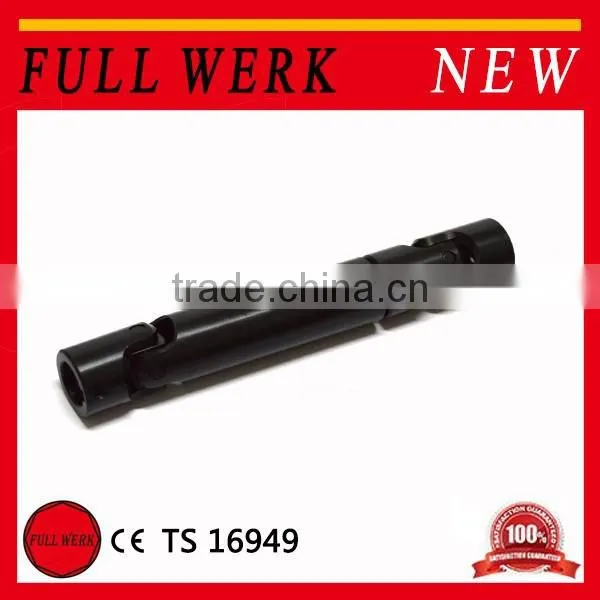

Black color drive shaft universal flexible coupling for scania truck, Universal coupling for toyota spare parts dubai, flexible joint coupling, Flexible coupling
1. TS-16949, ISO9001 quality system
2. OEM Products
3. Sample,drawing and ODM is welcome.
4. LOW MOQ
5.13 years experience
PB series
| MODEL | D(H7) | E | L2 | L1 | A | L+ALL | L+ALL | L+ALL | SPLINE | K(JS9) | T | F(H8) | SW(H8) |
| XM20 | 10 | 20 | 45 | 22.5 | 11 | 160+45 | 180+60 | 195+75 | 6-14*11 | 3 | 11.4 | 10 | 10 |
| XM22 | 10 | 22 | 48 | 24 | 13 | 175+45 | 190+60 | 205+75 | 6-14*11 | 3 | 11.4 | 10 | 10 |
| XM25 | 12 | 25 | 56 | 28 | 15 | 220+50 | 250+100 | 300+150 | 6-16*13 | 4 | 13.8 | 12 | 12 |
| XM28 | 14 | 28 | 60 | 30 | 15 | 240+50 | 265+100 | 330+150 | 6-20*16 | 5 | 16.3 | 14 | 14 |
| XM32 | 16 | 32 | 68 | 34 | 17 | 255+50 | 280+100 | 350+150 | 6-20*16 | 5 | 18.3 | 16 | 16 |
Why Speedway?
1.OEM,ODM and label production service.
2.Strict quality supervision ,competitive price & good reputation in the market.
3.Monthly production volume over 10,000pcs.
FAQ
Q1. What about lubrication?
A: Universal joints with plain bearings will need lubrication (unless intermittent running at low speeds). This is normally achieved by adding grease filled rubber gaiters. Joints with needle roller bearings do not need lubrication or gaiters.
Q2. Do output speeds match input speeds?
A: A single joint running at an angle will give an output speed fluctuation 4 times per revolution. Sometimes this is not important, for example hand winding. To achieve a smooth output speed you need a second joint installed so that the running angle of each joint is equal. Alternatively use a double joint.
Q3. How are universal joint installed?
A: If two single joints are used, it is important to align the knuckles of the joints. Also to achieve a smooth output speed, the running angles of both joints should be equal.
Q4. What type of universal joint do I select?
A: The slower the speed, the better suited are types with plain bearings.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
