High Quality Yellow SWP Universal Coupling, Alex Shaft

Name

 cardan shaft, drive shaft, transmission shaft,universal coupling shaft

Type

 SWP-A,SWP-B,SWP-C,SWP-D,SWP-E,SWP-FG,SWP-F,SWP-G,

 SWP-ZG

Quality Guarantee

  TS16949

Use for

  Use for rolling mill , marine drives, crane and so on

Material

  Steel 45#, 60#, As per customer's requirment

Production Standard

  According drawing or sample to manufacturing. OEM is available too

Manufacturing Method

  Casting or forging, machining

Surface Finish

  Heat treatment, rust prevention

Inspection

  The production is inspected OK before package

Inspection Method

  Assembly shaft with dynamic balance test to avoid virbration

  Spare parts check measurement

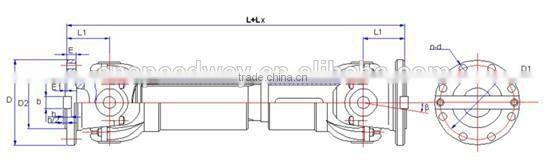

Model

Rotary Diameter
D(mm)

Axial Angle
β(°)

Nominal Torque
Tn(KN·m)

Fatigue Torque
Tf(KN·m)

Lmin/Flexibles
(mm)

A

B

C

D

SWP160

160

≤10°

16

8

660/50

585/50

340/-

430/-

SWP180

180

20

10

752/60

640/60

380/-

474/-

SWP200

200

31.5

16

823/70

730/70

440/-

544/-

SWP225

225

40

20

933/73

830/76

520/-

636/-

SWP250

250

63

31.5

978/80

860/80

540/-

690/-

SWP285

285

90

45

1133/100

1000/100

600/-

760/-

SWP315

315

140

63

1250/110

1120/110

680/-

860/-

SWP350

350

180

90

1380/120

1230/120

740/-

940/-

SWP390

390

250

112

1495/120

1310/120

820/-

1060/-

SWP435

435

355

160

1710/150

1555/150

940/-

1180/-

SWP480

480

450

224

1910/170

1740/170

1060/-

1360/-

SWP550

550

710

315

2135/190

1905/190

1160/-

1460/-

SWP600

600

1000

500

2580/210

2600/210

1440/-

1840/-

SWP640

640

1250

630

2685/230

2780/230

1540/-

1980
