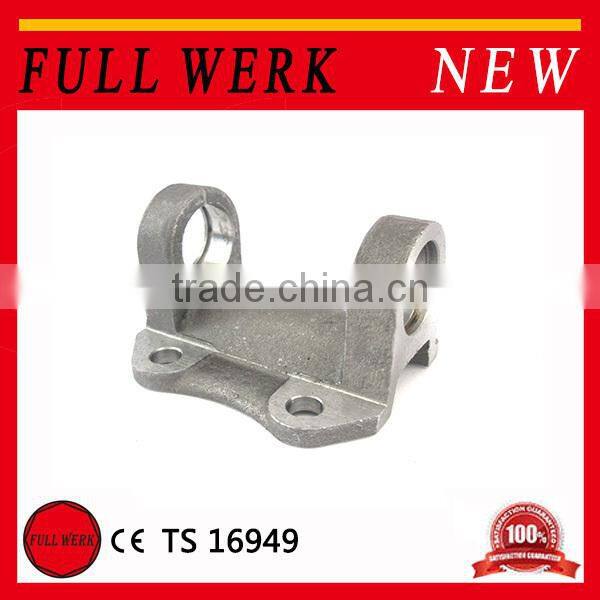

Drive shaft parts cardon steel forging flange yoke
Drive shaft parts cardon steel forging flange yoke. Meet TS/ISO16949 quality certification.High intensity and rigidity ,competitive price, excellent performance and long using life.
| Material: | 1045 steel /C45 or as per customer's requirement |
| Manufacture method: | Forging or casting |
| Surface finish: | Heat treatment & rust prevention |
| LOGO on product & package: | Neutral with no LOGO or as per customer's requirement |
| Package: | PVC bag + Plywood box , or as per customer's requirement. |
OEM are welcome.
Your sample or drawing request are welcome.
Specifications:
Competitive price, through the ISO 9001:2008
Materials: Alloy steel, hot-dip galvanized steel
Made by water glass casting
Fine CNC machining
Many surface treatments are available
Other casting processes: sand casting, die casting, lost-foam casting and permanent mold casting
Materials range: cast iron, ductile cast iron, carbon steel, steel alloy, stainless steel, brass, aluminum and zinc alloy
Weight: 0.03 to 1000kg
Design and production as per customer's requirement
We can make assembly products for you
Short delivery lead time for both samples and orders
Investment casting process describing:
We offers to its customers two types of investment cast processes
They are the shell process and the water glass process
The shell process is used to cast complex high quality parts with requirements of a very good surface finish and close dimensional tolerances
The water glass process is typical of the process in the early stages of investment castings
It generally capable of much larger castings than the shell process, but does not have as good of surface finish or tolerances
Water glass process provides parts that have better surface finish and dimensional tolerances than sand castings
A wide range of alloys is available for both processes
They includes carbon steels, low alloy steels, stainless steels, tool steels and copper based alloys
Other material may be available upon request
Shell investment cast parts can range from a weight of just a few ounces to approximately 50 pounds
If you are concerned with precision in very small parts, we are especially proficient at very fine detail work including teeth and serrations
Water glass castings may range in weight from several ounces to approximately 175 pounds
First article layouts and spectrometer material certifications are provided with all first article samples
A variety of secondary operations can be performed on both types of investment castings
They includes heat treatment, machining, plating, painting, polishing and buffing, assembly services and even custom packaging

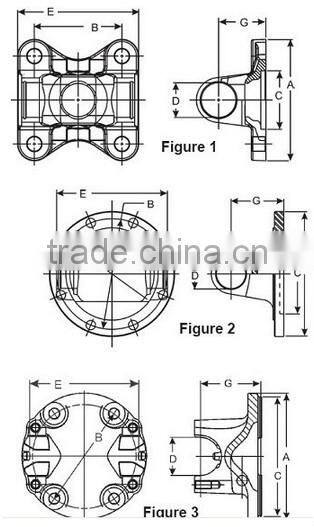

Drawing of Flange Yoke (Driveshaft)
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ZDC No. | A | B | C | D | Spicer No.: | Similar | U-joint | Vehicle | Series |
| 864-01 | 72 | 132 | Φ45 | Φ150 | 02-334 | AT1352 | 5-12100X 127.75*45.05 | Mercedes Benz 1519/2219/2220 | 1680 GW2A GW5ALT |
| 864-02 | 62.8 | 98 | Φ38 | Φ130 | 3-2-1139 | AT1350 | 5-12213X 62.1*38.05 | Mercedes Benz 1113 a 2213 | 1510 |
| 864-03 | 85.7 | 191.8 | Φ49.23 | Φ203 | 6.5-2-329 | AT1057 | 5-281X | Scania R-T112 Volvo N-NL10-12 | 1810 |
| 864-08 | 58 | 130 | Φ45.05 | Φ120 | 02-251 | AT1349 | 5-12213XS | M.Benz OM321,1111 | 1510 |
| 864-20 | 41.15 | 98.4 | Φ30.5 | Φ133.3 | 3-2-1579 | Ford,Cobra Mustang 8.8 | 1350 | ||
| 864-29 | 3-2-1719 | Ford Pickup F450 | |||||||
| 864-30 | 3-2-1709 | Ford F150/250/350 | |||||||
| 864-31 | 3-2-159 | Ford C64,D64 VW 6-80 D-700 | 1410 | ||||||
| 864-32 | 3-2-1159 | Valtra BM100 AGCO | 1410 | ||||||
| 864-33 | 3-2-119 | FORD 2004-2006 GTO rear 2004-2007 CTS-V Front G8 all Front and Rear 2010-2011 Camaro Front and Rear | 1350 | ||||||
| 864-34 | 4-2-669 | Komatsu | 1550 |
Packing detail:
each product will be packed in individual box with label of all information on it, and boxes will be packed in carton, cartons will be packed in wooden cases. Heavy parts, light parts and fragile parts will be packed separately
Delivery Detail:
30-35 days for sea order based on containers.
Q1. What is your company major products?
A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.
Q2. What is the MOQ?
A: Usually our MOQ is 100pcs.
Q3. What is the delivery date?
A: It takes 5~7 days if there is stock, but takes 30 days if there is no stock.
Q4. What is the packet?
A: Neutral packing or customer made packing.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
