Specifications

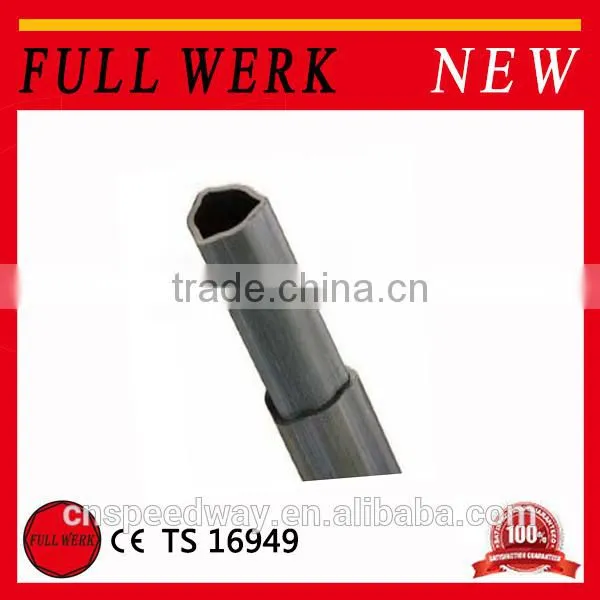

1. Tractor parts cold drawn 2 lemon tube for pto shaft in China
2. All parts are forged,casted
3. Sample welcome
4.LOW MOQ
5. Warranty:1 Years
6. Sample: available
7. OEM: accepted
Below you will find the tube sizes for Walterscheid metric drivelines tubes as shown. Again, please note that the measurements are given in metric measure. It is best to use metric calipers to get these measurements. Once you have established the size you have and the size and position you need, simply call us for availability.
| Make | Series | Position | O.D.(A) | Wall (B) | Length | Part# |
| Walterscheid | 2100, 2200 | Inner | 23.5mm | 4.0mm | 1500mm (59') | W-022513 |
| 2100, 2200 | Outer | 30.0mm | 2.8mm | 1500mm (59') | W-022515 | |
| Walterscheid | 2100, 2200, 2300 | Inner | 34.5mm | 4.0mm | 1500mm (59') | W-022514 |
| 2100, 2200, 2300 | Outer | 41.0mm | 3.0mm | 1500mm (59') | W-087637 | |
| Walterscheid | 2300, 2400, 2500 | Inner | 39.5mm | 4.5mm | 1500mm (59') | W-317582 |
| 2300, 2400, 2500 | Outer | 48.0mm | 4.0mm | 1500mm (59') | W-317583 | |
| Walterscheid | 2400, 2500, 2600 | Inner | 51.0mm | n/a | 1500mm (59') | W-317584 |
| 2400, 2500, 2600 | Outer | 61.0mm | n/a | 1500mm (59') | W-317585 |
| Constant Velocity Shaft Tubing - Rilsan Coated | ||||||
| Make | Series | Position | O.D. (A) | Wall (B) | Length | Part# |
| Walterscheid | 2208 | Inner | 23.5mm | n/a | 1000mm (39") | W-085465 |
| 2280, 2380 | Inner | 24.5mm | 4.0mm | 1000mm (39') | W-054079 | |
| 2280, 2380 | Outer | 41.0mm | 2.7mm | 1000mm (39') | W-087514 | |
| Walterscheid | 2380, 2480 | Inner | 39.5mm | 4.5mm | 1000mm (39') | W-047901 |
| 2380, 2480 | Outer | 48.0mm | 3.5mm | 1000mm (39') | W-089551 | |
| Walterscheid | 2480, 2580 | Inner | 51.0mm | n/a | 1000mm (39') | W-333336 |
| 2480, 2580 | Outer | 51.0mm | 4.5mm | 1000mm (39') | W-341738 | |
Why Speedway?
1. Customized and designed according to the customers' sample, drawing or requirements.
2. Following the customers' requirements or as our usual packing.
3. Customer-First, Price-Competitive, Quality- High, Services- Professional.
4. Flexible minimum order quantity.
5. More than 10 years experience
For more information about us, contact us right away.
Q1: Can I buy one of your products for Sample?
A: Yes, we can provide you sample, and will send you by DHL or according to your requirements, or find the cheapest forwards for you.
Q2: How could I know if the product suitable for my machine or not?
A: Pls tell us which product you are interested in, We will give you the main sizes, or you can provide your drawings or samples, we will make according to your drawings.
Q3: I want to find a supplier for my new products, can you help me ?
A: Yes, kindly offer us your drawings or samples. We will quote you the cost.
Q4: How long for your to make a new products?
A: Usually 20-35days for the drawing ones and 35-60 days for the sampled ones.
Q5: What is the payment method?
A: Our payment method: T/T, WEST UNION, PAYPAL.
Q6: How is the quality?
A: Strict control before shipment.
Q7: What are our major market?
A: Our main markets are Middle east, Africa, Southeast Asia and South America, European…
