Specifications:

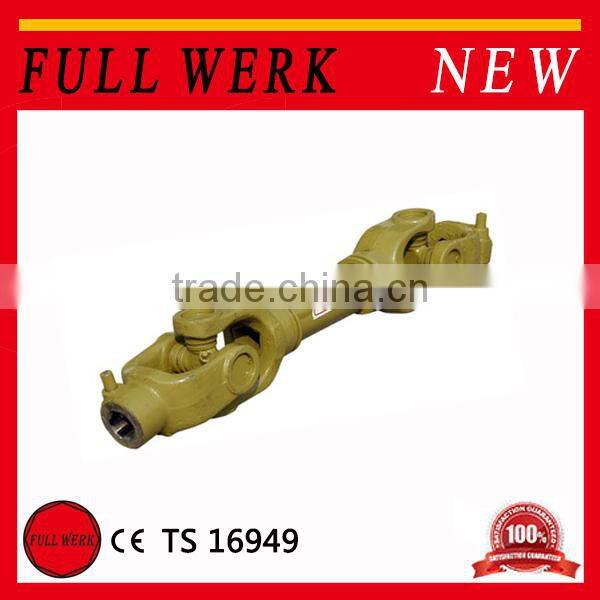

1. High quality Farm tractor driving tractor pto shaft cover
2. All parts are forged.
3. Sample welcome
4..LOW MOQ
Features:
1.Model Number/Cross Series: | T01,T02,T03,T04,T05,T06,T07,T08 and some special cross Journal |
2. Dimension/Size: | Minimum overall length: 600-1800mm or 27"-60" |
3. Working Condition: | For Tractors, Trucks and Agricultural Use |
4. Shield Colour: | Yellow or black |
5. Material: | Steel and Plastic |
6. Tube: | Triangular, Lemon, Star and Splined |
7. Apply | Tractor, Rotary Cultivator, Planter Machine ,Farm and etc. |
8. Certificate | CE Certificate |
PTO shaft structure:
Technical data:
Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
Series 8 | 35mm | 106.5mm | 70KW | 95HP | 110KW | 150HP |
Series38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
Product advantages:
1.All parts are forged.
2. Use vertical broacher machine,this will produce good centric degree.
3. Plastic cover can work normally between -35 °C to 80 °C .
4. All torque limiter are torque set ready before transportation.
5. The highest power transmission can reach 200HP (series 48).
Why Speedway?
1. Customized and designed according to the customers' sample, drawing or requirements.
2. Following the customers' requirements or as our usual packing
3. Customer-First, Price-Competitive, Quality- High, Services- Professional.
4. Flexible minimum order quantity
For more information about us, contact us right away.
Q1: Can I buy one of your products for Sample?
A: Yes, we can provide you sample, and will send you by DHL or according to your requirements, or find the cheapest forwards for you.
Q2: How could I know if the product suitable for my machine or not?
A: Pls tell us which product you are interested in, We will give you the main sizes, or you can provide your drawings or samples, we will make according to your drawings.
Q3: I want to find a supplier for my new products, can you help me ?
A: Yes, kindly offer us your drawings or samples. We will quote you the cost.
Q4: How long for your to make a new products?
A: Usually 20-35days for the drawing ones and 35-60 days for the sampled ones.
Q5: What is the payment method?
A: Our payment method: T/T, WEST UNION, PAYPAL.
Q6: How is the quality?
A: Strict control before shipment.
Q7: What are our major market?
A: Our main markets are Middle east, Africa, Southeast Asia and South America, European…
