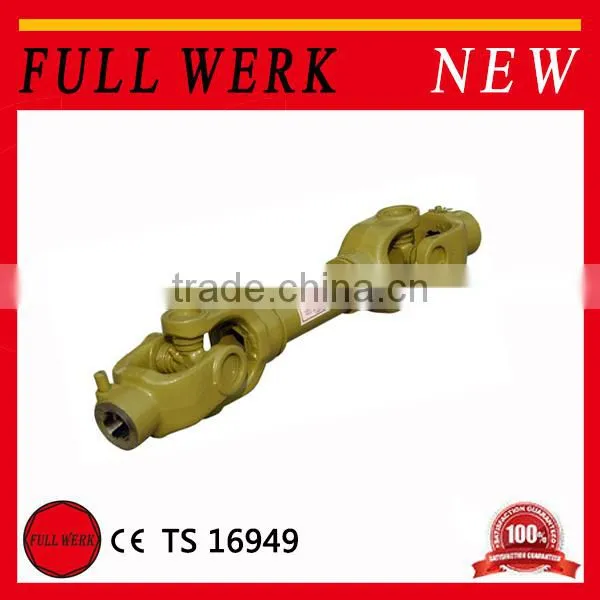

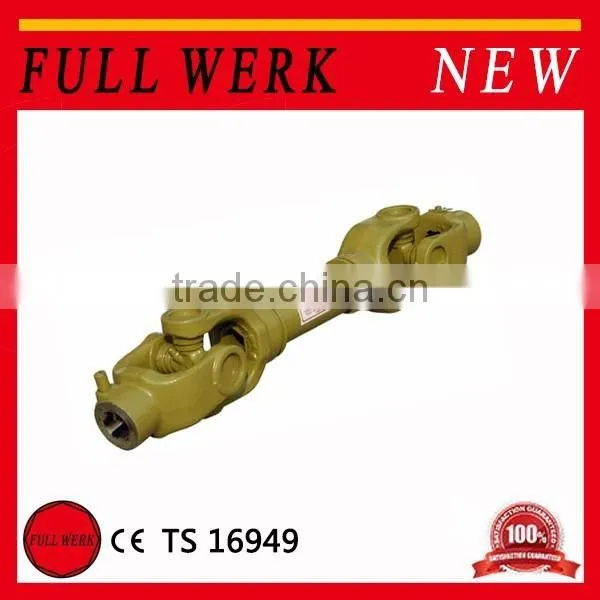

Agriculture machinery pto shaft with shear bolt torque limiter
Application:
1.For Tractor,Rotary Cultivator,Planter Machine ,Farm and etc.
2.Wide Angle Joint, Shear Bolt Torque Limiter,Friction Torque Limiter
3.Cross Journal Size: Series 1# to Series 8#
4.Splined Yokes: Push Pin, Ball Attachment,Collar Yoke
5.CE Certificate
PTO shaft structure:
Technical data:
| 1.Model Number/Cross Series: | T01,T02,T03,T04,T05,T06,T07,T08 and some special cross Journal |
| 2. Dimension/Size: | Minimum overall length: 600-1800mm or 27"-60" |
| 3. Working Condition: | For Tractors, Trucks and Agricultural Use |
| 4. Shield Colour: | Yellow or black |
| 5. Material: | Steel and Plastic |
| 6. Tube: | Triangular, Lemon, Star and Splined |
| 7. Apply | Tractor |
| Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
| Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
| Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
| Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
| Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
| Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
| Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
| Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
| Series 8 | 35mm | 106.5mm | 70KW | 95HP | 110KW | 150HP |
| Series 38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
1.OEM,ODM and label production service.
2.Strict quality supervision ,competitive price & good reputation in the market.
3.Monthly production volume over 10,000pcs.
Hangzhou Speedway import & export Co.,Ltd has been specialized in supply of drive lines products such as Automotive drive shaft, Agriculture PTO drive shaft, Heavy duty industrial drive shaft, Cardan shaft, Propeller shaft, Universal coupling, Steering joint, Center support bearing and all kinds of components of drive lines.
Q1. What is your company major products?
A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.
Q2. What is the MOQ?
A: Usually our MOQ is 100pcs.
Q3. What is the delivery date?
A: It takes 5~7 days if there is stock, but takes 30 days if there is no stock.
Q4. What is the packet?
A: Neutral packing or customer made packing.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
