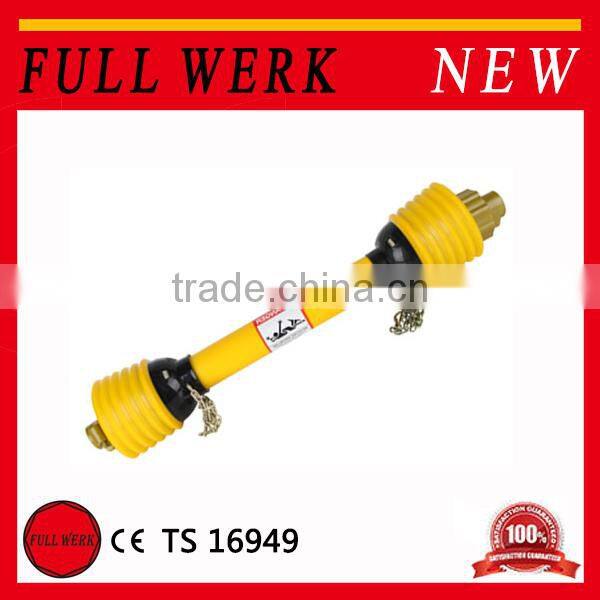

Hangzhou speedway FULL WERK agricultural tractor pto shaft cover with CE certificate
Detailed Specifications:
| 1. Cross Journal Size: | Series 1# to Series 8# |
| 2. Material: | Steel and Plastic |
| 3. Dimension/Size: | Minimum overall length: 600-1800mm or 27"-60" |
| 4. Shield Colour: | Yellow or black |
| 5.Other parts: | Wide Angle Joint, Shear Bolt Torque Limiter,Friction Torque Limiter |
| 6. Tube: | Triangular, Lemon, Star, etc |
| 7. Certificate : | CE Certificate |
PTO shaft structure:
Product advantages:
1.All parts are forged.
2. Use vertical broacher machine,this will produce good centric degree.
3. Plastic cover can work normally between -35 °C to 80 °C .
4. All torque limiter are torque set ready before transportation.
5. The highest power transmission can reach 200HP (series 48).
Technical data:
Item |
Cross journal size |
540dak-rpm |
1000dak-rpm |
|||
Series 1 |
22mm |
54mm |
12KW |
16HP |
18KW |
25HP |
Series 2 |
23.8mm |
61.3mm |
15KW |
21HP |
23KW |
31HP |
Series 3 |
27mm |
70mm |
26KW |
35HP |
40KW |
55HP |
Series 4 |
27mm |
74.6mm |
26KW |
35HP |
40KW |
55HP |
Series 5 |
30.2mm |
80mm |
35KW |
47HP |
54KW |
74HP |
Series 6 |
30.2mm |
92mm |
47KW |
64HP |
74KW |
100HP |
Series 7 |
30.2mm |
106.5mm |
55KW |
75HP |
87KW |
18HP |
Series 8 |
35mm |
106.5mm |
70KW |
95HP |
110KW |
150HP |
Series38 |
38mm |
102mm |
70KW |
95HP |
110KW |
150HP |

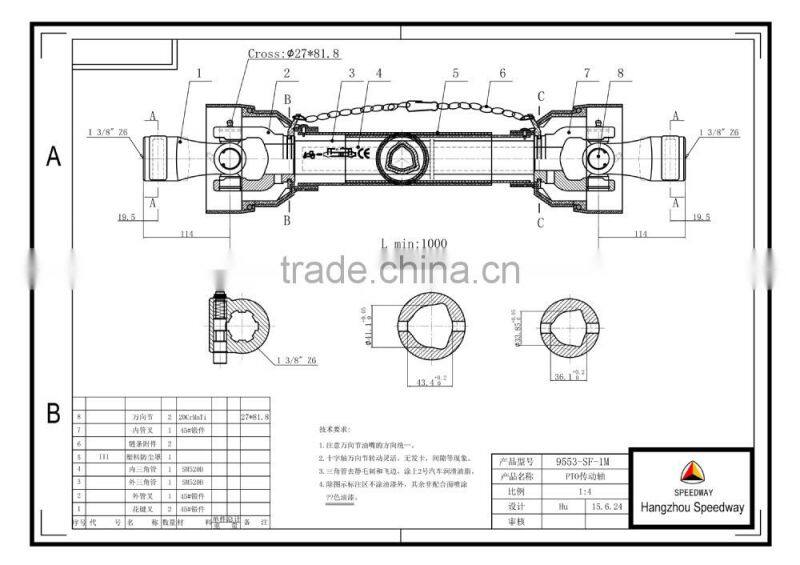

Drawings for reference:
Related Products:
Production Process:
Why Choose Speedway?
1. Trade condition:
MOQ is 50 pcs or according to stocks without minimum Qty.
Payment term: T/T, Paypal, Western Union
Delivry time: 30 days
2.Customized and designed according to the customers' sample, drawing or requirements.
3. Acceptable small order
4.Customer-First, Price-Competitive, Quality- High, Services- Professional.
5. Low shipping cost and International standard package
6. With 24 hours reply
For more information about us, contact us right away.
ABOUT SPEEDWAY :
Name: Hangzhou Speedway Import & Export Co.,Ltd
Type:Manufacture, Export agency, Buying office
Location: Hangzhou, zhejiang China
Production Range: 1. Drive shaft for automotive and components
2.PTO drive shaft for agricultural and spare parts
3.Universal joint
4.Universal coupling
5.Heavy duty universal coupling
6.Center support bearing
Our Market: North America, South America, Europe, Russia, Middle east, South Africa, Asia
Our website: ; www.cnspeedway.en.china.cn
Facoty photos and testing equipment:
Package:
Main certificate:
Q1. What is your company major products?
A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.
Q2. What is the MOQ?
A: Usually our MOQ is 100pcs.
Q3. What is the delivery date?
A: It takes 5~7 days if there is stock, but takes 30 days if there is no stock.
Q4. What is the packet?
A: Neutral packing or customer made packing.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
