Double Acting DC Hydraulic Power Unit

Name: Double Acting DC Hydraulic Power Unit
Brand: WINTIN
SKU: 140029270
Availability: InStock

Double Acting DC Hydraulic Power Unit thumbnail-1

Double Acting DC Hydraulic Power Unit thumbnail-2

Double Acting DC Hydraulic Power Unit photo-1

Double Acting DC Hydraulic Power Unit photo-2

US$ 180 - 220 MOQ: 10 Sets

Key Specifications

Get Latest Price

Type:

Hydraulic Power Units

Model Number:

15DP

Brand Name:

WINTIN

Contact Supplier Request Quote Chat Now

Qingdao Wantong Hydraulic Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Hydraulic Power Units

Model Number 15DP

Brand Name WINTIN

Place of Origin Shandong, China

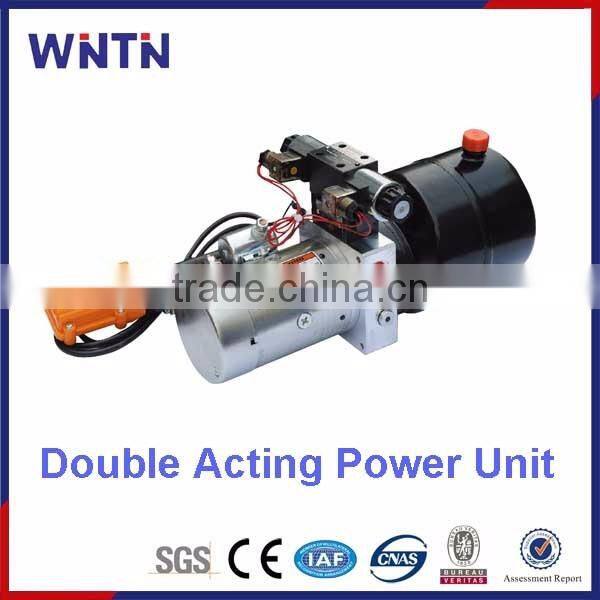

Double Acting Hydraulic Power Unit DC 12V and 24V

Features:

This power unit consists of high pressure gear pump,DC motor, multi-functional manifold, valves, tank, ect. It features stable performance and compact structure, and can be widely used in automotive, garden machineries, machine tools, logistics equipments etc.

Specifications:
* Rated Power: 1500W
* Rated Voltage: DC 12V / 24V
* Gear Pump Disp. : 2.1~2.5ml/Rev
* Tank Volume: 3~5L
* Maximum Operating Pressure: 20Mpa

* Various kinds of Oil Circuits optional.

Model	Voltage	Power	Nominated Speed	Displacement	System Pressure	Tank Volume
15DP-21-03	12VDC	1.5KW	2500RPM	2.1ml/r	20MPa	3L
20DP-25-05	24VDC	2.0kw	2500RPM	2.5ml/r	20MPa	5L

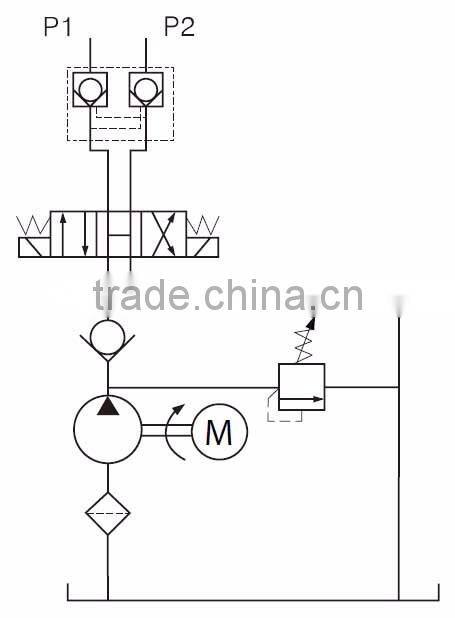

Oil Circuit:

We have various Oil Circuits for your option. Also we can design and make it as your requirements.

Notice:

1. The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2. Clean all the hydraulic parts concerned before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15~68 cst, which should also be clean and free of impurities. N46 hydraulic oil is recommended.
4. Change the oil after the first 100 hours of running the power unit, then change the oil every 3000 hours.
5. The power unit should be mounted horizontally.

WINTIN Hydraulic is an international supplier of Hydraulic parts main including Hydraulic Cylinder,Power Unit and Hydraulic System since 1986. We can design and make the Power Unit as your requirements.
