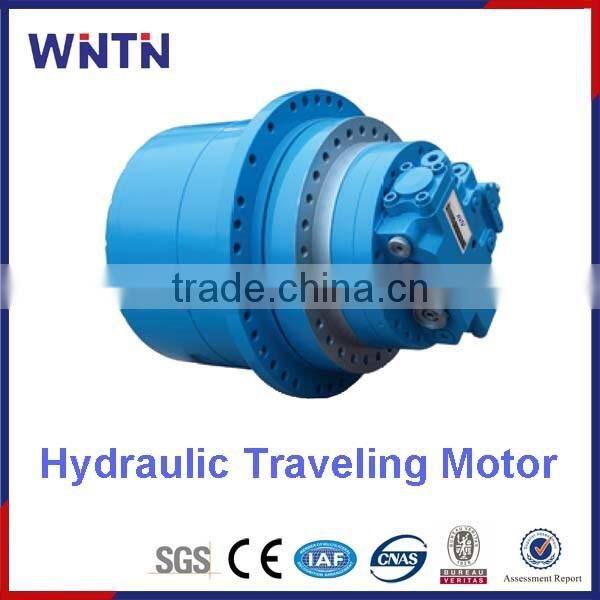

Hydraulic travel motor, Final Drive 20 Ton
- 2000 Piece / Pieces per Month
- Qingdao
- T/T
You May Like
Product Details
| Type | Hydraulic Motors | Model Number | WHM-20 | |
| Brand Name | WINTIN | Place of Origin | Shandong, China |
Product Description

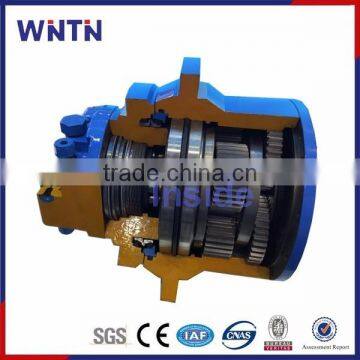

Hydraulic Motor Traveling Device
This Traveling Device is integrated with Hydraulic Motor and Traveling Reducer. It is widely used in hydraulic track drive traveling devices.
Features:
* Integrated with dual displacement axial piston motor and traveling reducer.
* Built-in Relief Valve, Anti-reverse Valve, Parking Brake and Dual speed switching device.
* Available in wide scope of ratios, high density, high efficiency, high reliability, small volume, smooth transmission, low noise as well as multi-level security protection and long life.
* Widely applied to hydraulic track drive traveling devices.
Input Flow | Swept Volume | Working Pressure | Brake Releasing | Gear Ratio | Output Torque | Output Speed | Direction | Machine Application |
60L/min | 22/44ml/l | 27.5Mpa | 2~7Mpa | 1/53.706 | 10500N.m | 66/37rpm | bidirectional | 6~8T |

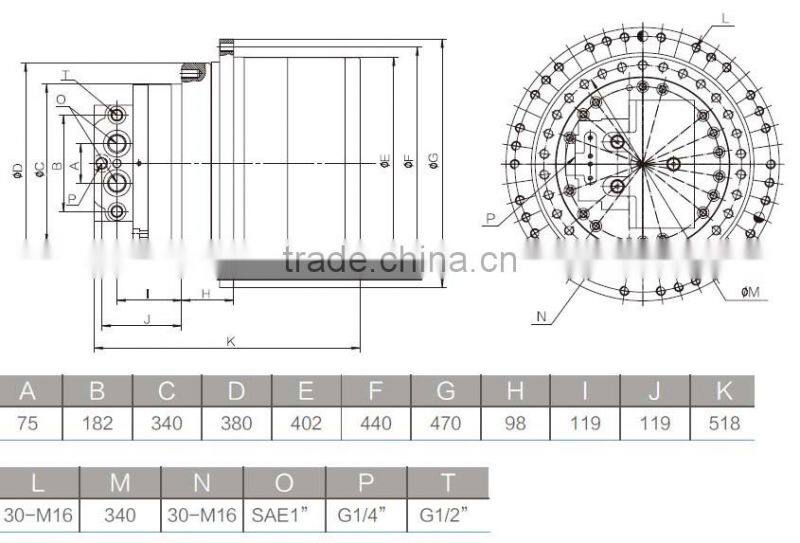

Dimensions:
Applications:
