High Performance 17.5-25 20.5-25 23.5-25 26.5-25 Wheel Loader Industrial Solid Tire

FOB Price

US$ 40 - 180 / Piece

20 Pieces(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Tire Design	Bias	Type	Solid Tire
Width	205 - 225mm	Certification	Other, ISO9001,DOT,ECE,GCC,CCC
Truck Model	Other, bobcat,case,caterpillar,new holland,thomas, waldon etc
OEM No.	Wheel loader SOLID TIRE	Place of Origin	Shandong, China
Brand Name	Aotai,Crownway	Model Number	17.5-25 20.5-25 23.5-25 26.5-25

Product Description

17.5-25, 20.5-25, 23.5-25, 26.5-25 wheel loader solid tyres, pneumatic tires

Suitable for lifter or forklift in tough working condition.

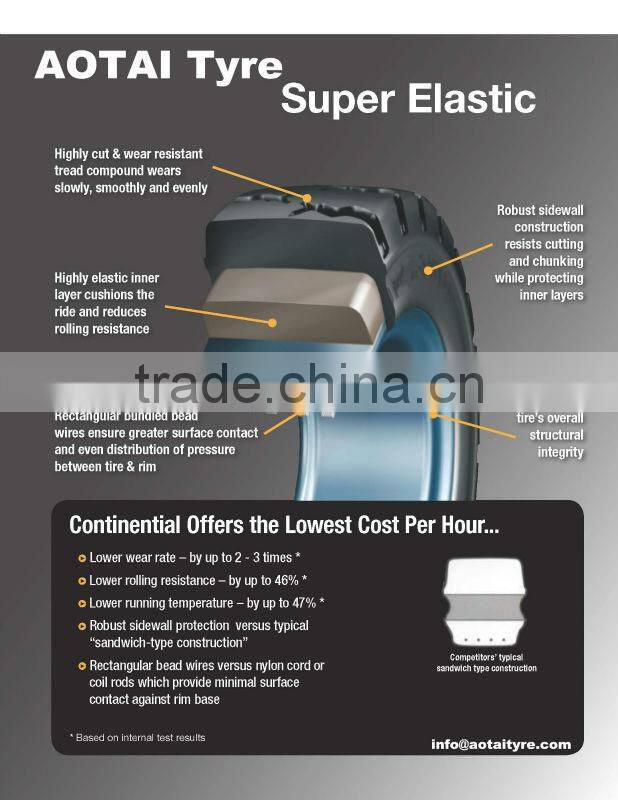

Super strong pneumatic shaped solid tire with special compounds.

Highly -elastic rubber compounds

Size	PATT.	RIM	OD.	Width	MAX.LOAD(kg)
			(Mm)	(mm)	Counterbalanced Lift Truck						Other Industrial 16km/h
					10km/h		16km/h		25km/h
					Driving	Steering	Driving	Steering	Driving	Steering
					wheel	wheel	wheel	wheel	wheel	wheel
4.00-8	AT-305	3.00	423	115	1055	845	1020	765	950	715	730
4.00-8	AT-305	3.75	423	115	1055	845	1020	765	950	715	730
15x41/2-8	AT-305	3.25	380	106	905	725	875	655	805	605	625
15x41/2-8	AT-305	3.00	380	106	905	725	875	655	805	605	625
5.00-8	AT-305	3.00	469	126	1210	970	1175	880	1095	820	840
16x6-8	AT-305	4.33	418	156	1500	1200	1445	1085	1345	1010	1035
18x7-8	AT-305	4.33	457	154	2350	1880	2265	1700	2110	1585	1620
21x8-9	AT-305	6.00	535	189	2810	2250	2715	2035	2530	1895	1940
23x9-10	AT-305	6.50	597	230	4005	3205	3845	2885	3605	2705	2765
27x10-12	AT-305	8.00	683	236	4465	3570	4315	3235	4020	3015	3080
6.00-9	AT-305	4.00	545	140	1920	1535	1855	1390	1730	1295	1325
6.50-10	AT-305	5.00	597	157	2640	2110	2545	1910	2370	1780	1820
200/50-10	AT-305	6.50	458	198	2370	1900	2290	1720	2135	1650	1630
7.00-9	AT-305	5.00	578	170	2730	2015	2605	1925	2370	1750	1785
7.00-12	AT-305	5.00	683	168	3015	2410	2910	2185	2710	2035	2075
7.00-15	AT-305	5.50	759	178	3590	2870	3465	2600	3225	2420	2475
7.00-15	AT-305	6.00	759	178	3590	2870	3465	2600	3225	2420	2475
7.50-15	AT-305	5.50	774	215	3690	2950	3425	2570	3190	2395	2450
7.50-15	AT-305	6.00	774	215	3690	2950	3425	2570	3190	2395	2450
7.50-15	AT-305	6.50	774	215	3690	2950	3425	2570	3190	2395	2450
7.50-16	AT-305	5.50	819	181	3910	3130	3780	2835	3520	2640	2700
7.50-16	AT-305	6.00	819	181	3910	3130	3780	2835	3520	2640	2700
8.25-15	AT-305	6.50	847	205	4940	3950	4765	3575	4440	3330	3405
8.25-12	AT-305	6.50	735	206	3325	2660	3215	2410	2995	2245	2295
8.15-15	AT-305	7.00	706	207	4090	3270	3945	2960	3675	2755	2820
8.25-20	AT-305	6.50	992	218	5425	4340	5420	3930	4880	3735	3475
7.50-20	AT-305	6.50	935	218	5165	4130	4985	3740	4640	3480	3560
250-15	AT-305	7.00	735	226	4365	3490	4220	3160	3930	2955	3010
250-15	AT-305	7.50	735	226	4365	3490	4220	3160	4625	2955	3010
9.00-16	AT-305	6.50	884	218	5135	4110	4965	3725	5380	3470	3550
300-15	AT-305	8.00	838	258	5990	4790	5780	4335	5170	4035	4130
28x12.5-15	AT-305	9.75	706	300	5730	4590	5540	4165	6410	3890	3955
32x12.1-15	AT-305	9.75	823	301	7120	5700	6880	5170	5805	4820	4910
9.00-20	AT-305	6.50	1038	238	6450	5160	6235	4675	5805	4355	4450
9.00-20	AT-305	7.00	1038	238	6450	5160	6235	4675	6510	4355	4450
10.00-20	AT-305	7.50	1073	252	7240	5795	6995	5245	6510	4885	4995
10.00-20	AT-305	8.00	1073	252	7240	5795	6995	5245	6810	4885	4995
11.00-20	AT-305	8.00	1058	277	7560	6050	7300	5490	6810	5120	5210
12.00-20	AT-305	8.00	1146	290	8445	6755	8105	6080	7600	5700	5825
12.00-20	AT-305	8.50	1146	290	8445	6755	8105	6080	7600	5700	5825
1200-24	AT-305	8.50	1247	315	9575	7655	9235	6925	9600	6450	6595
1400-24	AT-305	10.00	1368	375	12760	10210	12320	9240	11460	8595	8800

NEW SIZES is available each month.

Advantage of AOTAI Solid Tires:

R4/SM pattern:

Pn.SIZE SF.size Type OD/SW

10-16.5 31x6x10 R4 31.0/10.

12-16.5 33x6x11 R4 33.0/11.0

14-17.5 36x7x11 R4 36.0/11.0

8.00-16 33x6x8 SM 33.0/8.0

10-16.5 31x5x9 SM 31.0/9.0

12-16.5 33x6x10 SM 33.0/10.

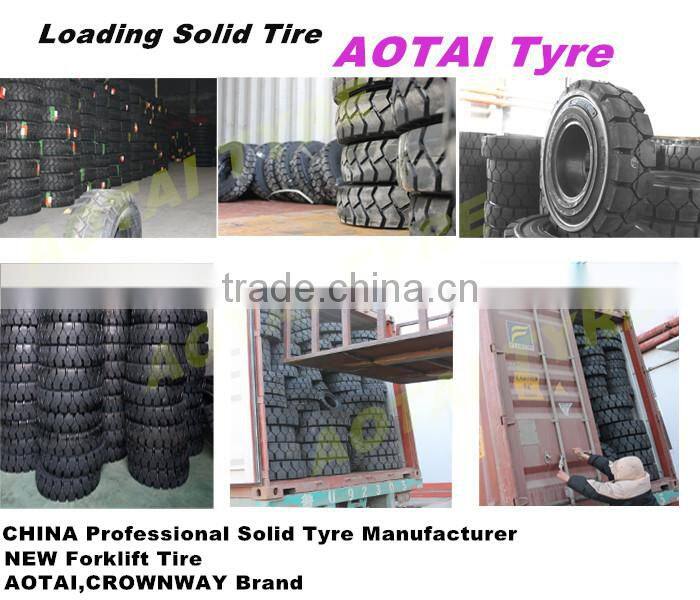

Packaging & Shipping

Our Services

What we have:

1, More than 20 years experience and quality control in this line.

2, Sale to 120 countries. Providing you with quality tyres and have a good feedback.

3,Prompt shipment and good warranty.

4,Payment Term: allowing TT or LC at sight to keep your money safe.

5.One-stop services and within 12 hours reply.
