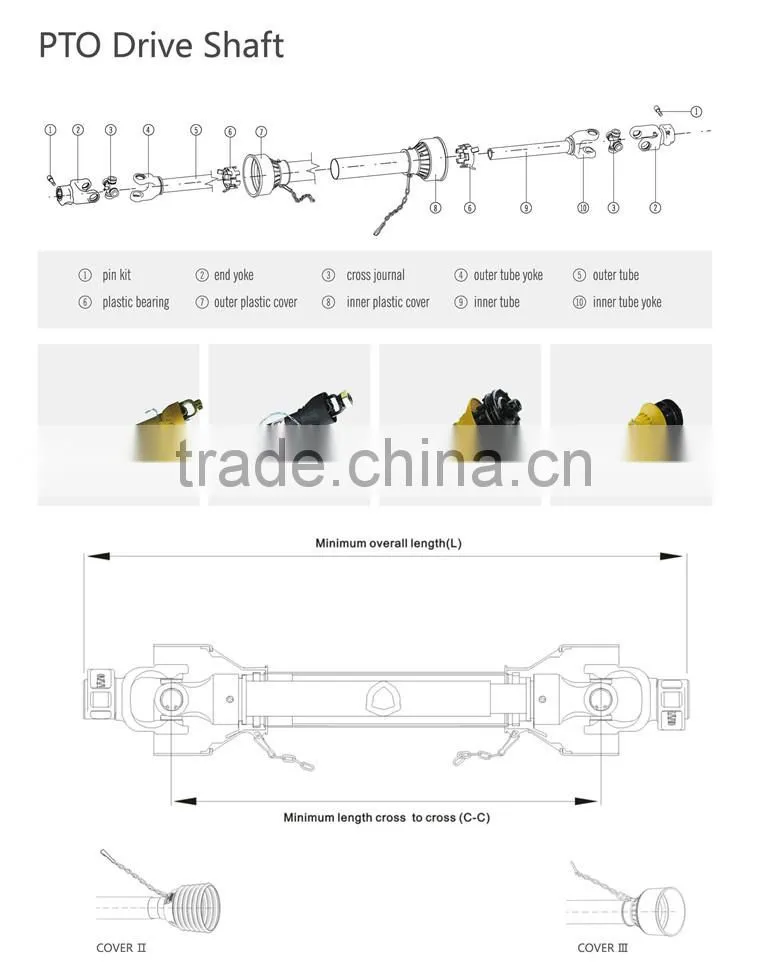

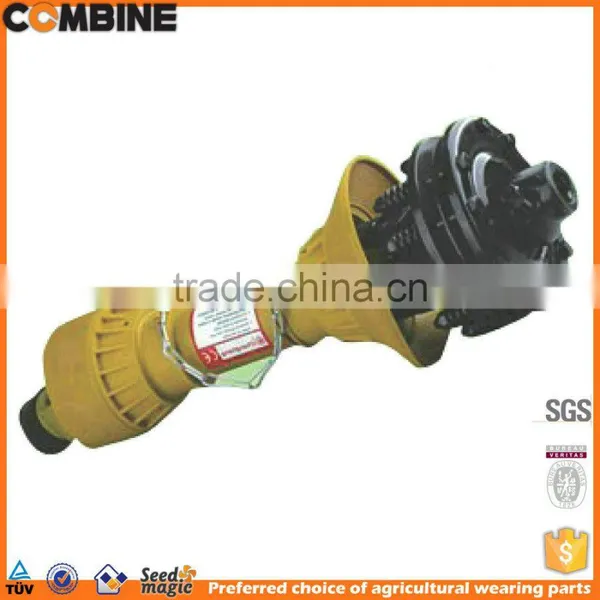

Pto driven generator:
Cross journal(mm) | 22*54, 23.8*61.3, 27*70, 27*74.6, 30.2*80, 30.2*92, 30.2*106.5, 35*94, 35*106.5 etc |
Type of tube | Triangular tube, Lemon tube, straw tube |

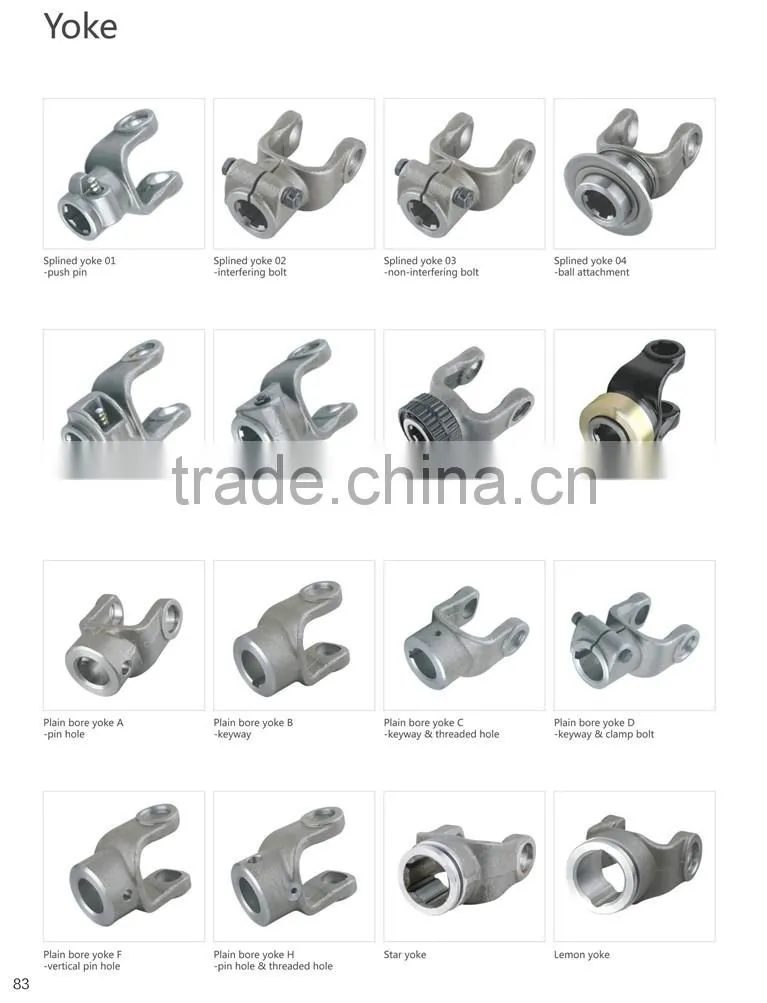

Type of yoke | 1 3/8’’ Z6, 1 3/4’’ Z6, 1 3/8’’ Z21; 1 3/4’’ Z 20 |

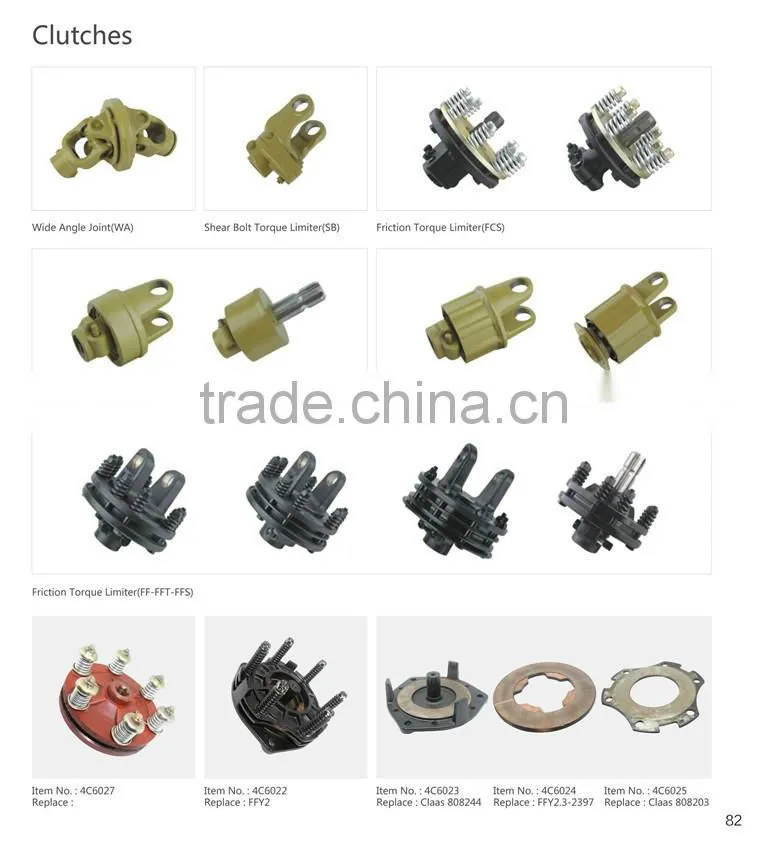

Type of Clutch | Wide angle joint, Shear Bolt Torque Limiter, Friction Torque Limiter, |
Color of surface | Yellow or Black Painting |
Angle of universal joint | <=25° |
Package | Steel shelf |
Certificate | CE |

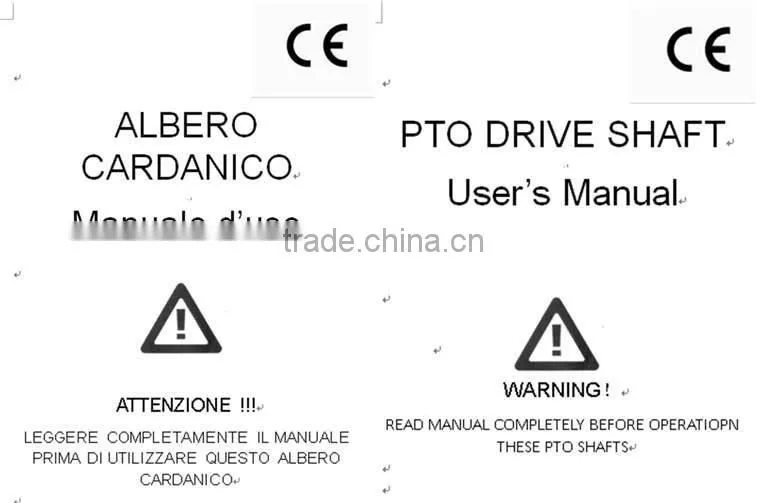

Manual | English, Italian Manual etc |
Other dvantage | Rilsan coating as require |
Agri show in Brazil 2014:
SERIES | POWER | |
540rpm | 1000rpm | |
1 | 12 KW (16 HP) | 18 KW (24 HP) |
2 | 20 KW (27 HP) | 30 KW (40 HP) |
4 | 26 KW (35 HP) | 40 KW (54 HP) |
5 | 34 KW (46 HP) | 55 KW (74 HP) |
6 | 47 KW (63 HP) | 74KW (100 HP) |
8 | 70 KW (94 HP) | 110 KW (147 HP) |
SERIES | TORQUE | |
540rpm | 1000rpm | |
1 | 210 Nm ( 1860 in lb) | 170 Nm (1500 in lb) |
2 | 270 Nm ( 2400 in lb) | 220 Nm ( 1950 in lb) |
4 | 460 Nm ( 4060 in lb) | 380 Nm (3360 in lb) |
5 | 620 Nm ( 5500 in lb) | 520 Nm (4600 in lb) |
6 | 830 Nm ( 7345 in lb) | 705 Nm (6240 in lb) |
8 | 1240 Nm ( 10975 in lb) | 1050 Nm ( 9293 in lb) |

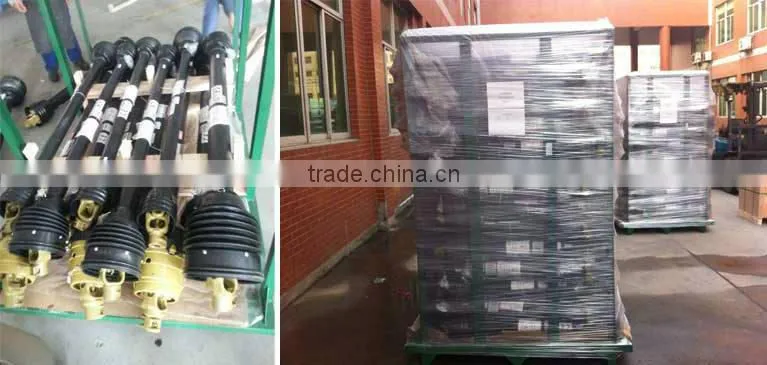

Packing:
|
|
|
1. We have been working internationally in the area of agricultu al parts and bearings since 2002 and have excellent knowledge,experience in the agricultural field. 2. We offer over 1000 different spare parts for a wide range of agricultural machinery, from combine harvesters, mowers,rakes to balers.They are used for various makes like John Deere, LAVERDA , New Holland and Case/IH. 3. Averagely we add at least five new items monthly to our production range. This wide supply and quick development are our big advantages over our competitors 4. “Quality”,“honesty”and“service” is our principle, we export to more than 56 countries at present, mostly to Europe.
|
Q1: Can i buy one of your products for Sample?
A:Yes,we can provide you sample as the bulk goods price ,and will send you BY DHL,FEDEX according to your requirements,or find the cheapest Forwards for you.
Q2; How could i know if the product suitable for my machine or not?
A: Tell me which product you are interested in pls ,i will give you the main sizes,or you can provide your drawings or samples,we will make according to your drawings.
Q3: I want to find a supplier for my new products,can you help me ?
A: yes,kindly offer me your drawings or samples for our analsis.
Q4: How long for your to make a new products ?
A: Usually 20-35days for the drawing ones and 35-60 days for the sampled ones. |
