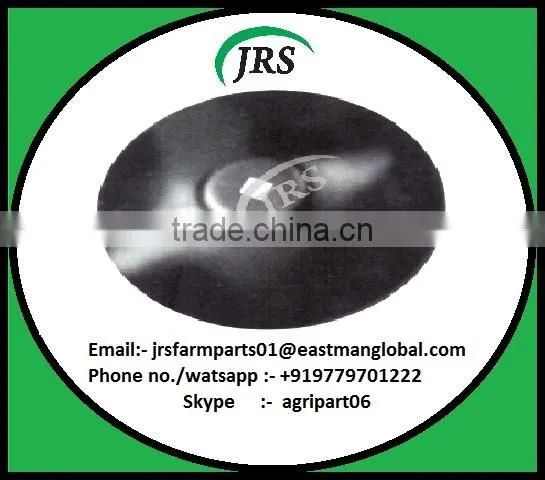

Help CenterPlain Harrow Disc With Hexagon Hole With Carbon Steel
Related Products
We JRS are manufacturer and exporters of harrow disc.
A disc harrow is a farm implement that is used to till the soil where crops are to be planted. Harrow disc is commonly used in Agriculture Implements like disc harrow & plough disc for cultivation of land. It makes the land smooth and suitable for weeding and It is also used to chop up unwanted weeds. We provide Harrow disc made up of three materials like Carbon Steel, Boron Steel & 65Mn.

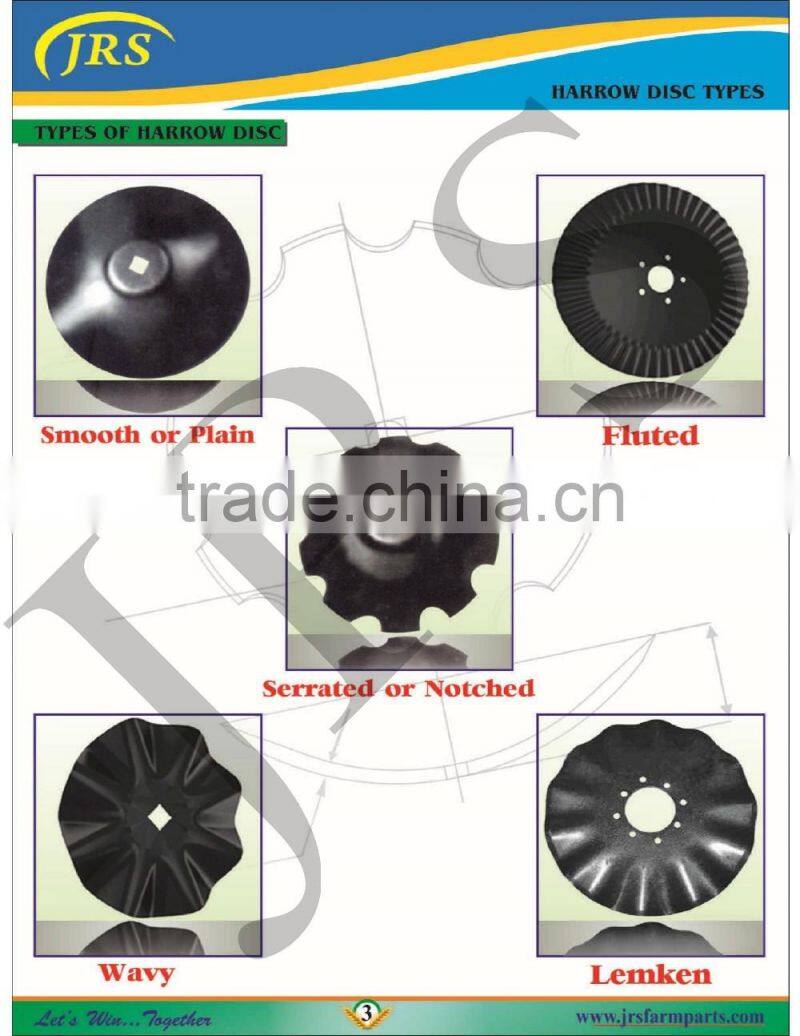

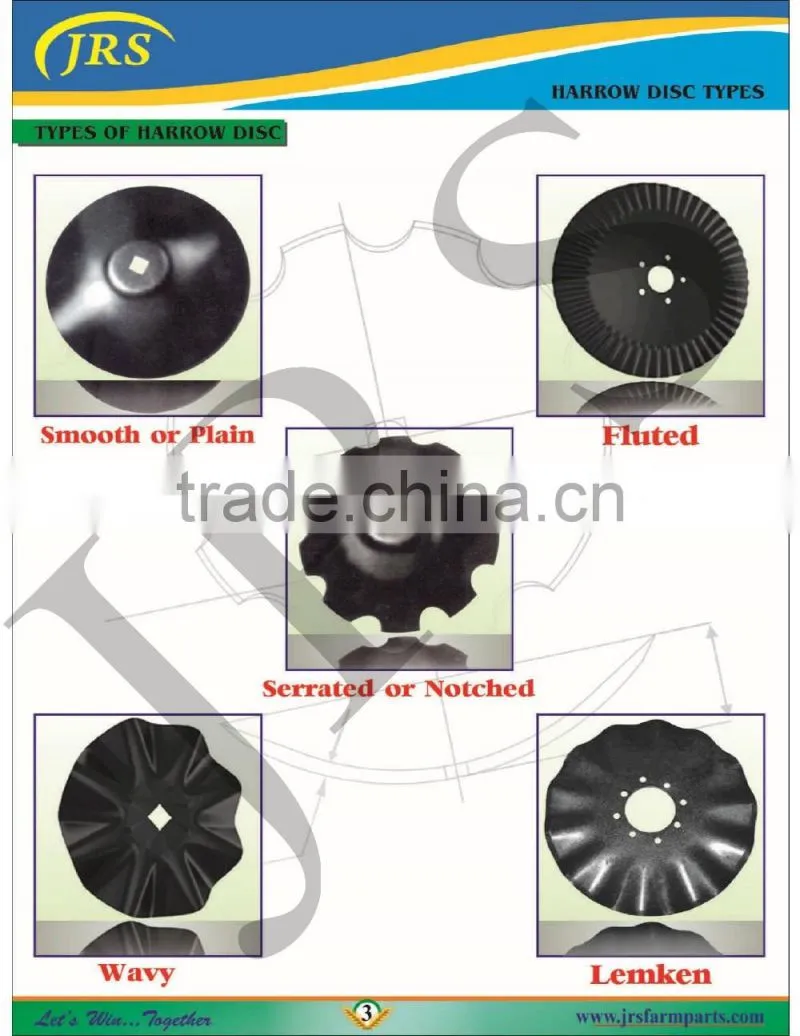

Harrow disc are available in different types.
1. Plain harrow disc
2. Notched harrow disc
Notched Harrow disc:- Notched disc harrow blades are able to penetrate the layers of soil in a better and more aggressive manner since there is a greater weight per inch of circumference between different blade notches

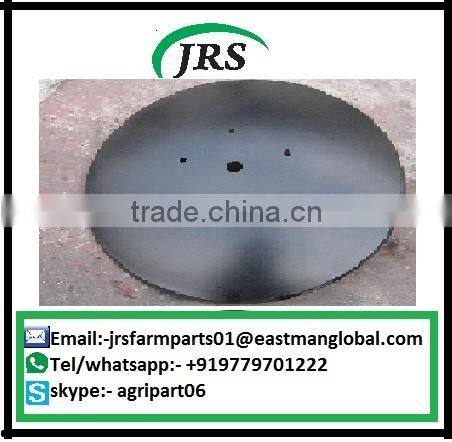

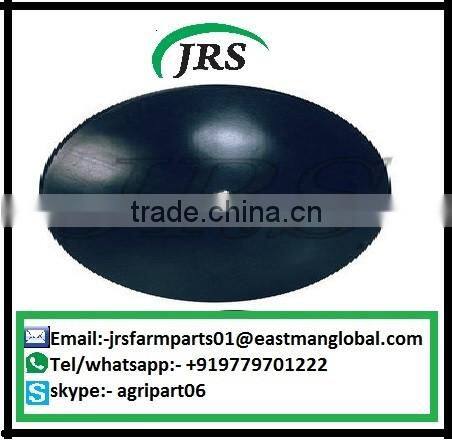

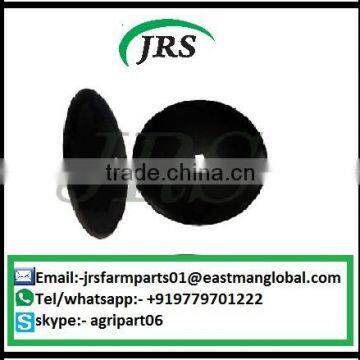

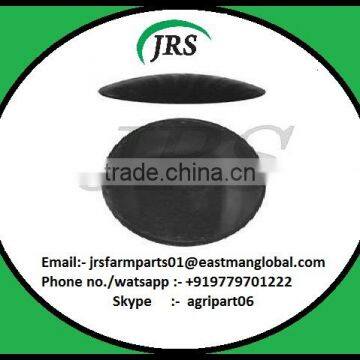

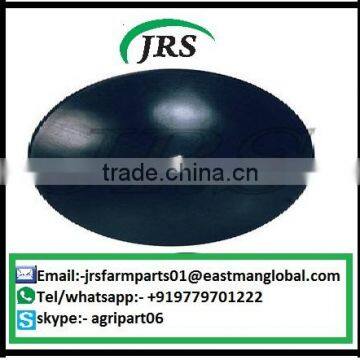

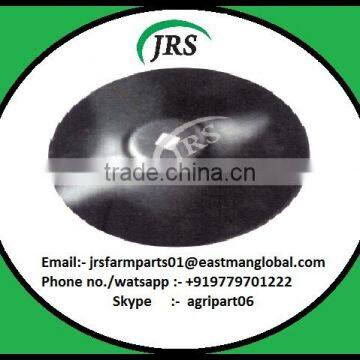

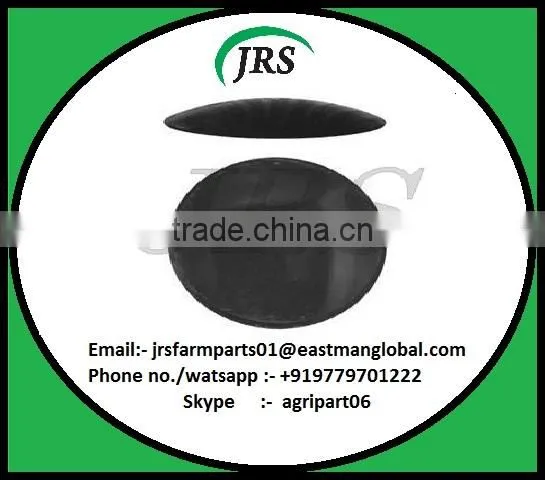

· Plain harrow disc:- Smooth discs are used for ploughing of soil, which turns outer layer of soil inside and extracts inner fine & fertile soil making growth of crops easier.

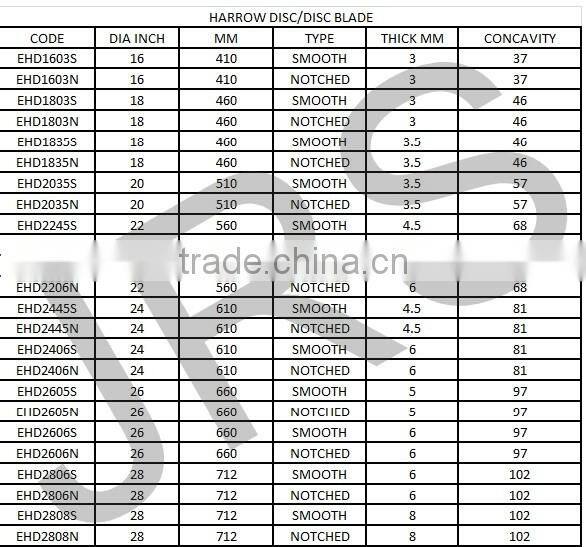

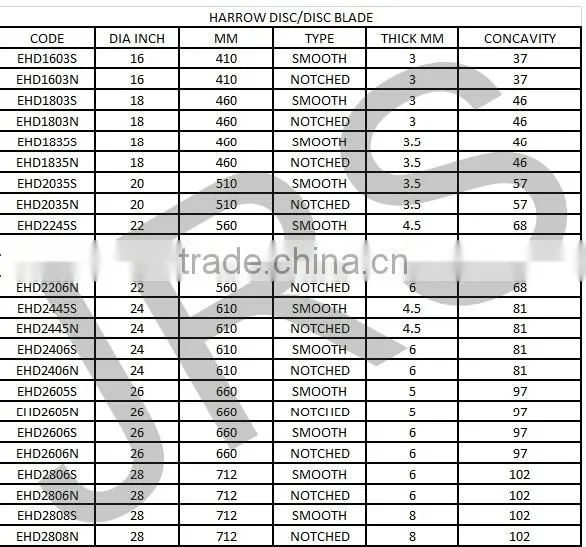

Specifications of harrow disc:
1.Offers an economical way of agricultural work
2.As handy tools it is a kind of rugged farm tool used for cultivating the soil where crops are to be embedded
3.Remove crop remainders and unwanted weeds
4.Generally used to chop off residue incorporating it into the top soil and break up virgin land eliminating clumps as well as loosening the soil packed
5.Helps to promote the prompt decay of dead plant materials
6.Perfect for using in dry, rigid and stumpy soil no matter what the land condition is
Compostions of harrow disc:-
A. BORON STEEL
STEEL | C | SI | MN | P | S | CR | B |
BORON | 0.32 | 0.33 | 1.160 | 0.034 | 0.025 | 0.34 | 0.0059 |
B.CARBON STEEL
STEEL | C | SI | MN | P | S | CR | CU |
CARBON | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.025 | ≤0.25 | ≤0.25 |
C. 65MN
STEEL | C | SI | MN | P | S | CR | CU |
65MN | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 |

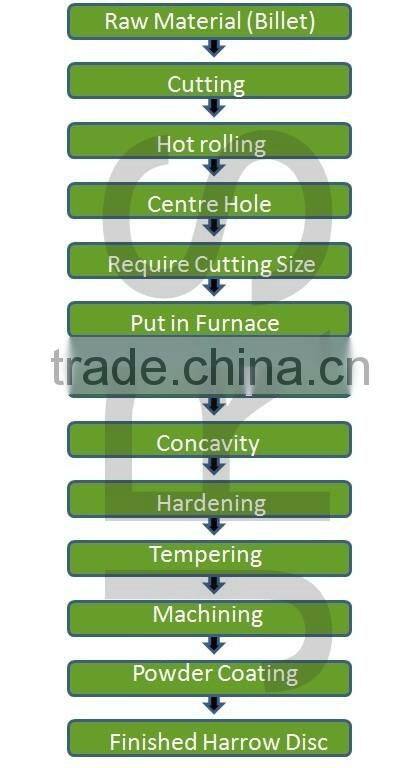

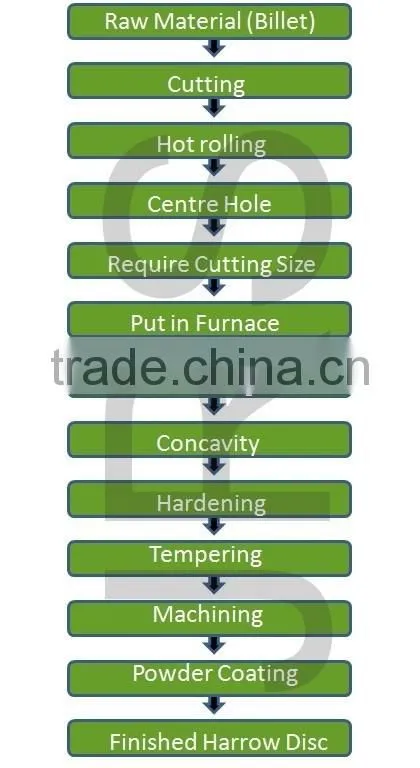

ma Manufacturing process

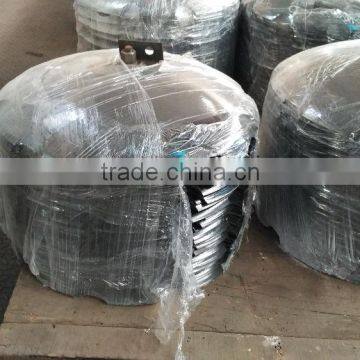

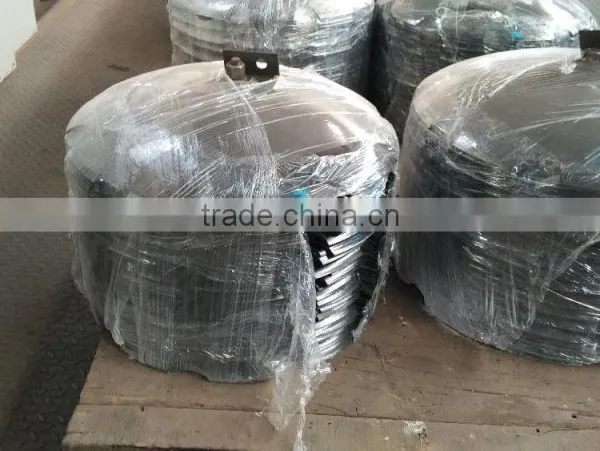

Packing details

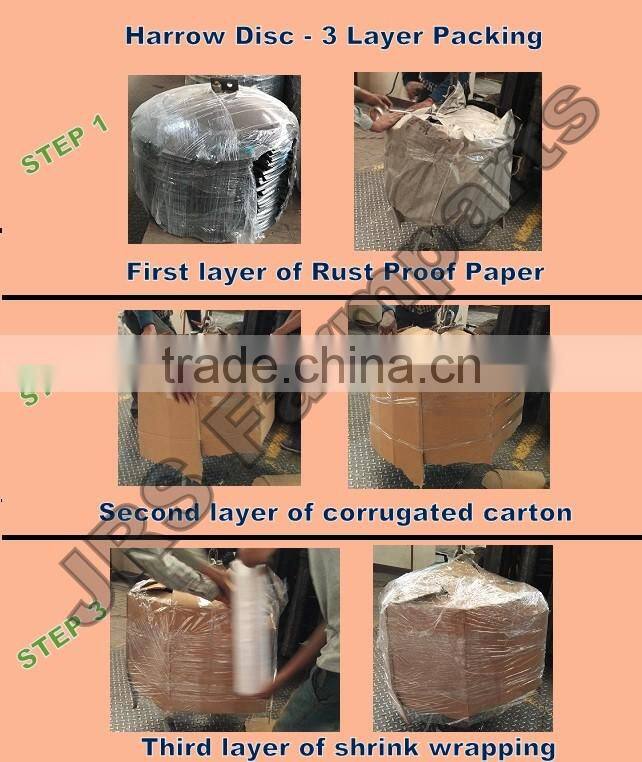

We give relief from tension to our customers by providing 3 layers of packing of harrow disc.
3 layers of packing as follow.
1.Packing is done in 50 bundle of pcs wrapped with Rust proof paper which help to protect harrow disc from rust while goods are on ship.
2. 2nd layer is of corrugated cartoons which help to protect the edges of harrow disc from collide with other bundle of harrow disc.
3. 3rd layer is packed with shrink paper which is final packing to provide extra strength to bundle.
1. Good after sales service. Any small problem happening will be solved at the most prompt time;
2. Many years of export experience;
3. Specifications list is available upon your request
4. Welcome to send enquiry, we will reply soon.
5. Prompt shipment with professional documents
6. Custom packing, with photo before shipment
7. High quality and competitive price.
We JRS Farmparts are manufacturers of a wide range of Agriculture Implements. We are a USD 150 million group exporting from last 37 years and have successfully added 150 satisfied clients in our list. We are an ISO 9001:2008 certified company, engaged in supplying high quality implements to our clients with these facilities:
Q1.How can I trust your company?
Ans. We are manufacturer and exporters of harrow disc. We are widely exporting harrow disc from last 35 years. JRS is choice amongst 40 countries around the world like USA, Latin America, Russia, Europe etc. We have made a strong presence in overseas market. Our company is certified to ISO 9001:2008. We use best quality of raw material and sustainable engineering design for manufacturing of harrow disc for ensuring quality.
Q2. What is the delivery time of disc harrow?
Ans. Harrow disc is delivered within 30-40 days after order confirmation.
Q3 what about material of harrow disc?
Ans. We provide harrow disc in three types of material:-
1. Boron steel
2. Carbon steel
3. 65Mn
Q4. How packing is done of disc blade?
Ans. Packing of harrow disc is done in 50 pcs of bundle with rust proof paper, Corrugated cartoons and finally with shrink poly bag.
Q5. What are the payments terms?
Ans. 30% advance and balance against faxing copy of bill of lading.
Q6. How can I trust your quality?

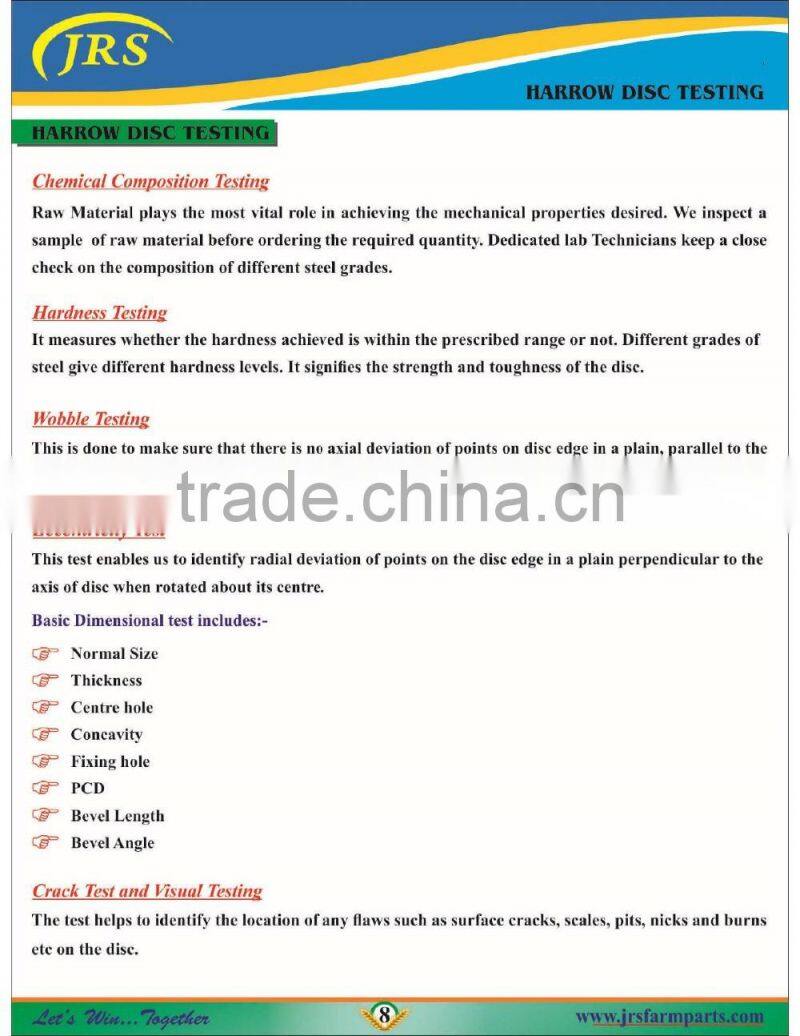

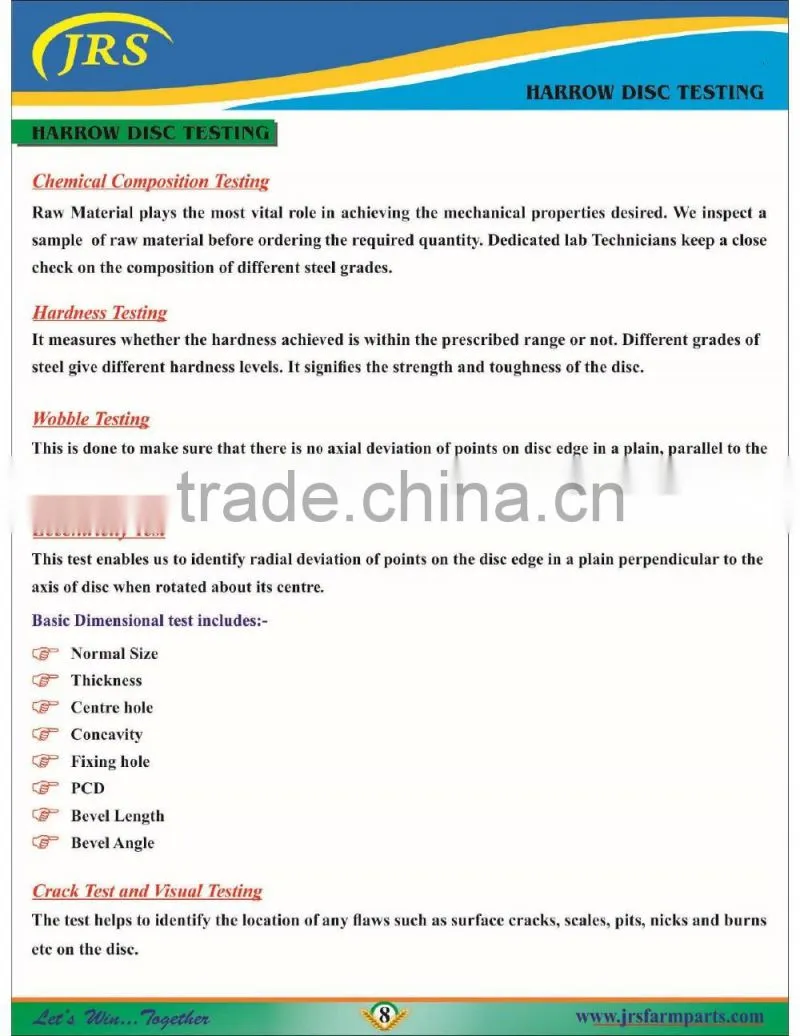

Ans. We use best raw material and with the help of engineers design we manufacture our disc to ensure good quality. We have technically updated equipments to check quality of disc blade before production and after production. We provide the test reports to our customers in order to build confidence in them.
Q7. At which port you usually ship the goods?
Ans. Indian port.
Q8. Do you provide sample of disc harrow?
Ans. Yes, we provide samples of harrow disc. Samples are free but transportation cost is borne by client.
Q9. What is minimum order quantity?
Ans. Our minimum order quantity is 100 psc.
Q10. Can you provide customized packing of harrow disc?
Ans. Yes, we provide packing according to customer needs also.
Q11. What benefits you will bring if I buy harrow disc from you?
Ans. 1. You can get harrow disc in three types of material from 1 company.
2. We deliver goods in 30 days.
3. We provide 1 year guarantee of goods.
