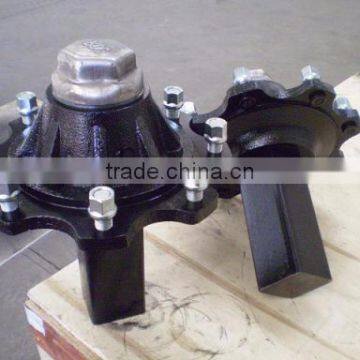

Off Road Trailer Stub Axle

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Parts:

Trailer Axles, Trailer Axler

Max Payload:

8000kg

Size:

80*80

Qingdao J & G International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Max Payload 8000kg

Size 80*80

Place of Origin Shandong, China

Brand Name OEM

Model Number 808X Stub Axle

Off Road Trailer Stub Axle

1. IS0/TS 16949 Certificate

2. Italian and French Technolgy

3. Track Length: customed

4. Load Capacity Option: From 1.5MT to 13MT

5. With brake is optional

6. Beam: From 40mm to 150mm

Data of Unbrake Axle

Refrence	Beam	CBD	PCD	Studs Nos	Stud Size	Bearing(out)	Bearing(in)	Max Load Capacity Single Axle( 25km/h)
404F	40*40	84	130	4	M14*1.5	30205	30207	1500kg
405F	40*40	93	140	5	M16*1.5	30205	30207	1500kg
505F	50*50	93	140	5	M16*1.5	30205	30209	3000kg
505A	50*50	93	140	5	M16*1.5	30206	30209	3000kg
506A	50*50	160	205	6	M18*1.5	30206	30209	3000kg
506X	50*50	160	205	6	M18*1.5	30206	30209	3000kg
606X	60*60	160	205	6	M18*1.5	30207	30211	4800kg
706X	70*70	160	205	6	M18*1.5	30209	30213	6500kg
806X	80*80	160	205	6	M18*1.5	32211	30215	8000kg
808X	80*80	220	275	8	M18*1.5	32211	30215	8000kg
906X	90*90	160	205	6	M18*1.5	32211	32217	10000kg
908X	90*90	220	275	8	M18*1.5	32211	32017	10000kg
908XR	90*90	220	275	8	M18*1.5	32217	32217	10700kg
910XR	90*90	280	335	10	M22*1.5	32217	32217	10700kg
1008X	100*100	220	275	8	M18*1.5	32217	32217	13000kg
1010X	100*100	280	335	10	M22*1.5	32217	32217	13000kg
1010XR	100*100	280	335	10	M22*1.5	32219	32219	13000kg
1110X	110*110	280	335	10	M22*1.5	32219	32219	13000kg
1210X	120*120	280	335	10	M22*1.5	32219	32219	13000kg
1510X	150*150	280	335	10	M22*1.5	32219	32219	13000kg
