Auto Spare Parts Adjustable Ball and Socket Joint
- Port in China
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | GUANJIE | |
| Model Number | QI series |
Product Description
Specifications
Ball Stud:Low carbon steel,case hardened for extended wear life,zinc plated, yellow dichromate treated

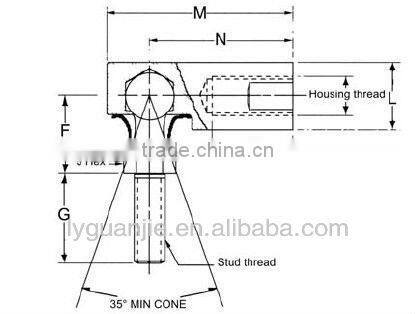

adjustable ball and socket joint / auto spare parts
Part No. | Housing Thread | Stud Thread | F | G | J | L | M | N | P |
ES187 | 10-32 | 10-32 | 0.438 | 0.438 | 0.313 | 0.375 | 1.063 | 0.875 | 0.438 |
ES250 | 1/4-28 | 1/4-28 | 0.469 | 0.563 | 0.375 | 0.438 | 1.219 | 0.969 | 0.500 |
ES312 | 5/16-24 | 5/16-24 | 0.531 | 0.688 | 0.438 | 0.500 | 1.406 | 1.125 | 0.563 |
ES375 | 3/8-24 | 3/8-24 | 0.688 | 0.875 | 0.500 | 0.625 | 1.688 | 1.375 | 0.750 |
ES438 | 7/16-20 | 7/16-20 | 0.875 | 1.125 | 0.625 | 0.750 | 2.375 | 1.938 | 1.000 |
ES500 | 1/2-20 | 1/2-20 | 0.875 | 1.125 | 0.625 | 0.750 | 2.375 | 1.938 | 1.000 |
ES625 | 5/18-18 | 5/18-18 | 1.000 | 1.125 | 0.750 | 0.875 | 2.578 | 2.063 | 1.000 |
1.Ball Stud:Low carbon steel,case hardened for extended wear life,zinc plated, yellow dichromate treated
2. Body:Low carbon steel,zinc plated, yellow dichromate treated.
- Alternative: stainless steel.
- Unless otherwise specified,all dimensions are in inches.
3.Special request upon drawing or samples.
