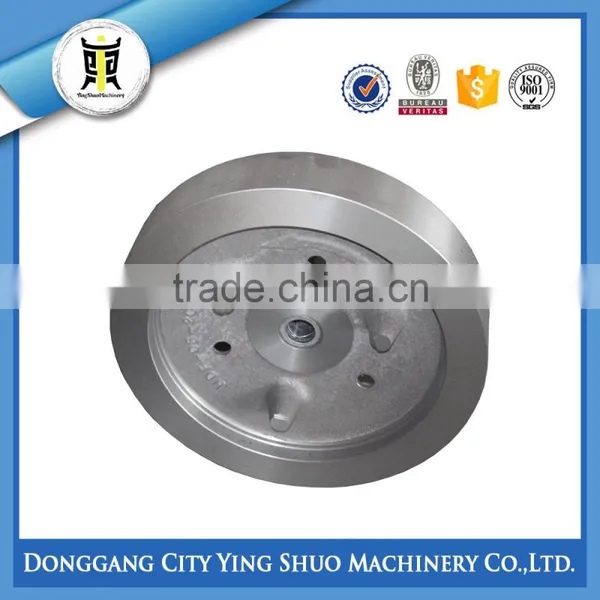

OEM sand casting pulley wheel ht200 gray iron casting
OEM sand casting pulley wheel ht200 gray iron casting
No matter what type of iron castings you need done, we’re the right supplier for the job. We can do Five types of castings – Sand casting, clay sand casting, furan resin sand casting, shell mold casting and v-method casting.
Our products include Wear-resistant parts, Heat resistant parts, Structural parts, Cylinder parts, Agricultural machinery parts, Lathe body, Flange, Furnace parts, Machine parts, Wheel, Pipe fittings, Pump parts, Valve parts, etc.
Welcome to visit our website
Material |
Iron, cast iron, ductile iron, gray iron |
Casting Process |
Sand casting, clay sand casting, furan resin sand casting, shell mold casting, v-method casting |
Equipment of Casting |
3 production lines, 6 NC lathe, 2 CNC machining center, 10 drilling machine, 2 milling machine, etc |
Tolerance |
casting:0.5mm, machining:0.05mm, finish machining:0.005mm |
Surface Treatment |
Painting, polishing, powder coating, zinc plating, chrome plating,heat treatment etc |
Testing facility |
spectrometer, tensile test machine, hardness test machine, low temperature impact test machine, CMM dimension report |
Certificate |
ISO 9001:2008 |
Standard |
ASTM, DIN,JIS, EN, ISO, GB standards |
Software |
Pro/E,UG, Solidworks, Auto CAD, PDF |
Precision machining |
CNC turning, milling, drilling, grinding, cutting, reaming and threading |
| Finished | Polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, Chrome plating. |
Mainly Products |
All kinds of iron castings: include Wear-resistant parts, Heat resistant parts, Structural parts, Cylinder parts, Agricultural machinery parts, Lathe body, Flange, Furnace parts, Machine parts, Wheel, Pipe fittings, Pump parts, Valve parts, etc |
Advantage |
1.With more than 16years experiencesin Iron casting; 2.Have Five casting types; 3.Near Sea Port and Air Port : Our nearest Port is Dalian, it takes one and half hour from Dalian station to our factory(Donggang City) by fast train. 4.Passed ISO9001:2008 5.From Casting to Finished surface, Owned casting, polishing and plating workshops. We can offer Good quality and strict delivery time. 6.With samples and order: We can offer dimension report, Chemical composition and Mechanical properties 7.Control material with spectral and thermal analysis equipment (density and processing) 8.Spectral analysis of raw material and liquid melt, batch before casting.
|
Inspection |
1.Foundry in-house |
| 2.Third Party inspection available upon requirement | |
| Packing |
Carton Box with Pallet/Wooden Box/Steel Pallet |
Ductile Iron Casting Material Comparison Table :
|
Cast iron with nomular graphite DIN EN 1563 |
Germany DIN 1693 |
France NF |
Great Britain BS |
Netherlands NEN |
Sweden MNC |
USA ASTM A536 |
| EN-GJS-350-22-LT | GGG-35.3 | FGS 370-17 | 370/17 | GN 38 | 0717-15 | ---- |
| EN-GJS-400-18-LT | GGG-40.3 | ---- | ---- | ---- | ---- | 60-40-18 |
| EN-GJS-400-15 | GGG-40 | FGS-400-12 | 420/12 | GN 42 | 0717-02 | 60-40-18 |
| EN-GJS-400-10 | ---- | ---- | 420/12 | ---- | ---- | 65-45-12 |
| EN-GJS-500-7 | GGG-50 | FGS-500-7 | 500/7 | GN 50 | 0727-02 |
65-45-12/ 80-55-06 |
| EN-GJS-600-3 | GGG-60 | FGS-600-3 | 600/3 | GN 60 | 0732-03 | 80-55-06 |
| EN-GJS-700-2 | GGG-70 | FGS-700-2 | 700/2 | GN 70 | 0737-01 | 100-70-03 |
| EN-GJS-800-2 | GGG-80 | FGS-800-2 | 800/2 | 120-90-02 | ||
| EN-GJS-1000-5 (DIN EN 1564) | GGG-100B/A | ---- | ---- | ---- | ---- | 850-550-10 |
| EN-GJS-AX NiSiCr35 5 2 |
GGG- NiSiCr 35 5 2 |
FGS- Ni35Si5Cr2 |
S5S | ---- | ---- | Type D-5S |
Grey Iron Casting Material Comparison Table:
|
Cast iron with lamellar graphite DIN EN 1561 |
Germany DIN 1691 |
France NF |
Great Britain BS |
Netherlands NEN |
Sweden MNC |
USA ASTM A48 |
| EN-GJL-150 | GG-15 | Ft 15 D | Grade 150 | GG 15 | 01 15-00 | 20 B / 25 B |
| EN-GJL-200 | GG-20 | Ft 20 D | Grade 180/220 | GG 20 | 01 20-00 | 25 B / 30 B |
| EN-GJL-250 | GG-25 | Ft 25 D | Grade 220/260 | GG 25 | 01 25-00 | 35 B / 40 B |
| EN-GJL-300 | GG-30 | Ft 30 D | Grade 300 | GG 30 | 01 30-00 | 40B / 45 B |

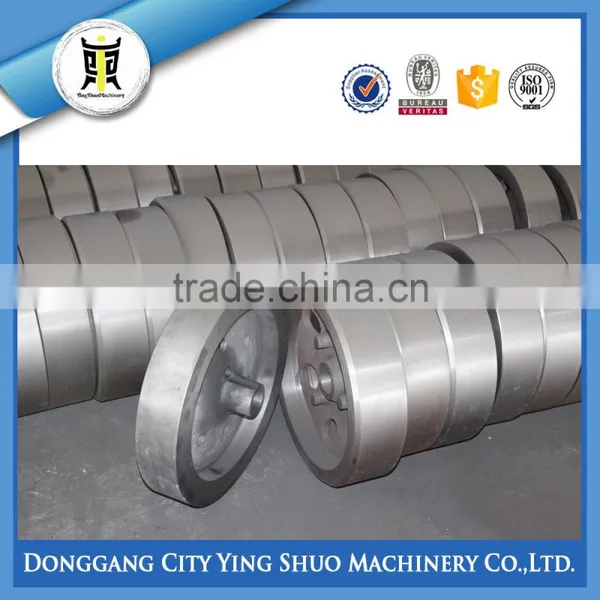

High quality belt drive system parts cast iron pulley wheels
CUSTOM SAND CASTING SERVICE CAST IRON ROPE PULLEY WHEELS
packging of high quality CUSTOM SAND CASTING SERVICE CAST IRON ROPE PULLEY WHEELS

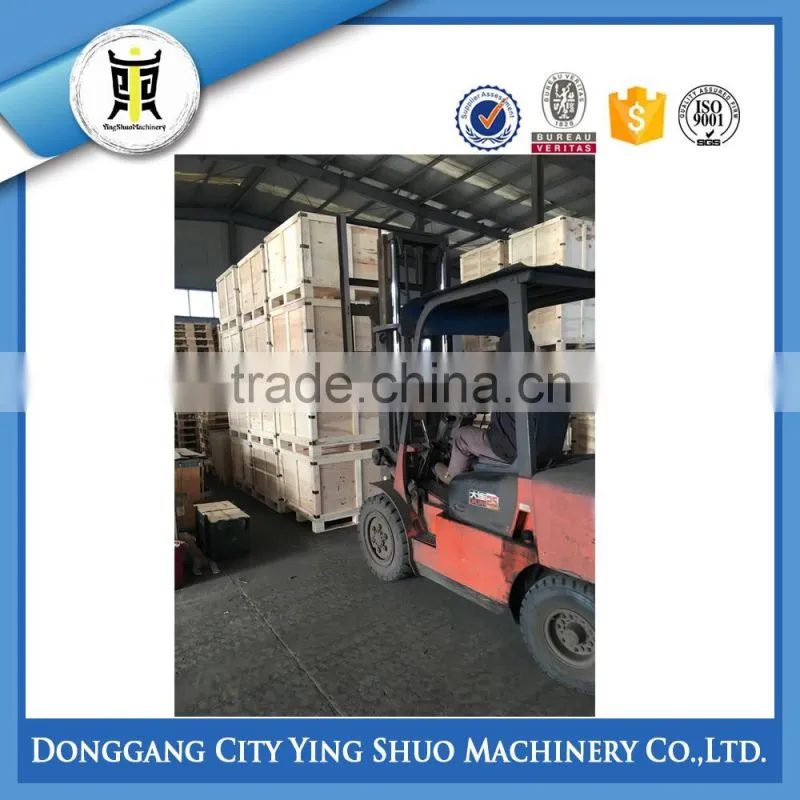

Plywood box, iron box, stretch-wrap and pallet. We make the good control of the standard export packaging by both air and ocean shipment. Prevent rust and damage of cast iron parts. We have the fast delivery time, it takes three hours from our foundry to Dalian port.
manufacturer of high quality CUSTOM SAND CASTING SERVICE CAST IRON ROPE PULLEY WHEELS
High quality belt drive system parts cast iron pulley wheels
1.Are you a manufacturer or trading company?Do you have your own factory?
We are a professional manufacturer with over 8 years’ export experience for designing and producing.Yes, we have two of our own factories.An iron casting factory and a steel casting factory.
OEM sand casting pulley wheel ht200 gray iron casting
2.How can I get some samples?
If you need,we will offer you samples for free,but new customers are expected to pay express charge.
OEM sand casting pulley wheel ht200 gray iron casting
3.Do you provide customized parts?
Yes, customers give us drawings and we will manufacture accordingly.
OEM sand casting pulley wheel ht200 gray iron casting
4.Can you make castings based on our sample?
Yes,we can make measurement based on your samples to make drawings.
OEM sand casting pulley wheel ht200 gray iron casting
5.I can’t see the goods or tough the goods,how can I deal with the risk involved?
OEM sand casting pulley wheel ht200 gray iron casting
We are 6 years Gold Supplier of Alibaba.We have established the quality management system conforming to ISO 9001:2008.We are absolutely worth your trust.
OEM sand casting pulley wheel ht200 gray iron casting
......More questions welcome to contact with us.
OEM sand casting pulley wheel ht200 gray iron casting
