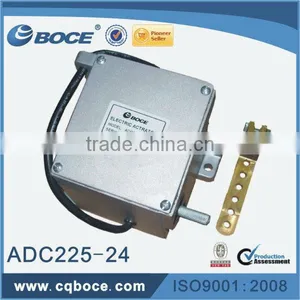

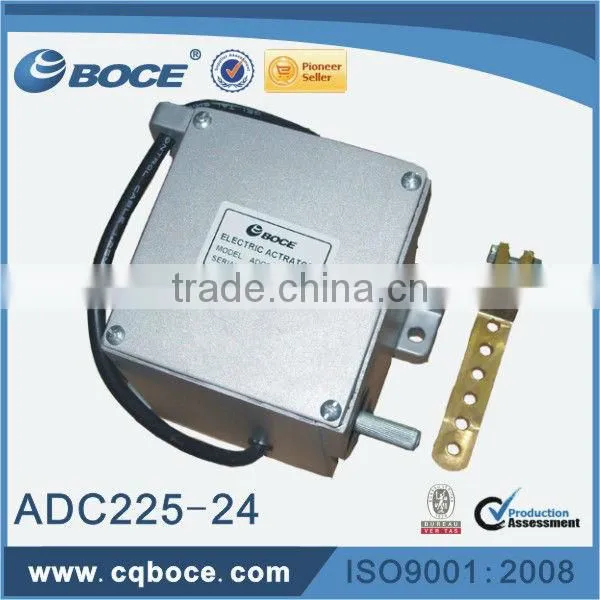

BOCE Actuator ADC225-24V
Actuator ADC225
SPECIFICATIONS
PERFORMANCE: | |
Available Torque: |
Max1.0Lb-ft(1.4Nm) |
Maximum Operating Shaft Angular Travel: |
25+1° CW/CCW |
POWER INPUT: | |
Operating voltage: |
12/24V DC |
Normal Operating Current: |
2 A at 12V DC,1A at 24V DC |
ENVIROMENTAL: | |
Temperature Range: |
-54 to 95°c |
Relative Humidity: |
up to 100% |
All Surface finishes: |
Fungus proof and corrosion resistant |
PHISICAL: | |
Weight: |
3.75 kg |
Mounting: |
Any position, electrical connector at the top preferred |
RELIABILITY: | |
Vibration: |
up to 20G @50-500 Hz |
Testing: |
100% Tested |
MATING HARDWARE: | |
Connector: |
Supplied With Actuator |
Lever: |
LE1500-2 |
Rod End Bearings(to attach a 12#20 HD linkage rod to lever): |
BR200(Right Hand) |
BR201(Right Hand) | |
Wiring Harness HD225: |
supplied with actuator |
For more information, please feel free to contact me.
