generator controller 501K control module
generator controller 501K control module

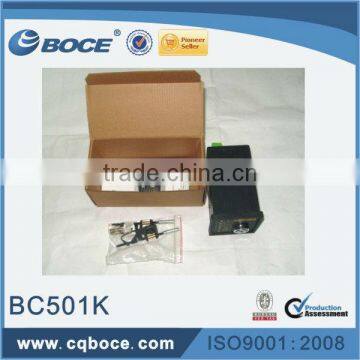

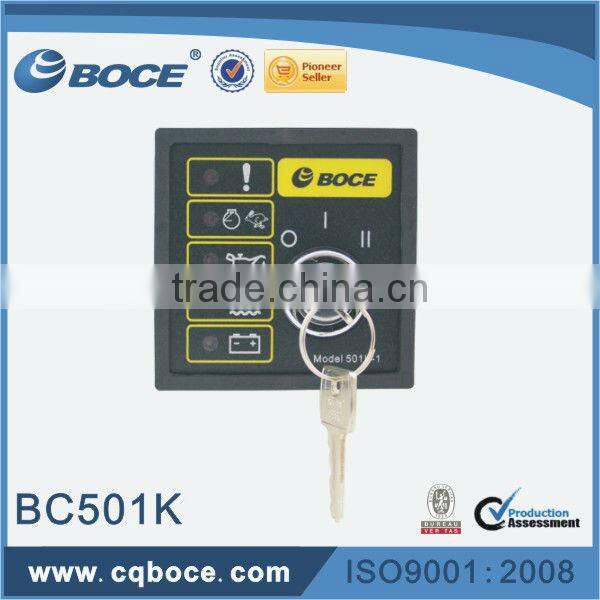

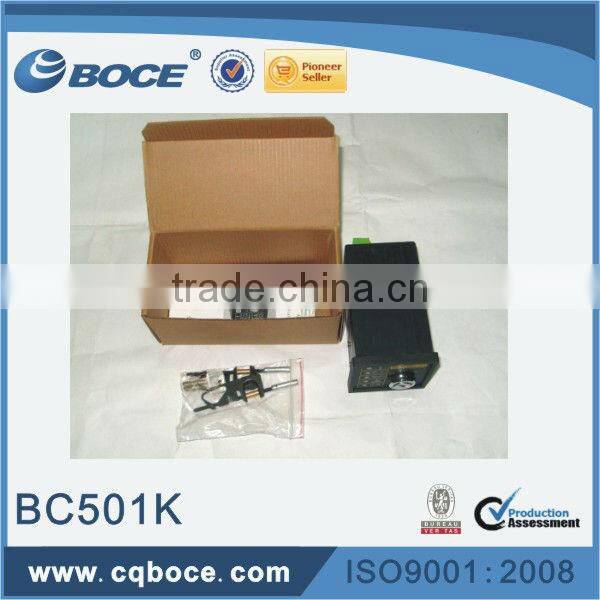

The model 501K is a Manual Engine Control Module, which is designed to manually control the engine via a key switch on the front panel. The module is used to start and stop engine, indicating fault conditions, automatically shutting down engine and indicating engine failure by LED giving true first up fault annunciation.
SPECIFICATION
DC Supply: |
9 to 33 V Continuous. |
Cranking Dropouts: |
Able to survive voltage dips during cranking. This is achieved without the need for internal batteries. |
Alternator Input Range: |
15 - 305 V AC RMS |
Alternator Input Frequency: |
50 - 60 Hz at rated engine speed. |
Magnetic Input Range: |
0.5 V to +/- 80 V |
Magnetic Input Frequency: |
2300Hz to 6000 Hz at rated engine speed. |
Start Relay Output: |
16 Amp DC at supply voltage. |
Run Relay Output: |
16 Amp DC at supply voltage. |
Alarm Output: |
1 Amp DC at supply voltage. |
Dimensions: |
72 X 72 X 118.5 (Excluding Key-switch) |
Operating Temperature Range: |
-30 to +70°C |
Installation: |
Front panel mounting via suitable cut-out. Retaining clips supplied. Cable connections via locking plug and socket type connectors. |
Calibration: |
Speed trip setting and meter calibration adjustment potentiometer are accessible from the rear of the module. |
We provide other models of generator controllers:
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |
| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-DS(PC) |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710(PC) |
| 23 | Generator controller | BC720(PC) |
